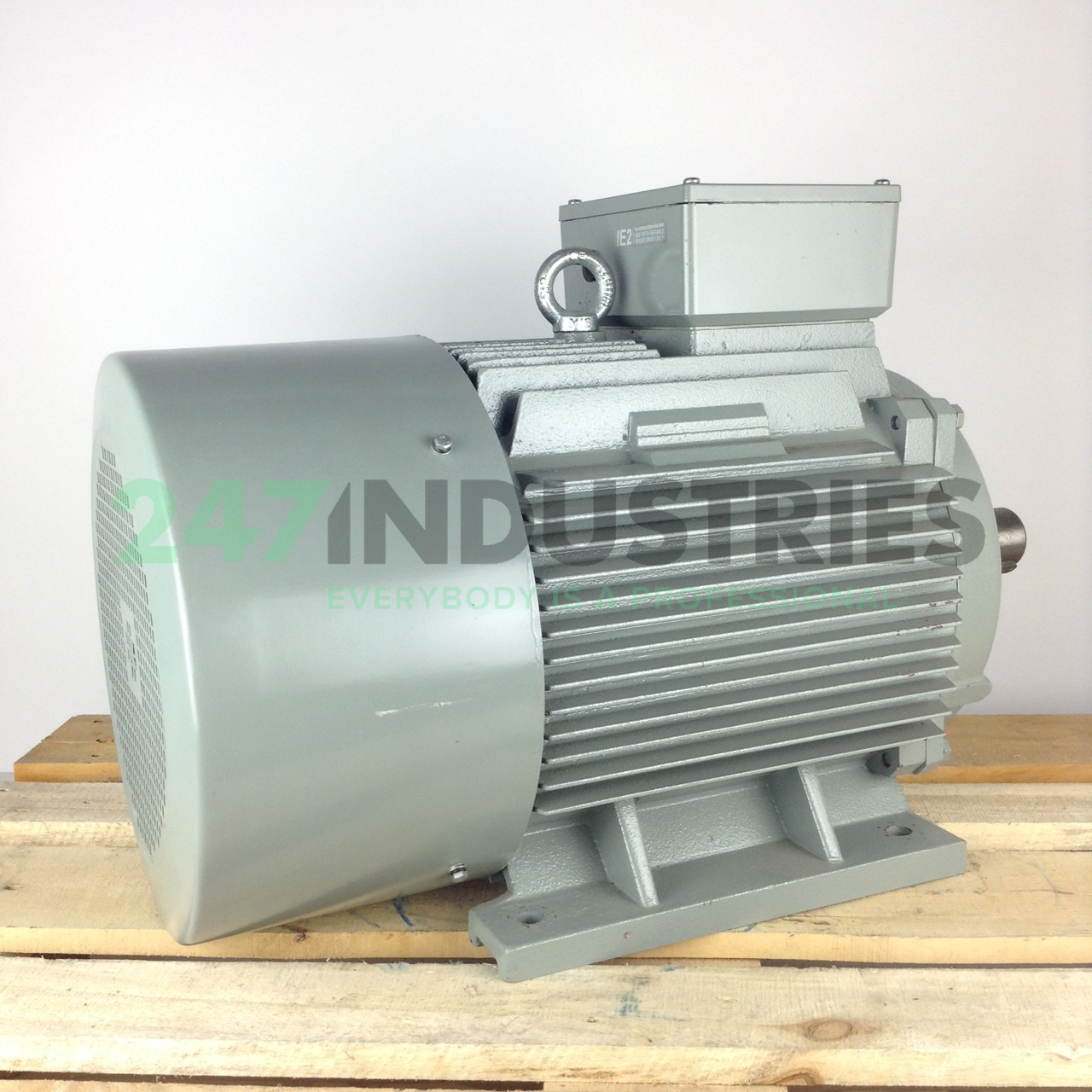

ZAH200L-4/HE-B3 Ziehl-Abegg

Technical details

1. Availability 0 pcs
2. Brand Ziehl-Abegg
3. Item number ZAH200L-4/HE-B3 Ziehl-Abegg
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 270

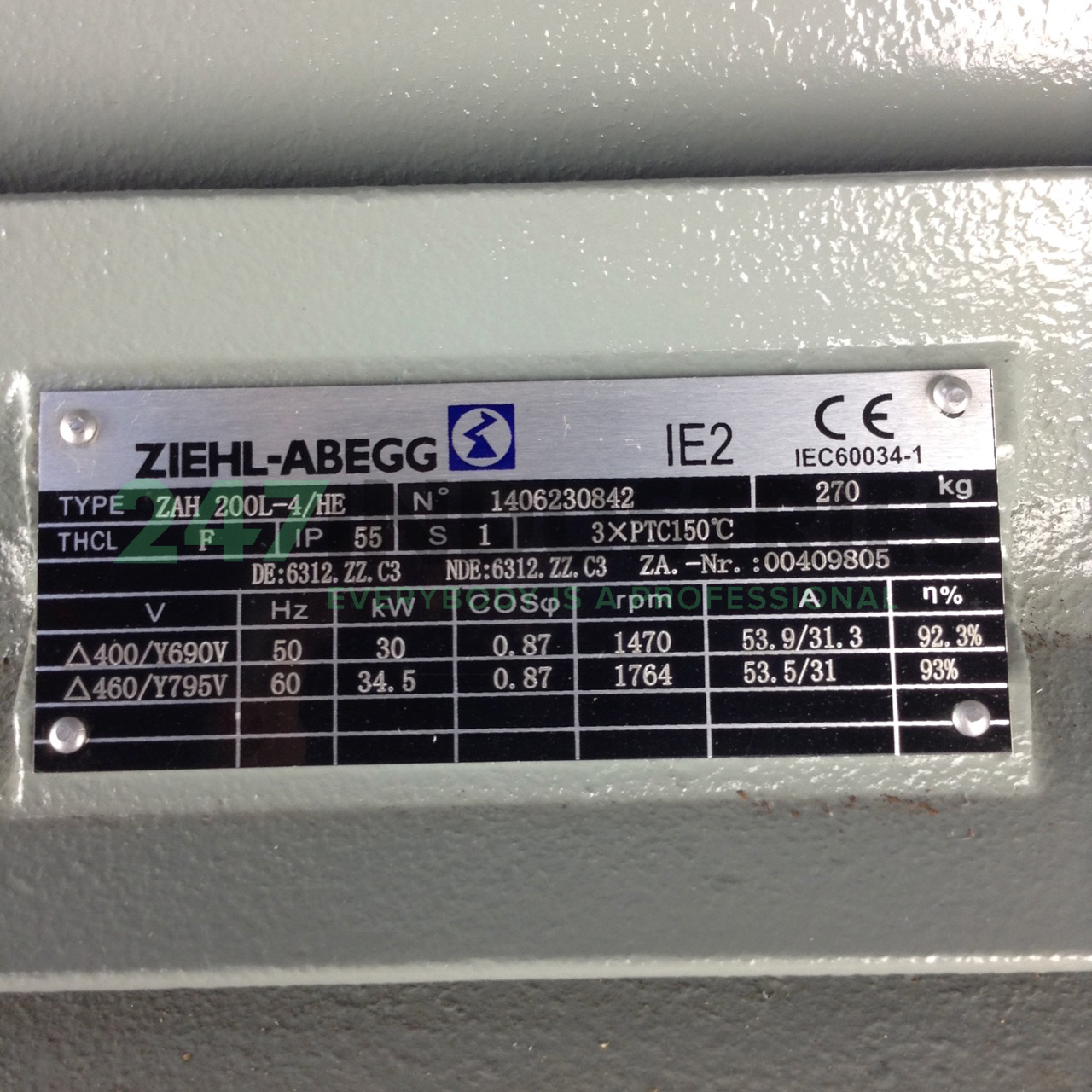

Product Properties

1. Rated power (kW) 30
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50/60 Hz
4. Energy efficiency IE2 = High = EFF1
5. Mounting B3 / 1M1001 (foot)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 200

Detailed Product Properties

1. Voltage 380-400VD / 660-690VY
2. IEC Framesize 200

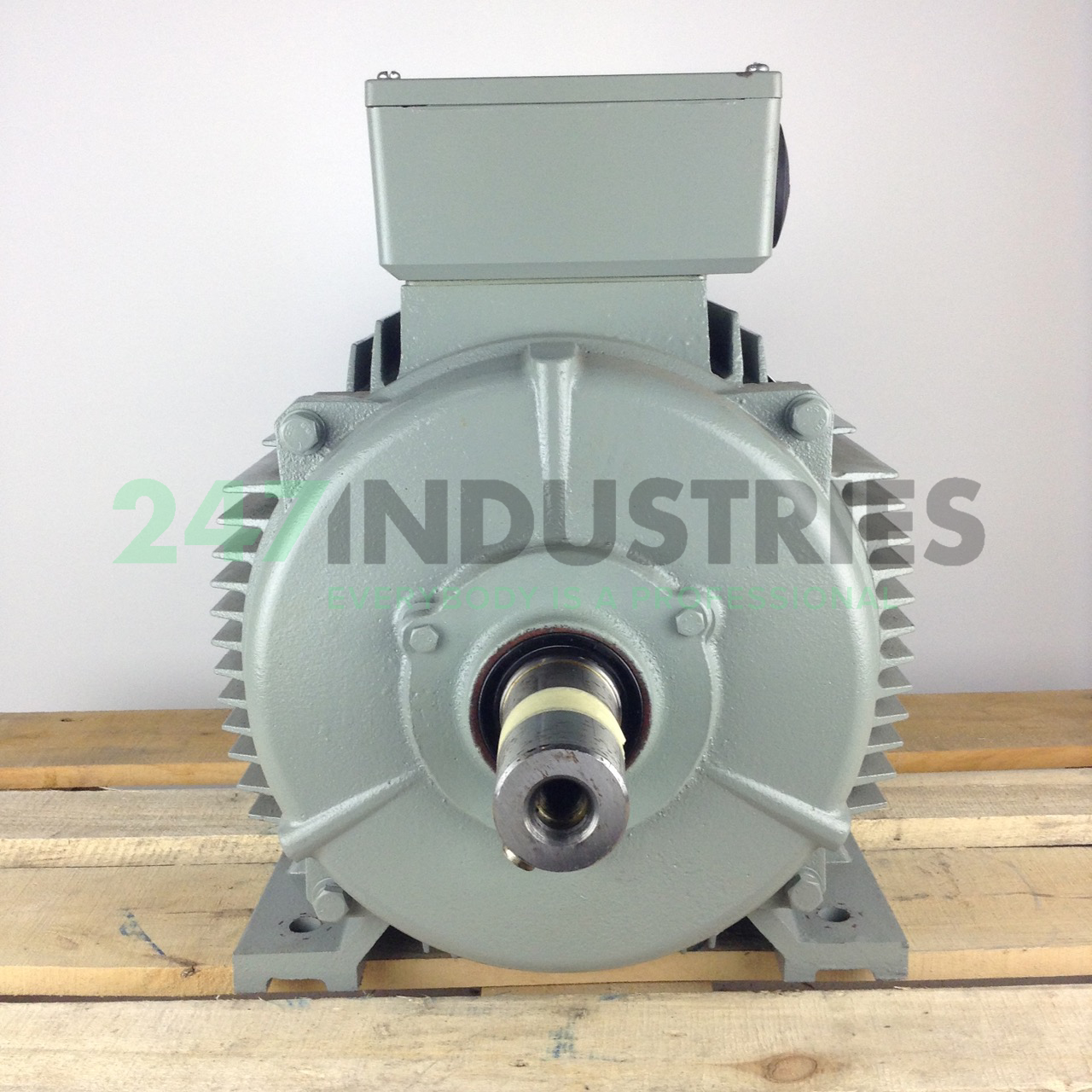

3. Shaft diameter (mm) 55
4. Housing material Cast Iron
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 200
8. Shaft length (mm) 110
9. Shaft key width (mm) 16
10. Shaft key length (mm) 100
11. Thread shaft bore M20
12. Shaft height, B3 mounted (mm) 200
13. Width foot holes, B3 mounted (mm) 318
14. Length foot holes, B3 mounted (mm) S=286, M=311
15. Diameter foot holes (mm) 19
16. Outer diameter flange B5/V1/B35/V3 (mm) 400
17. Spigot B5/V1/B35/V3 (mm) 300
18. Pitch circle diameter B5/V1/B35/V3 (mm) 350
19. Number of flange holes 4
20. Diameter flange holes B5/V1/B35/V3 (mm) 18.5
