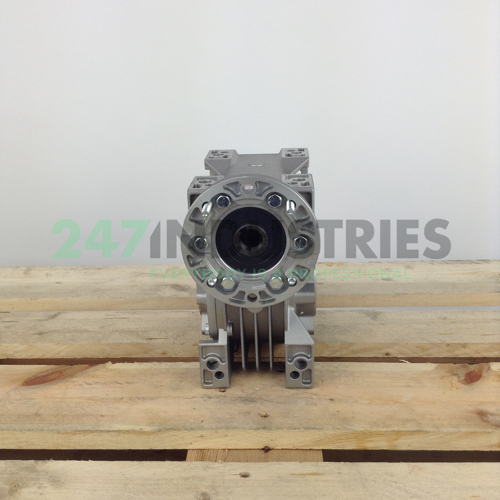

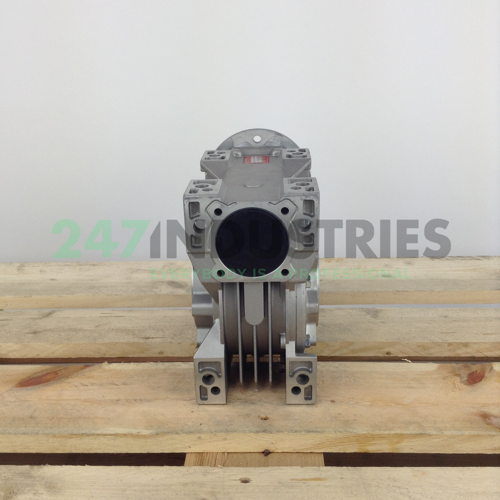

SRT085402435B3-90B14 Varvel

Technical details

1. Availability 0 pcs
2. Brand Varvel
3. Item number SRT085402435B3-90B14 Varvel
4. Category Gearboxes

Weight and Dimensions

1. Weight (kg) 12.1

Product Properties

1. Mounting B14 (inner flange)
2. Gear ratio i = n1/n2 40
3. IEC Framesize 90

Detailed Product Properties

1. IEC Framesize 90
2. Shaft diameter (mm) 24
3. Shaft height IEC in JDE 090
4. Shaft length (mm) 50
5. Shaft key width (mm) 8
6. Shaft key length (mm) 40
7. Thread shaft bore M8
8. Shaft height, B3 mounted (mm) 90
9. Width foot holes, B3 mounted (mm) 140
10. Length foot holes, B3 mounted (mm) S=286, M=311
11. Diameter foot holes (mm) 10
12. Outer diameter flange B5/V1/B35/V3 (mm) 200
13. Spigot B5/V1/B35/V3 (mm) 130
14. Pitch circle diameter B5/V1/B35/V3 (mm) 165
15. Number of flange holes 4
16. Diameter flange holes B5/V1/B35/V3 (mm) 12
17. Pitch circle diameter B14/B34/V18/V19 (mm) 115
18. Thread flange holes B14/B34/V18/V19 M8
19. Outer diameter flange B14/B34/V18/V19 (mm) 140
20. Spigot B14/B34/V18/V19 (mm) 95
