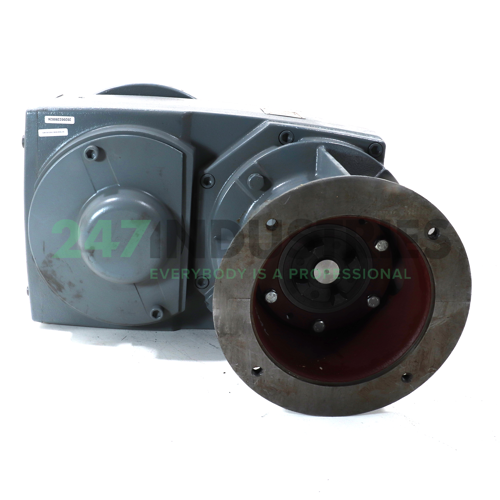

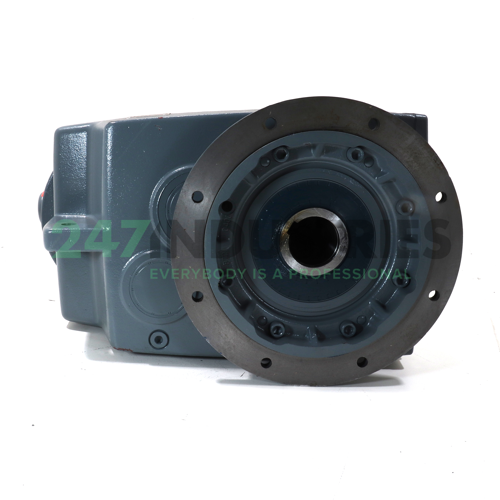

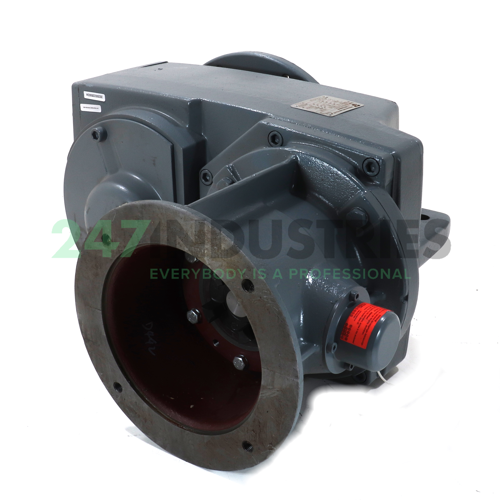

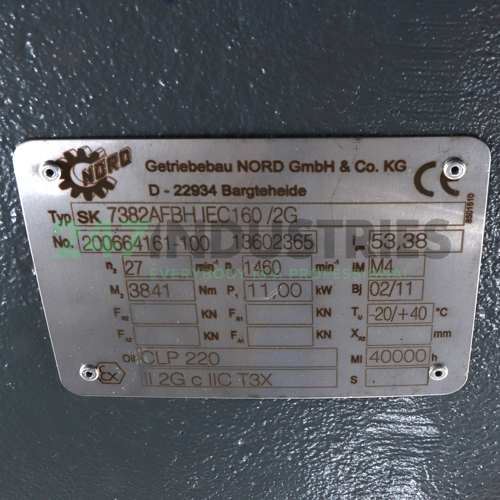

SK7382AFBHIEC1602GI53 Nord Drive Systems

Technical details

1. Availability 1 pc
2. Brand Nord Drive Systems
3. Item number SK7382AFBHIEC1602GI53 Nord Drive Systems
4. Category Gearboxes

Weight and Dimensions

1. Weight (kg) 320

Product Properties

1. Mounting V1 (outer flange)
2. Gear ratio i = n1/n2 53
3. IEC Framesize 160

Detailed Product Properties

1. IEC Framesize 160
2. Shaft diameter (mm) 42
3. Shaft height IEC in JDE 160
4. Shaft length (mm) 110
5. Shaft key width (mm) 12
6. Shaft key length (mm) 90
7. Thread shaft bore M16
8. Shaft height, B3 mounted (mm) 160
9. Width foot holes, B3 mounted (mm) 254
10. Length foot holes, B3 mounted (mm) S=286, M=311
11. Diameter foot holes (mm) 15
12. Outer diameter flange B5/V1/B35/V3 (mm) 350
13. Spigot B5/V1/B35/V3 (mm) 250
14. Pitch circle diameter B5/V1/B35/V3 (mm) 300
15. Number of flange holes 4
16. Diameter flange holes B5/V1/B35/V3 (mm) 18.5
17. Pitch circle diameter B14/B34/V18/V19 (mm) 215
18. Thread flange holes B14/B34/V18/V19 M12
19. Outer diameter flange B14/B34/V18/V19 (mm) 250
20. Spigot B14/B34/V18/V19 (mm) 180
