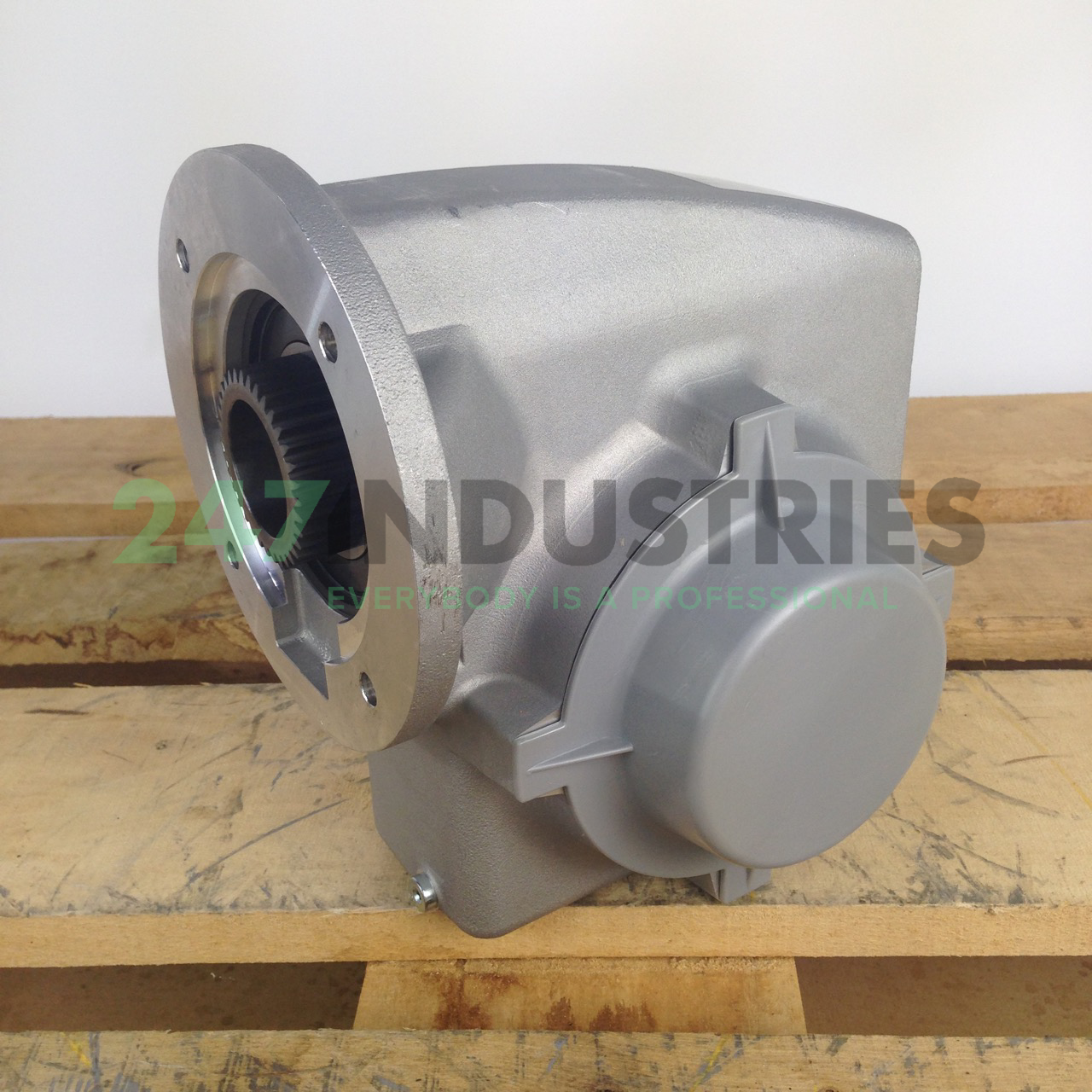

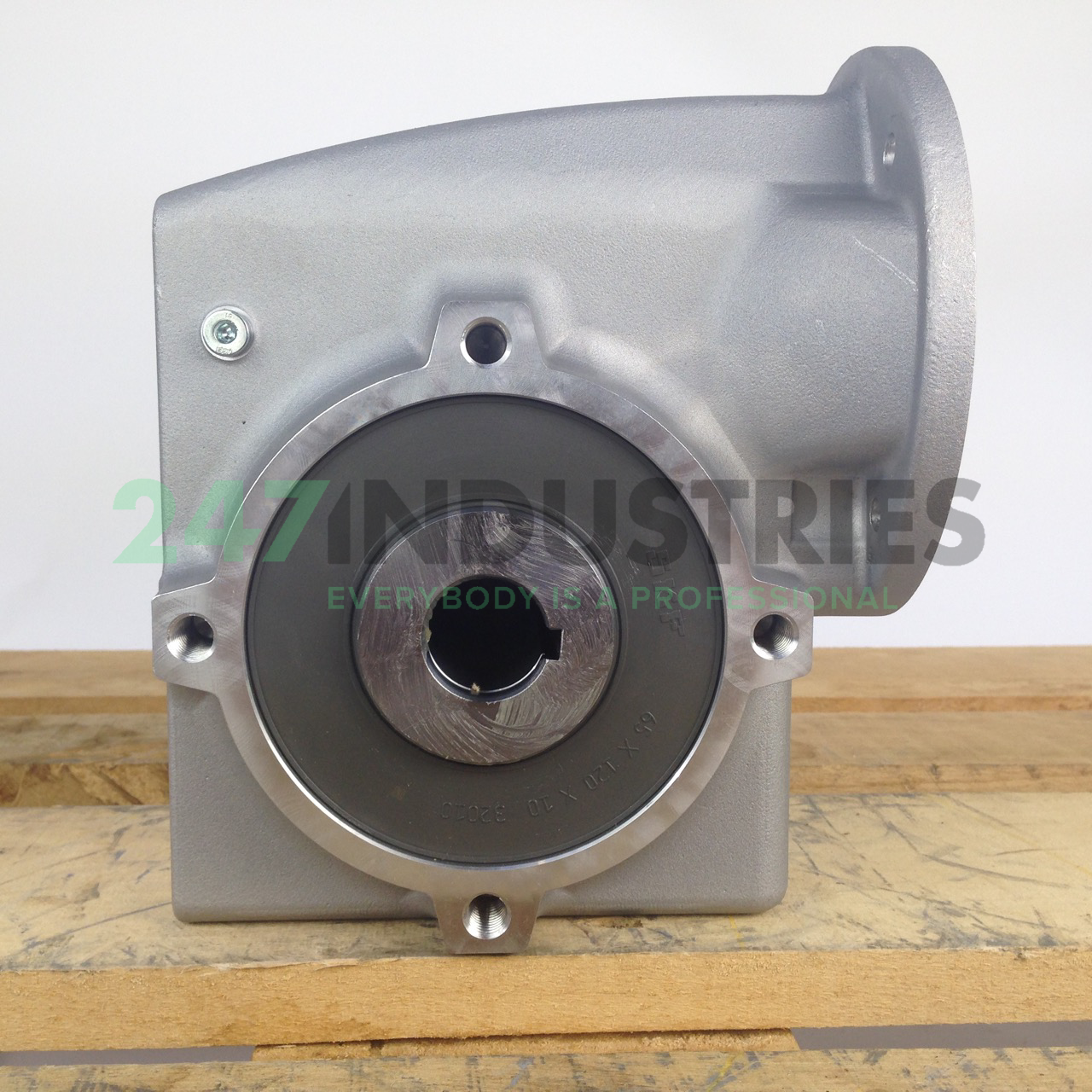

SK1SMI75ZD-IEC100/10 Nord Drive Systems

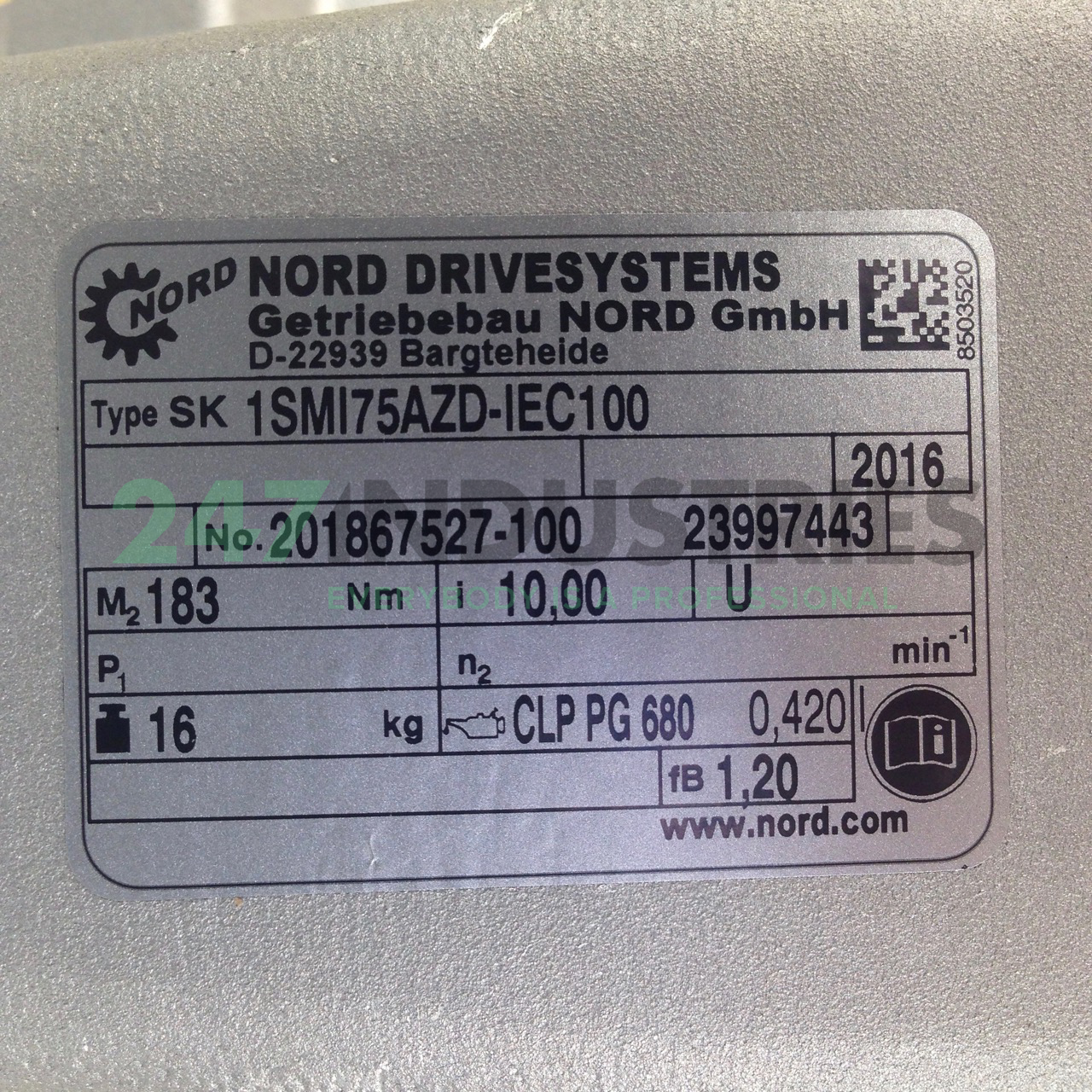

Technical details

1. Availability 0 pcs
2. Brand Nord Drive Systems
3. Item number SK1SMI75ZD-IEC100/10 Nord Drive Systems
4. Category Gearboxes

Weight and Dimensions

1. Weight (kg) 16

Product Properties

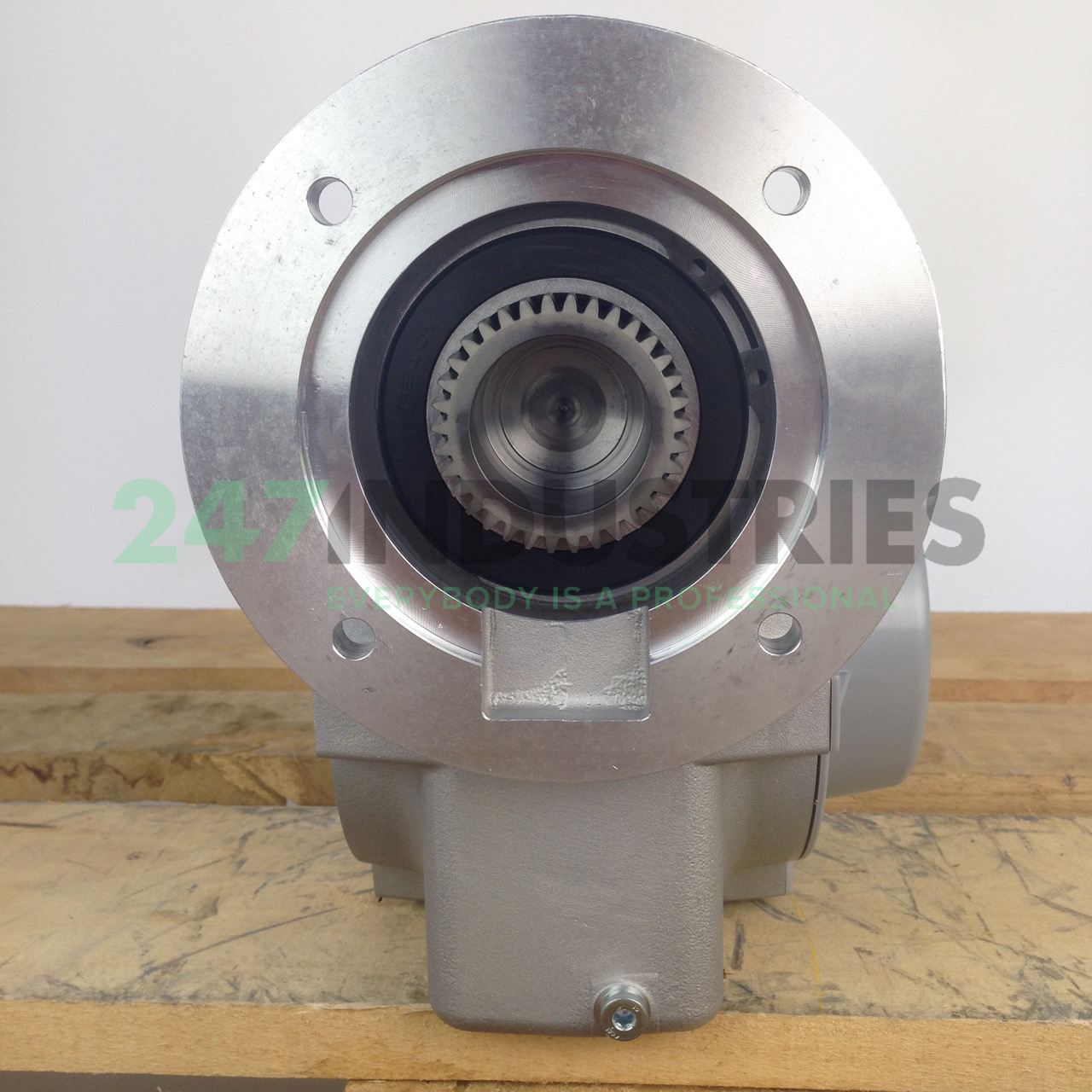

1. Mounting B14 (inner flange)
2. Gear ratio i = n1/n2 10
3. IEC Framesize 100

Detailed Product Properties

1. IEC Framesize 100
2. Shaft diameter (mm) 28
3. Shaft height IEC in JDE 100
4. Shaft length (mm) 60
5. Shaft key width (mm) 8
6. Shaft key length (mm) 50
7. Thread shaft bore M10
8. Shaft height, B3 mounted (mm) 100
9. Width foot holes, B3 mounted (mm) 160
10. Length foot holes, B3 mounted (mm) S=286, M=311
11. Diameter foot holes (mm) 12
12. Outer diameter flange B5/V1/B35/V3 (mm) 250
13. Spigot B5/V1/B35/V3 (mm) 180
14. Pitch circle diameter B5/V1/B35/V3 (mm) 215
15. Number of flange holes 4
16. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
17. Pitch circle diameter B14/B34/V18/V19 (mm) 130
18. Thread flange holes B14/B34/V18/V19 M8
19. Outer diameter flange B14/B34/V18/V19 (mm) 160
20. Spigot B14/B34/V18/V19 (mm) 110
