S10238/30019 Motovario

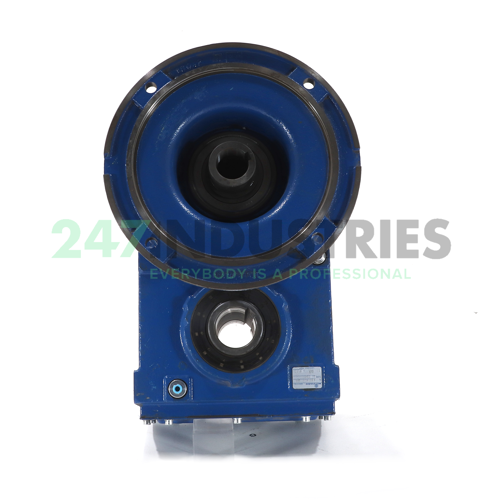

Shaft-mounted gear 132-B5 i=19

Stock
1 pc in stock and ready for shipment
Brand Motovario
Article number S10238/30019 Motovario
Mounting B5 (outer flange)
Product description
Read more Show less
Help with this product

Similar to: S10238/30019 Motovario

Loading similair products

Product specifications

Technical details

  1. Availability 1 pc
  2. Brand Motovario
  3. Item number S10238/30019 Motovario
  4. Category Gearboxes

Weight and Dimensions

  1. Weight (kg) 57

Product Properties

  1. Mounting B5 (outer flange)
  2. Gear ratio i = n1/n2 19
  3. IEC Framesize 132

Detailed Product Properties

  1. IEC Framesize 132
  2. Shaft diameter (mm) 38
  3. Shaft height IEC in JDE 132
  4. Shaft length (mm) 80
  5. Shaft key width (mm) 10
  6. Shaft key length (mm) 70
  7. Thread shaft bore M12
  8. Shaft height, B3 mounted (mm) 132
  9. Width foot holes, B3 mounted (mm) 216
  10. Length foot holes, B3 mounted (mm) S=286, M=311
  11. Diameter foot holes (mm) 12
  12. Outer diameter flange B5/V1/B35/V3 (mm) 300
  13. Spigot B5/V1/B35/V3 (mm) 230
  14. Pitch circle diameter B5/V1/B35/V3 (mm) 265
  15. Number of flange holes 4
  16. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
  17. Pitch circle diameter B14/B34/V18/V19 (mm) 165
  18. Thread flange holes B14/B34/V18/V19 M10
  19. Outer diameter flange B14/B34/V18/V19 (mm) 200
  20. Spigot B14/B34/V18/V19 (mm) 130
Show all details Show less
