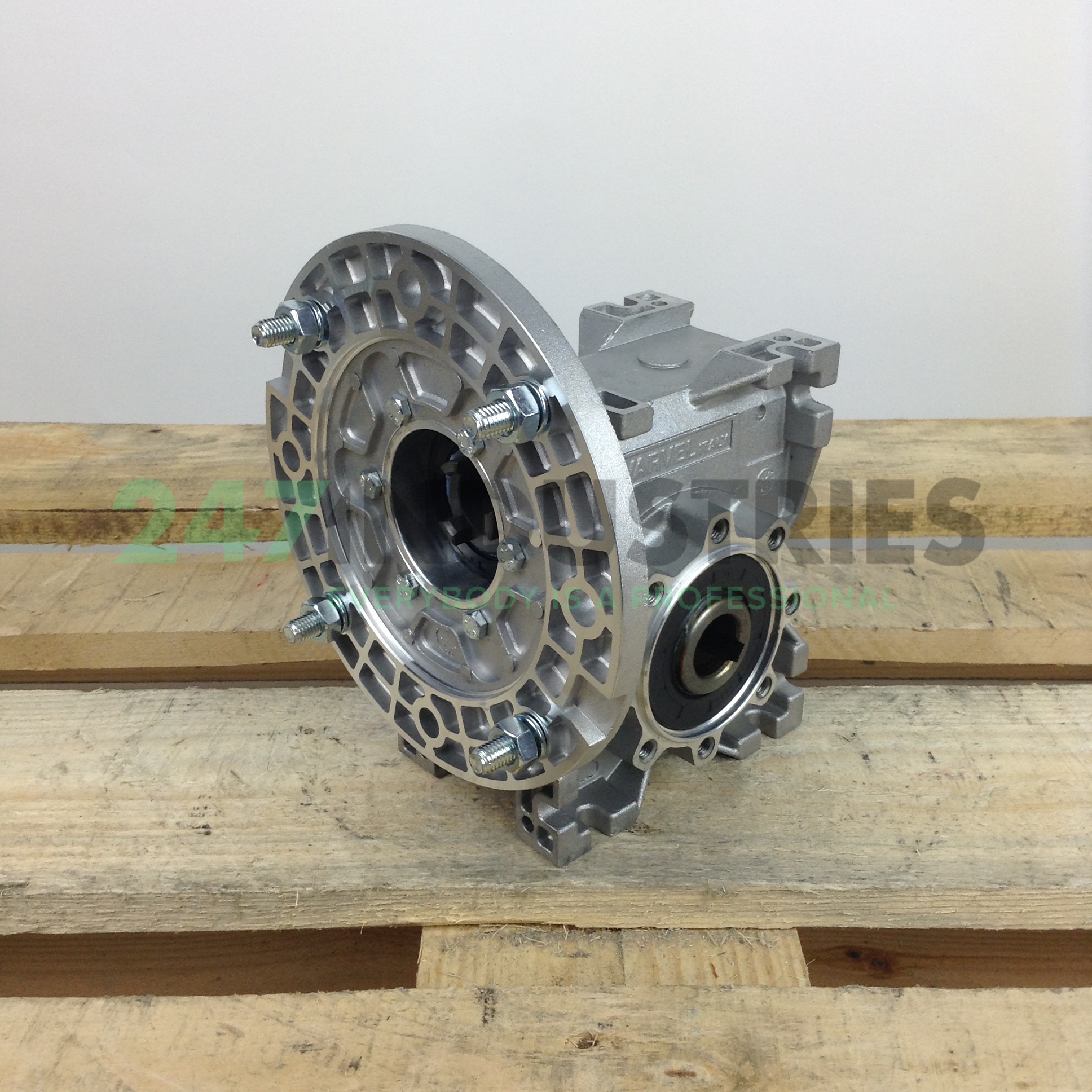

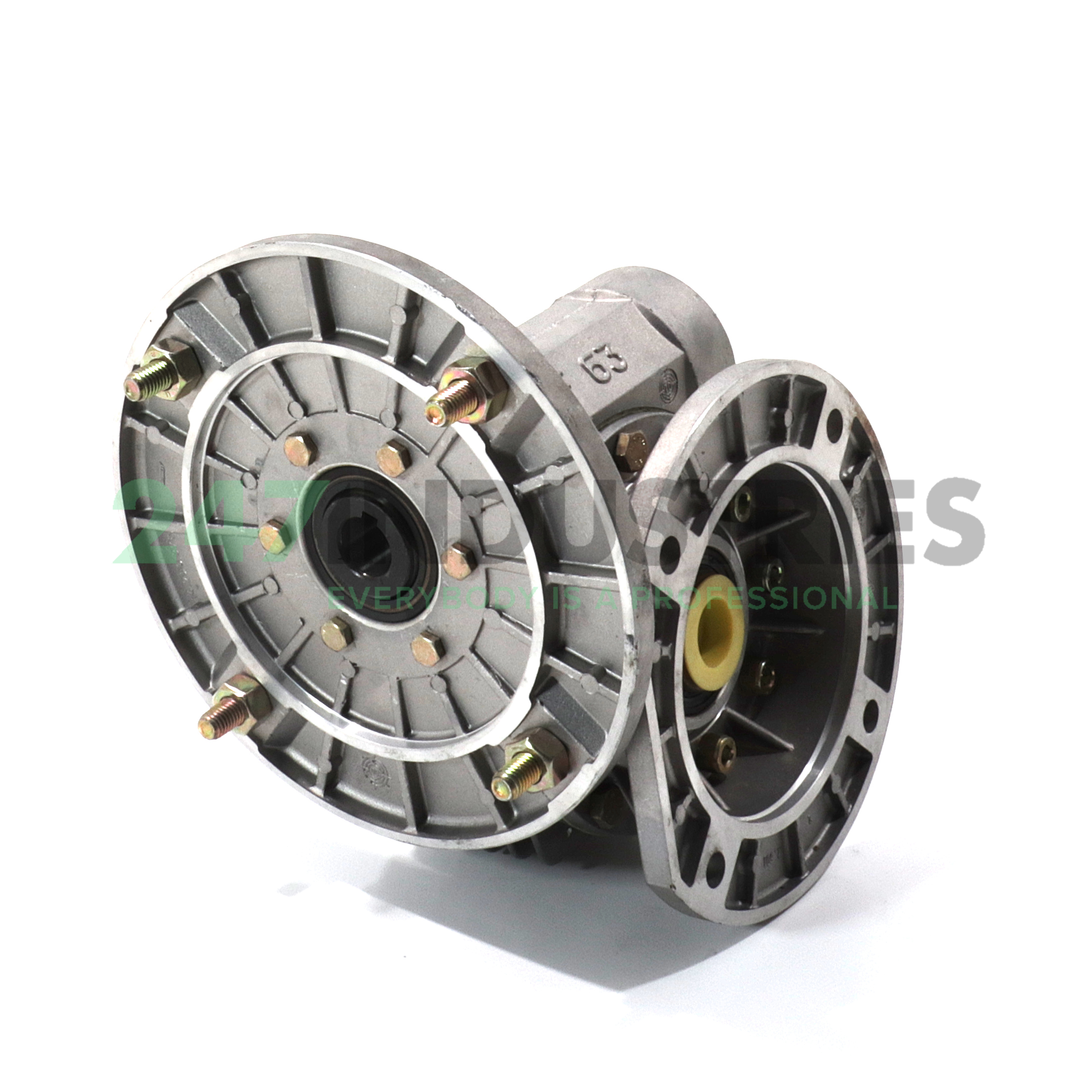

MVF49FP80B5-I10 Bonfiglioli

Technical details

1. Availability 0 pcs
2. Brand Bonfiglioli
3. Item number MVF49FP80B5-I10 Bonfiglioli
4. Category Gearboxes

Weight and Dimensions

1. Weight (kg) 3.54

Product Properties

1. Mounting B5 (outer flange)
2. Gear ratio i = n1/n2 10
3. IEC Framesize 80

Detailed Product Properties

1. IEC Framesize 80
2. Shaft diameter (mm) 19
3. Shaft height IEC in JDE 080
4. Shaft length (mm) 40
5. Shaft key width (mm) 6
6. Shaft key length (mm) 32
7. Thread shaft bore M6
8. Shaft height, B3 mounted (mm) 80
9. Width foot holes, B3 mounted (mm) 125
10. Length foot holes, B3 mounted (mm) 100
11. Diameter foot holes (mm) 9.5
12. Outer diameter flange B5/V1/B35/V3 (mm) 200
13. Spigot B5/V1/B35/V3 (mm) 130
14. Pitch circle diameter B5/V1/B35/V3 (mm) 165
15. Number of flange holes 4
16. Diameter flange holes B5/V1/B35/V3 (mm) 12
17. Pitch circle diameter B14/B34/V18/V19 (mm) 100
18. Thread flange holes B14/B34/V18/V19 M6
19. Outer diameter flange B14/B34/V18/V19 (mm) 120
20. Spigot B14/B34/V18/V19 (mm) 80
