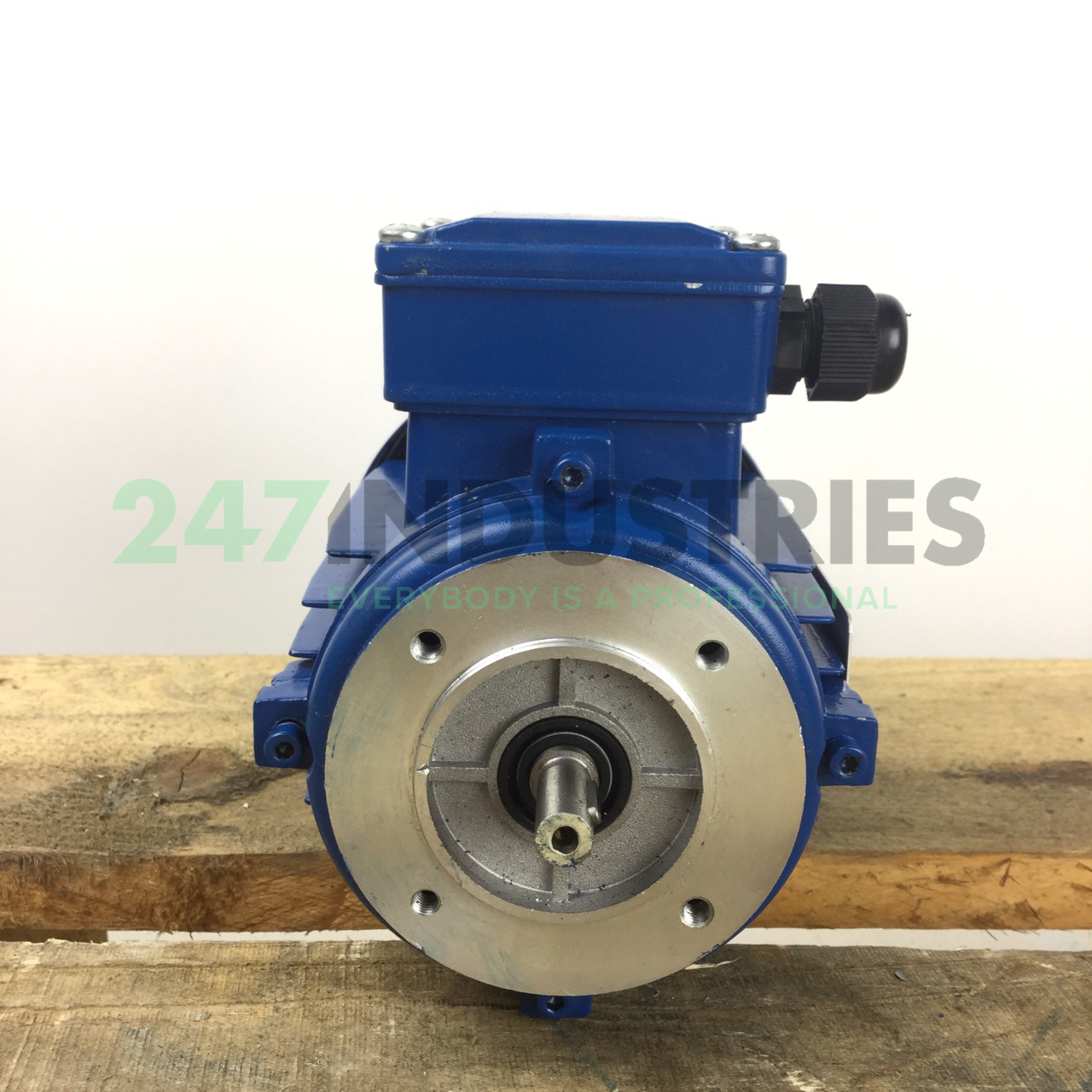

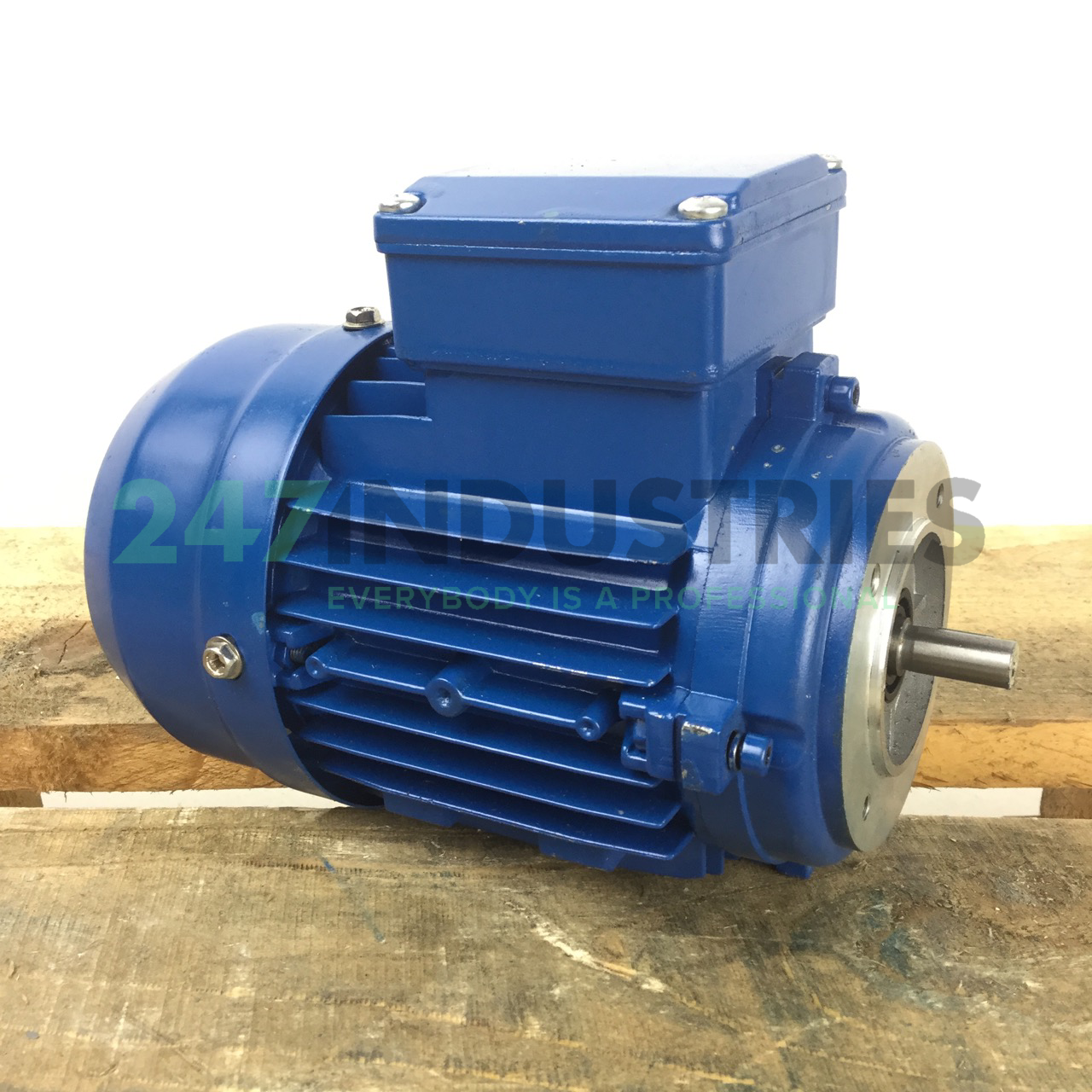

MSL56A-2-B14 Cemer

Technical details

1. Availability 0 pcs
2. Brand Cemer
3. Item number MSL56A-2-B14 Cemer
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 2.55

Product Properties

1. Rated power (kW) 0.09
2. Speed at 50Hz (rpm) 3000 / 2-Poles
3. Frequency 50/60 Hz
4. Energy efficiency IE1 = standard = EFF2
5. Mounting B14 (inner flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 56

Detailed Product Properties

1. Voltage 220-230VD / 380-400VY
2. Shaft diameter (inch) 0.625
3. Housing material Alu
4. AC/DC AC
5. NEMA framesize 56
6. Standard IEC
7. Shaft height NEMA in JDE 056
8. Shaft length (inch) 1.875
9. Shaft height, B3 mounted (inch) 3.5
10. Width foot holes, B3 mounted (inch) 4.875
11. Length foot holes, B3 mounted (inch) 3
12. Diameter foot holes (inch) 0.3438
13. Pitch flange holes C-face (inch) 5.875
14. Outer diameter flange C-face (inch) 6.5
15. Spigot C-face (inch) 4.5
