MLE112M-2-B34 Cemer

Technical details

1. Availability 0 pcs
2. Brand Cemer
3. Item number MLE112M-2-B34 Cemer
4. Category 1-Phase Motors

Weight and Dimensions

1. Weight (kg) 31

Product Properties

1. Rated power (kW) 4
2. Speed at 50Hz (rpm) 3000 / 2-Poles
3. Frequency 50 Hz
4. Energy efficiency Not applicable

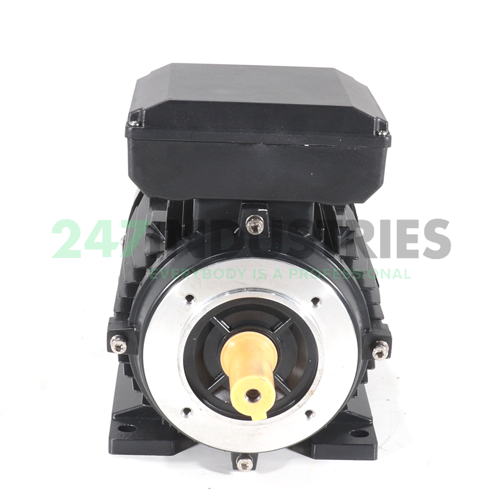

5. Mounting B34 (foot + inner flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 112

Detailed Product Properties

1. IEC Framesize 112
2. Shaft diameter (mm) 28
3. Housing material Alu
4. AC/DC AC
5. Standard IEC
6. Shaft height IEC in JDE 112
7. Shaft length (mm) 60
8. Shaft key width (mm) 8
9. Shaft key length (mm) 50
10. Thread shaft bore M10
11. Shaft height, B3 mounted (mm) 112
12. Width foot holes, B3 mounted (mm) 190
13. Length foot holes, B3 mounted (mm) S=286, M=311
14. Diameter foot holes (mm) 12
15. Outer diameter flange B5/V1/B35/V3 (mm) 250
16. Spigot B5/V1/B35/V3 (mm) 180
17. Pitch circle diameter B5/V1/B35/V3 (mm) 215
18. Number of flange holes 4
19. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
20. Pitch circle diameter B14/B34/V18/V19 (mm) 130
21. Thread flange holes B14/B34/V18/V19 M8
22. Outer diameter flange B14/B34/V18/V19 (mm) 160
23. Spigot B14/B34/V18/V19 (mm) 110
