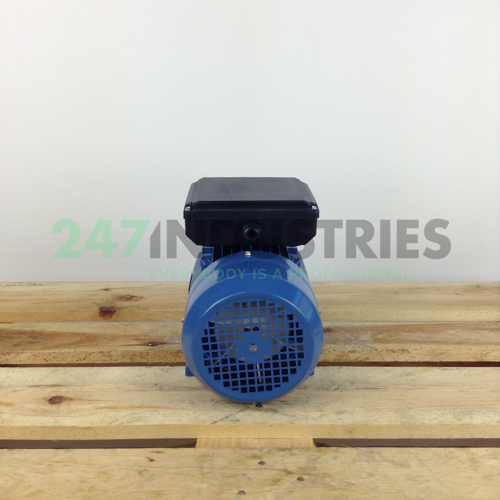

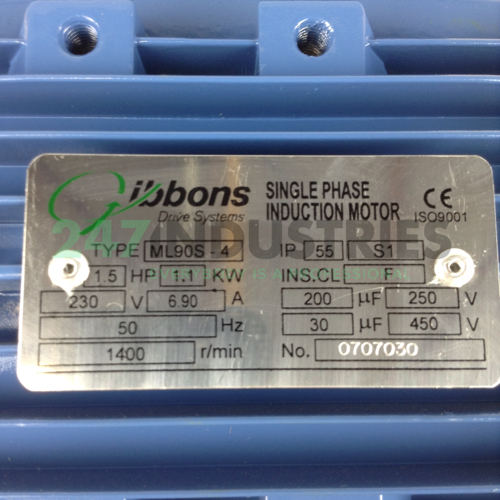

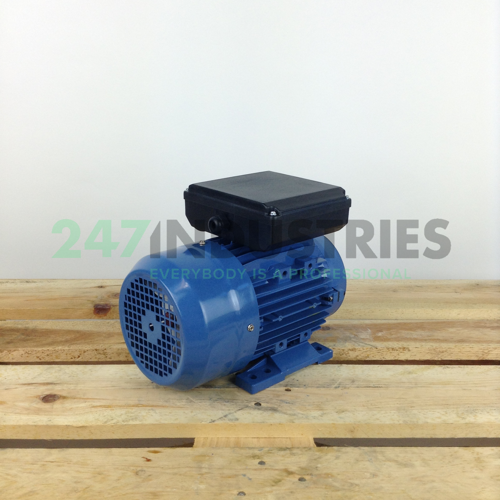

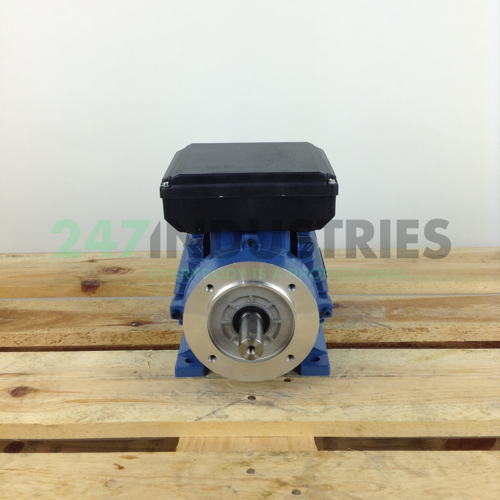

ML90S-4B34 Gibbons

Technical details

1. Availability 0 pcs
2. Brand Gibbons
3. Item number ML90S-4B34 Gibbons
4. Category 1-Phase Motors

Weight and Dimensions

1. Weight (kg) 13.35

Product Properties

1. Rated power (kW) 1.1
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50 Hz
4. Energy efficiency IE1 = standard = EFF2
5. Mounting B34 (foot + inner flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 90

Detailed Product Properties

1. IEC Framesize 90
2. Shaft diameter (mm) 24
3. Housing material Alu
4. AC/DC AC
5. Standard IEC
6. Shaft height IEC in JDE 090
7. Shaft length (mm) 50
8. Shaft key width (mm) 8
9. Shaft key length (mm) 40
10. Thread shaft bore M8
11. Shaft height, B3 mounted (mm) 90
12. Width foot holes, B3 mounted (mm) 140
13. Length foot holes, B3 mounted (mm) S=286, M=311
14. Diameter foot holes (mm) 10
15. Outer diameter flange B5/V1/B35/V3 (mm) 200
16. Spigot B5/V1/B35/V3 (mm) 130
17. Pitch circle diameter B5/V1/B35/V3 (mm) 165
18. Number of flange holes 4
19. Diameter flange holes B5/V1/B35/V3 (mm) 12
20. Pitch circle diameter B14/B34/V18/V19 (mm) 115
21. Thread flange holes B14/B34/V18/V19 M8
22. Outer diameter flange B14/B34/V18/V19 (mm) 140
23. Spigot B14/B34/V18/V19 (mm) 95
