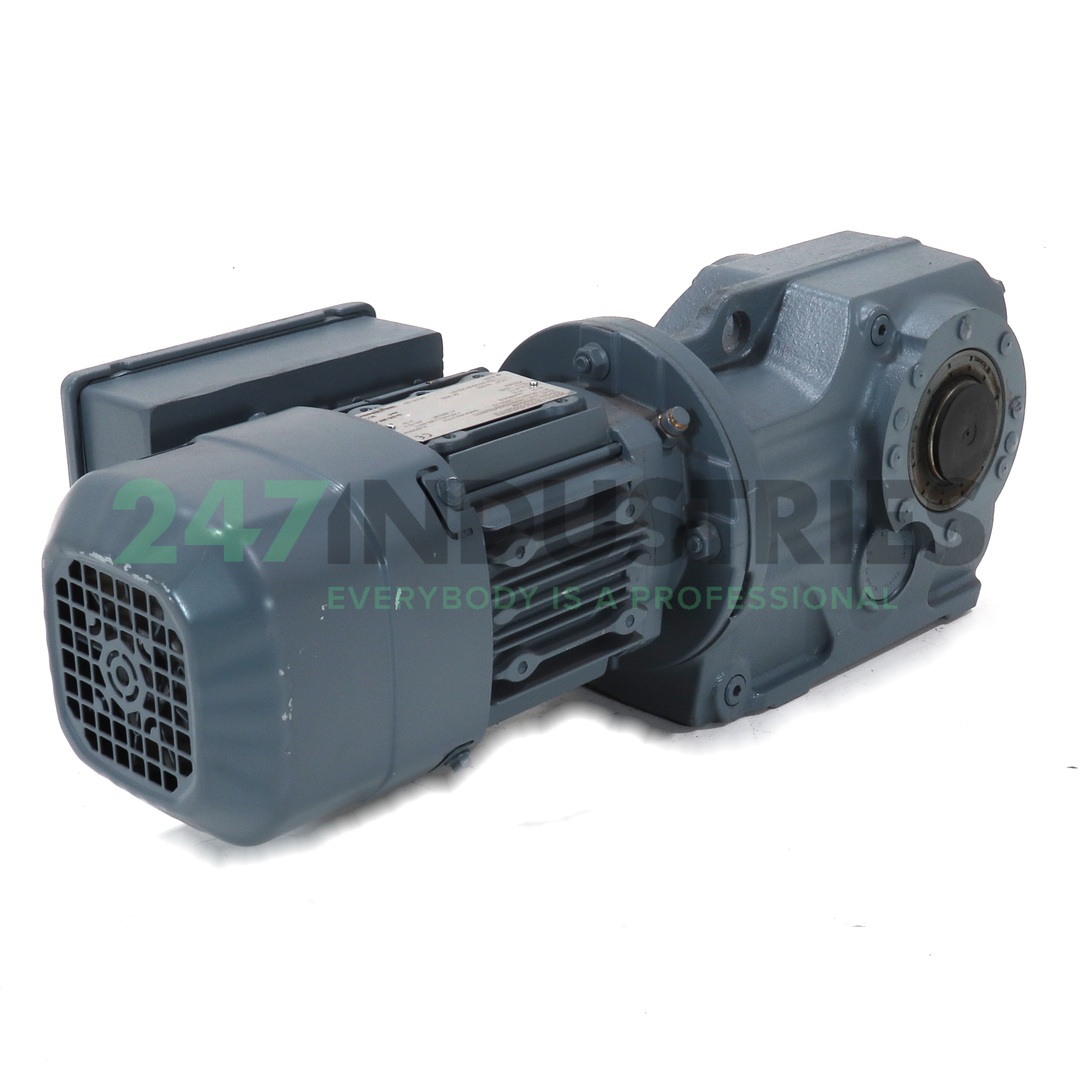

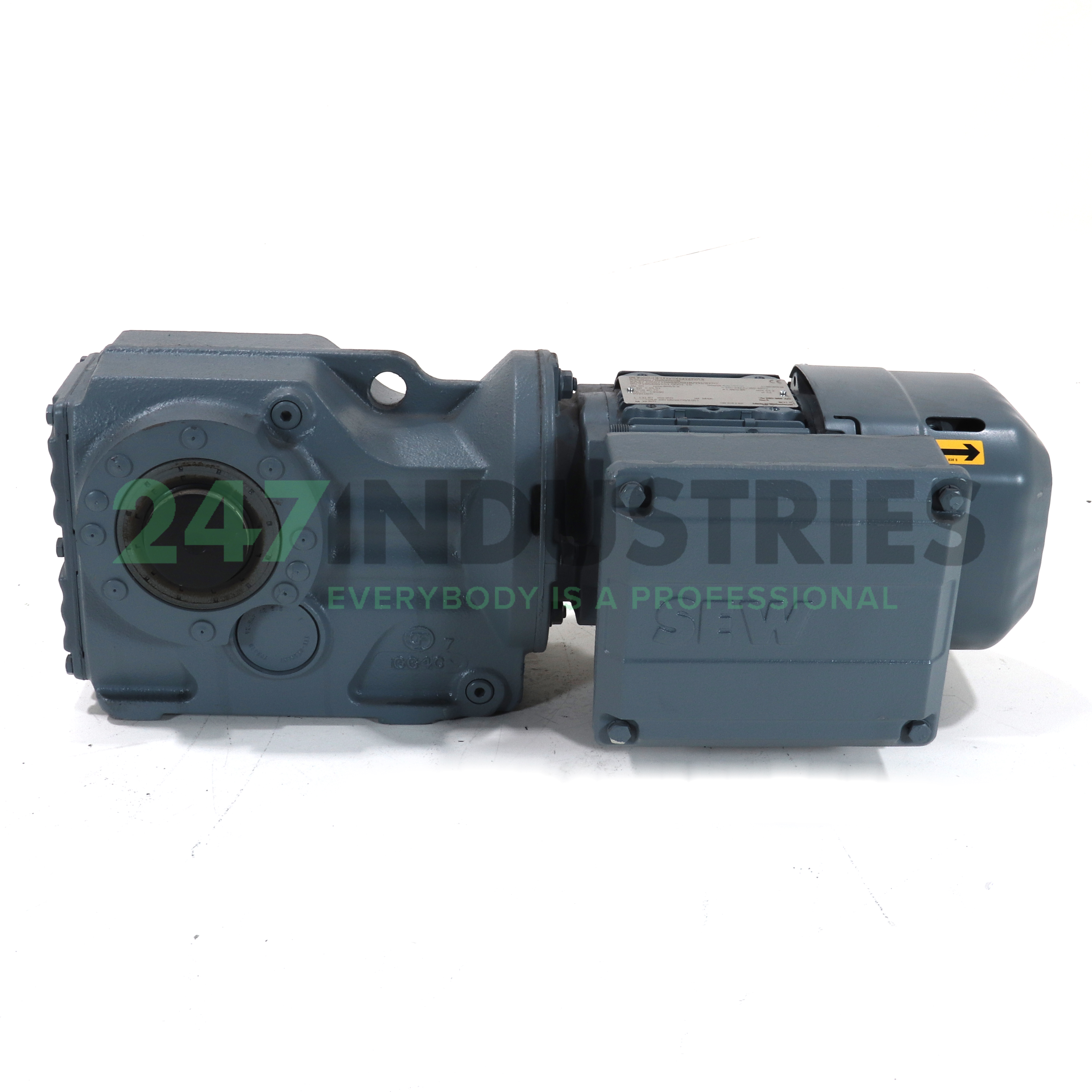

KA47/DRS71S6BE05HRTH SEW-EURODRIVE

Technical details

1. Availability 0 pcs
2. Brand SEW-EURODRIVE
3. Item number KA47/DRS71S6BE05HRTH SEW-EURODRIVE
4. Category Geared AC Motors

Weight and Dimensions

1. Weight (kg) 32

Product Properties

1. Rated power (kW) 0.25
2. Speed at 50Hz (rpm) 1000 / 6-Poles
3. Frequency 50 Hz
4. Energy efficiency Not applicable
5. Brake AC Brake
6. IP Class IP54
7. Explosion safety (Atex) No protection
8. Gear ratio i = n1/n2 132

Detailed Product Properties

1. Voltage 220-230VD / 380-400VY
2. Housing material Alu
3. AC/DC AC
4. Standard IEC
