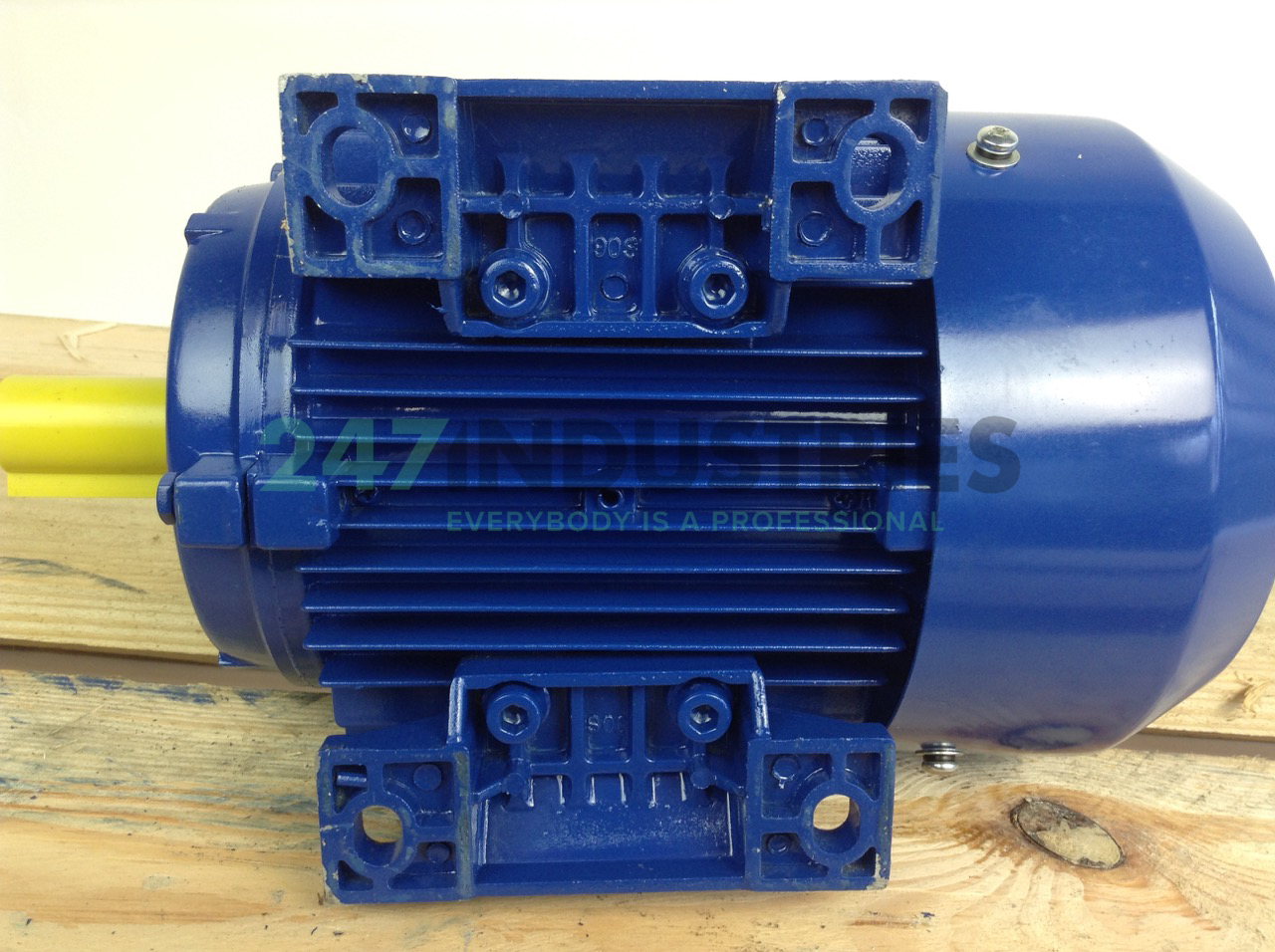

JS90S-4B3 EMK

Technical details

1. Availability 0 pcs
2. Brand EMK
3. Item number JS90S-4B3 EMK
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 13

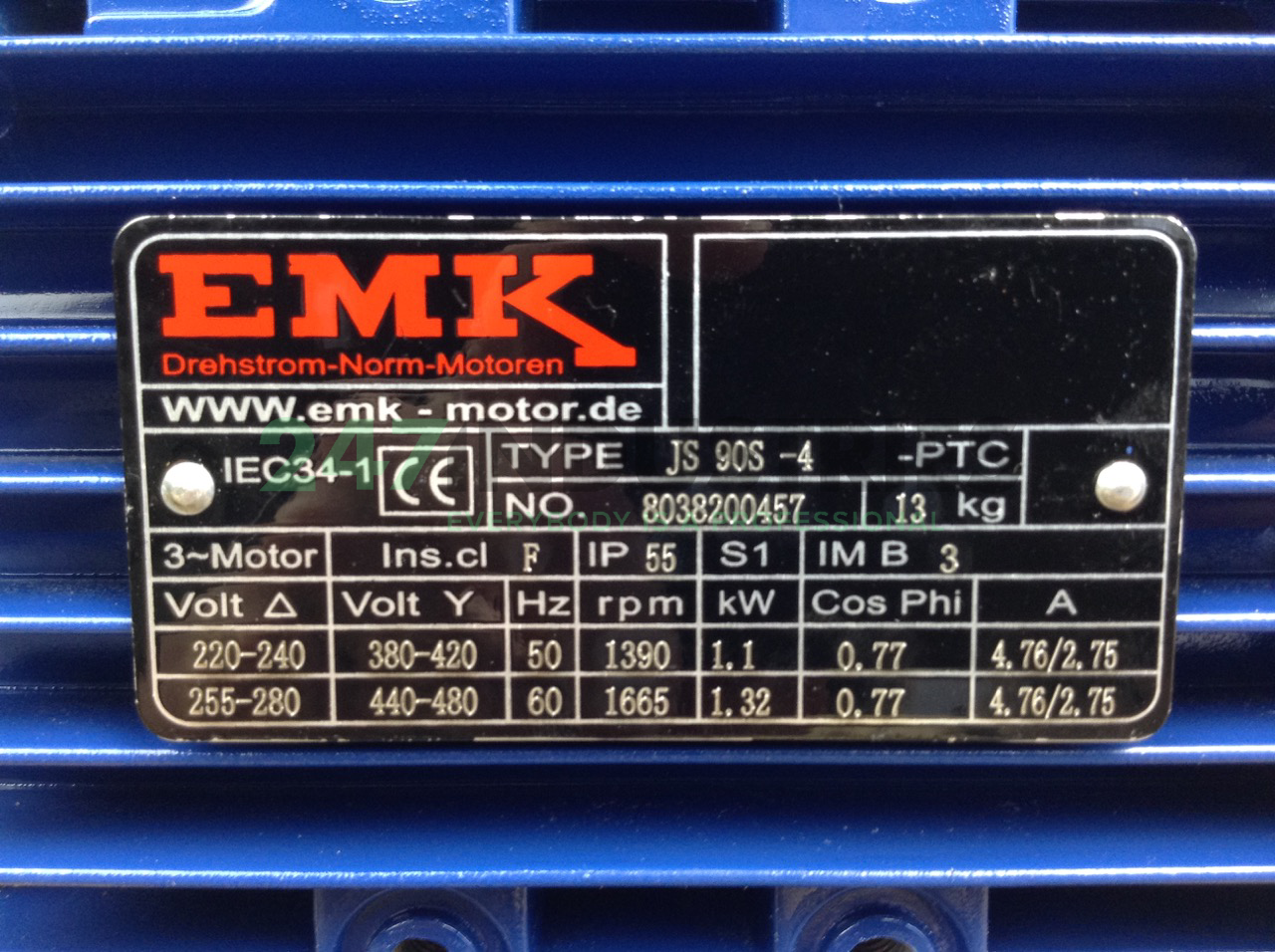

Product Properties

1. Rated power (kW) 1.1
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50/60 Hz
4. Energy efficiency IE1 = standard = EFF2
5. Mounting B3 / 1M1001 (foot)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 90

Detailed Product Properties

1. Shaft diameter (mm) 24
2. Shaft height IEC in JDE 090
3. Shaft length (mm) 50
4. Shaft key width (mm) 8
5. Shaft key length (mm) 40
6. Thread shaft bore M8
7. Shaft height, B3 mounted (mm) 90
8. Width foot holes, B3 mounted (mm) 140
9. Length foot holes, B3 mounted (mm) S=286, M=311
10. Outer diameter flange B5/V1/B35/V3 (mm) 200
11. Pitch circle diameter B5/V1/B35/V3 (mm) 165
12. Number of flange holes 4
13. Pitch circle diameter B14/B34/V18/V19 (mm) 115
14. Thread flange holes B14/B34/V18/V19 M8
15. Outer diameter flange B14/B34/V18/V19 (mm) 140
