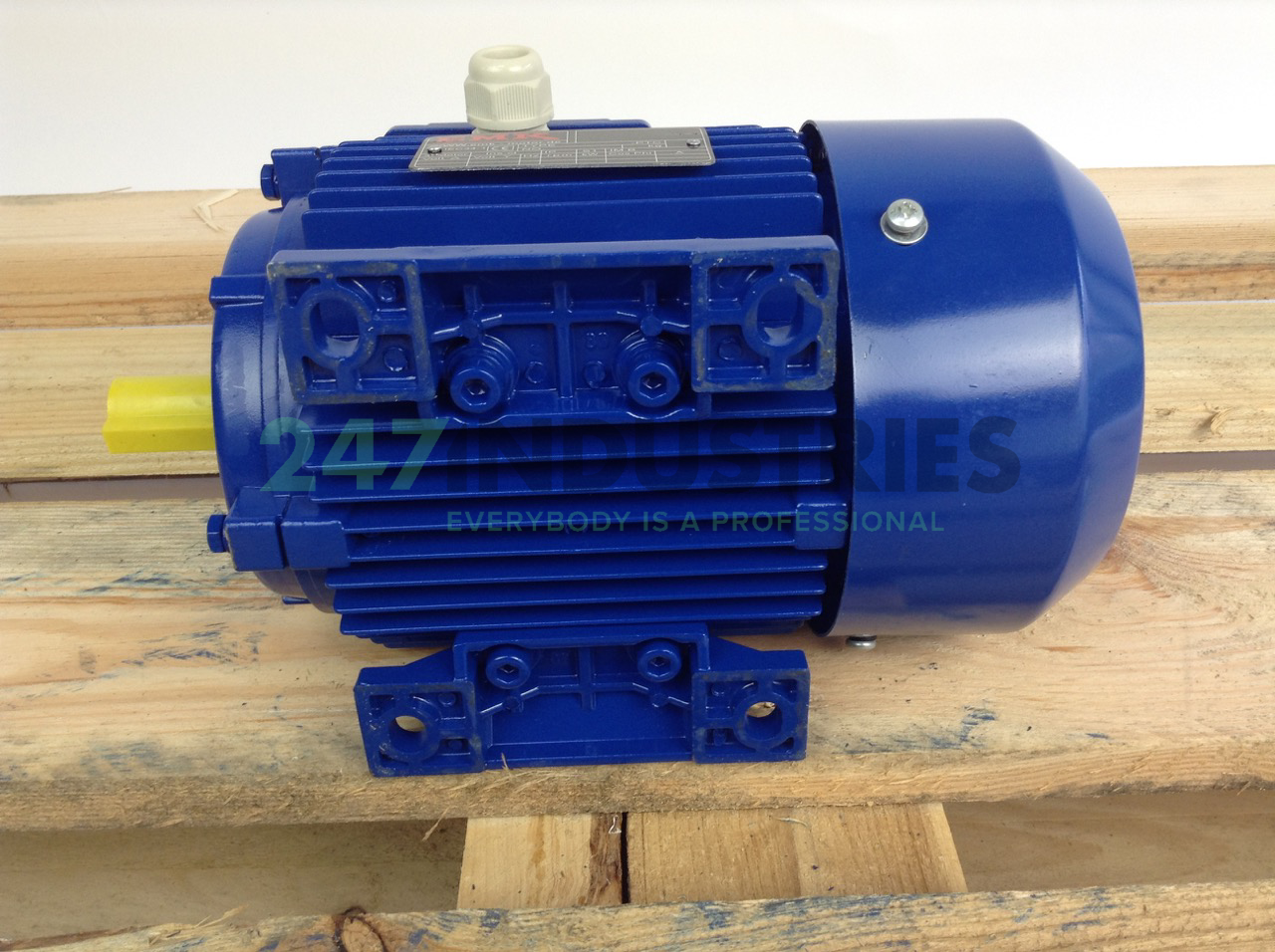

JS801-2B3 EMK

Technical details

1. Availability 0 pcs
2. Brand EMK
3. Item number JS801-2B3 EMK
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 10

Product Properties

1. Rated power (kW) 0.75
2. Speed at 50Hz (rpm) 3000 / 2-Poles
3. Frequency 50/60 Hz
4. Energy efficiency IE1 = standard = EFF2
5. Mounting B3 / 1M1001 (foot)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 80

Detailed Product Properties

1. Shaft diameter (mm) 19
2. Shaft height IEC in JDE 080
3. Shaft length (mm) 40
4. Shaft key width (mm) 6
5. Shaft key length (mm) 32
6. Thread shaft bore M6
7. Shaft height, B3 mounted (mm) 80
8. Width foot holes, B3 mounted (mm) 125
9. Pitch circle diameter B14/B34/V18/V19 (mm) 100
10. Thread flange holes B14/B34/V18/V19 M6
