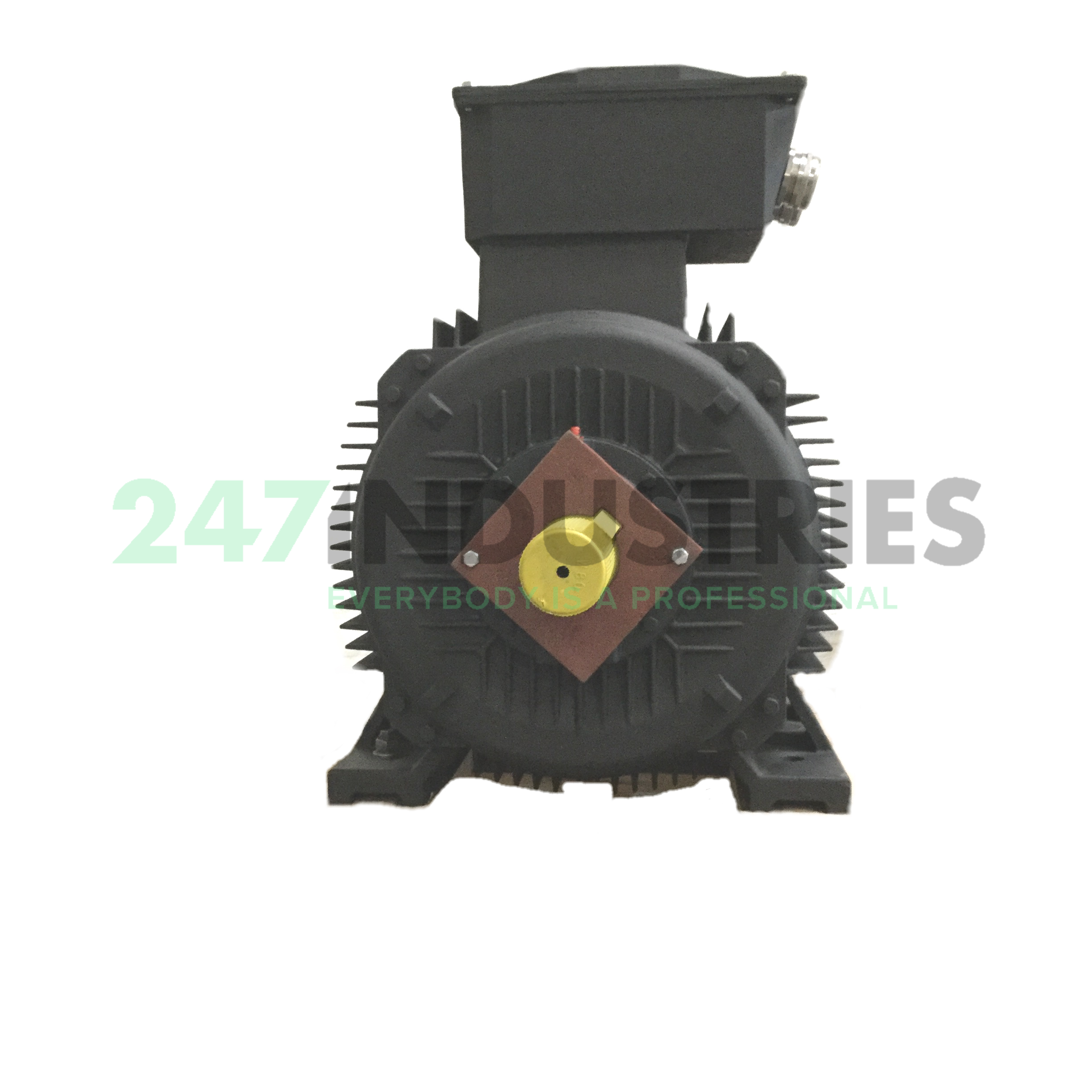

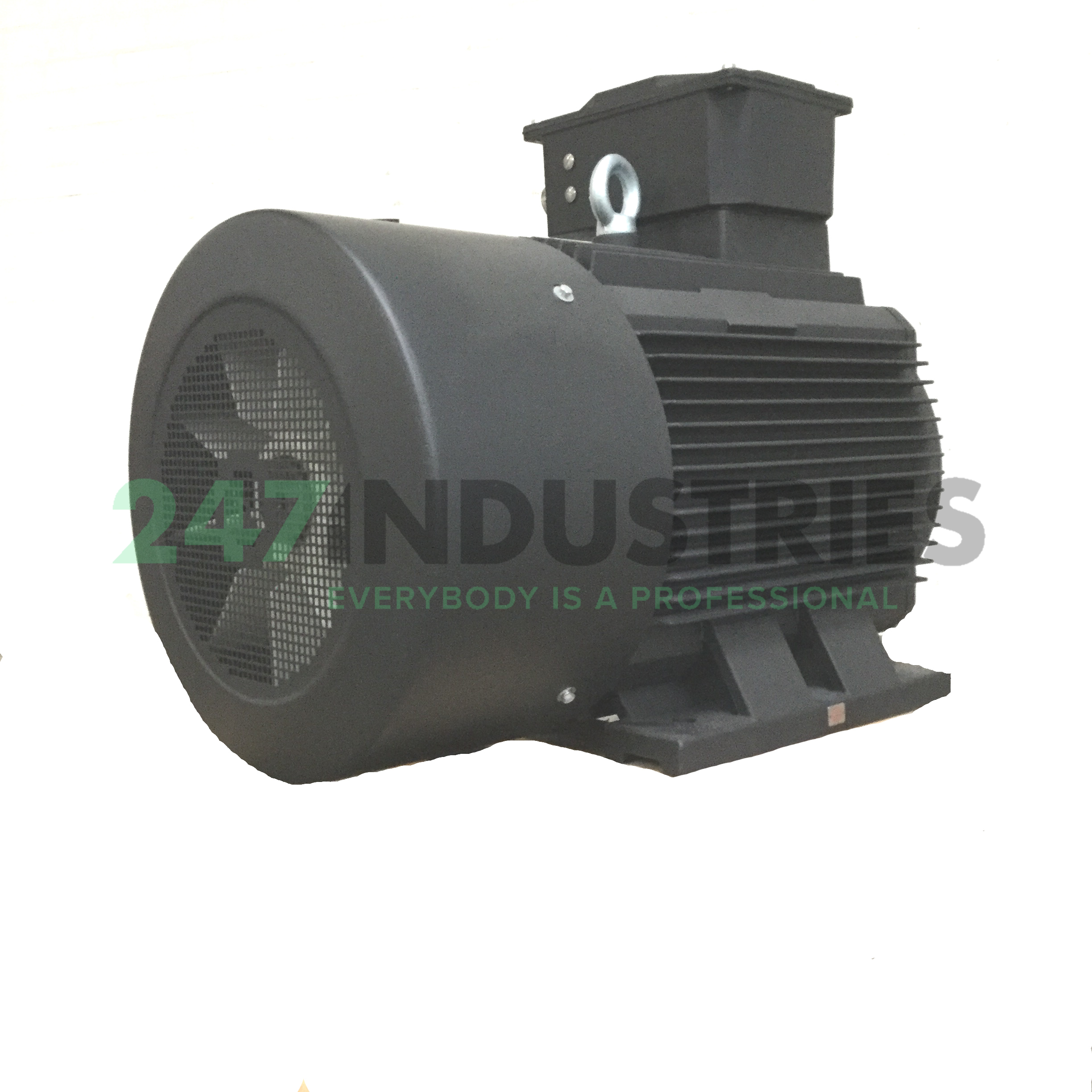

HMC2-315S-8-B3 Hoyer

Technical details

1. Availability 0 pcs
2. Brand Hoyer
3. Item number HMC2-315S-8-B3 Hoyer
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 870

Product Properties

1. Rated power (kW) 55
2. Speed at 50Hz (rpm) 750 / 8-Poles
3. Frequency 50/60 Hz
4. Energy efficiency IE2 = High = EFF1
5. Mounting B3 / 1M1001 (foot)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 315

Detailed Product Properties

1. Voltage 380-400VD / 660-690VY
2. IEC Framesize 315
3. Shaft diameter (mm) 65
4. Housing material Cast Iron
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 315
8. Shaft length (mm) 140
9. Shaft key width (mm) 18
10. Shaft key length (mm) 125
11. Thread shaft bore M20
12. Shaft height, B3 mounted (mm) 315
13. Width foot holes, B3 mounted (mm) 508
14. Length foot holes, B3 mounted (mm) S=286, M=311
15. Diameter foot holes (mm) 28
16. Outer diameter flange B5/V1/B35/V3 (mm) 660
17. Spigot B5/V1/B35/V3 (mm) 550
18. Pitch circle diameter B5/V1/B35/V3 (mm) 600
19. Number of flange holes 8
20. Diameter flange holes B5/V1/B35/V3 (mm) 24
