HC480A6B5-Y Rossi

Technical details

1. Availability 6 pcs
2. Brand Rossi
3. Item number HC480A6B5-Y Rossi
4. Category Stainless Steel Motors

Weight and Dimensions

1. Weight (kg) 21.6

Product Properties

1. Rated power (kW) 0.37
2. Speed at 50Hz (rpm) 1000 / 6-Poles
3. Frequency 50/60 Hz
4. Energy efficiency Not applicable

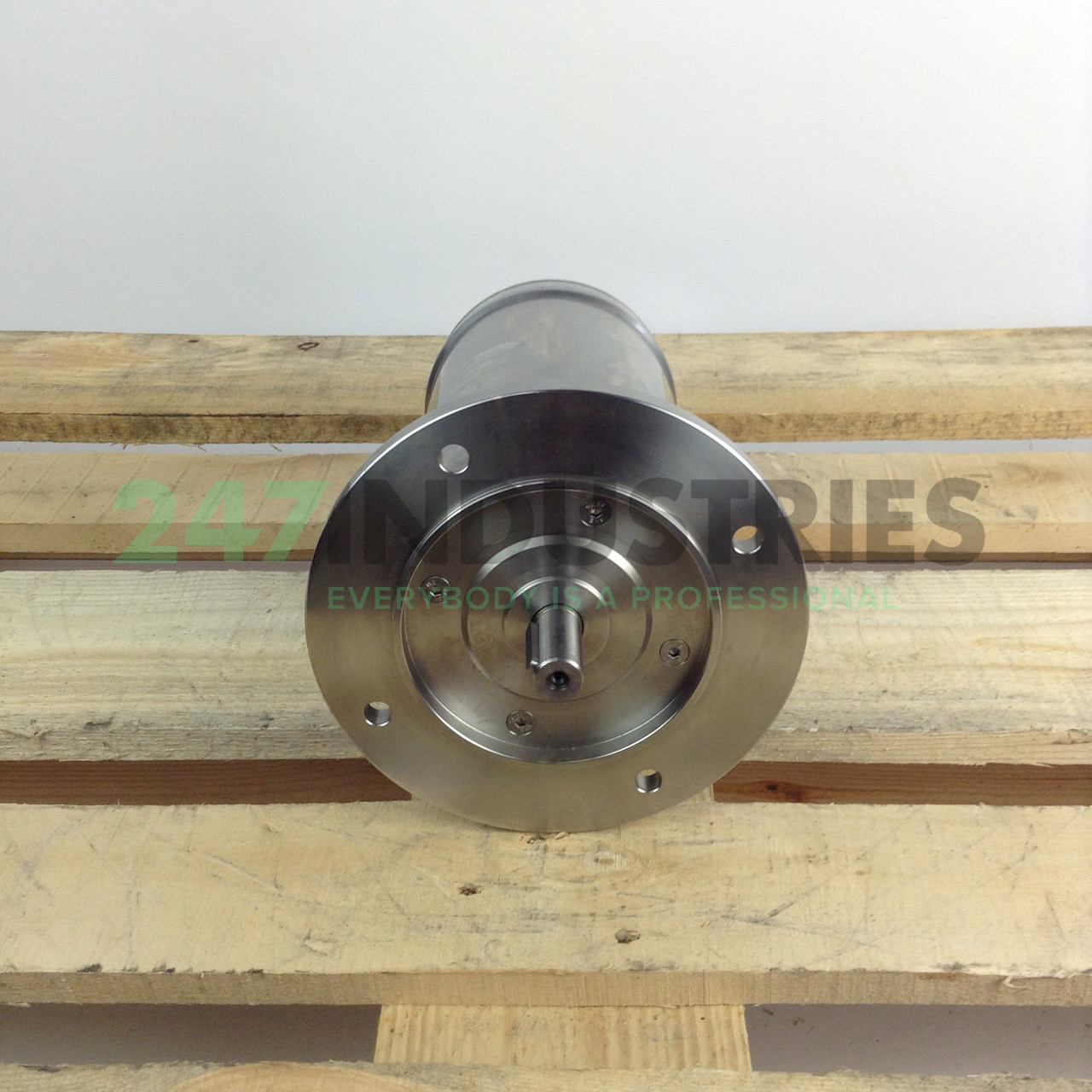

5. Mounting B5 (outer flange)
6. Brake No Brake
7. IP Class IP68
8. Explosion safety (Atex) No protection
9. IEC Framesize 80

Detailed Product Properties

1. Voltage 220-230VD / 380-400VY
2. IEC Framesize 80
3. Shaft diameter (mm) 19
4. Housing material Stainless steel
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 080
8. Shaft length (mm) 40
9. Shaft key width (mm) 6
10. Shaft key length (mm) 32
11. Thread shaft bore M6
12. Shaft height, B3 mounted (mm) 80
13. Width foot holes, B3 mounted (mm) 125
14. Length foot holes, B3 mounted (mm) 100
15. Diameter foot holes (mm) 9.5
16. Outer diameter flange B5/V1/B35/V3 (mm) 200
17. Spigot B5/V1/B35/V3 (mm) 130
18. Pitch circle diameter B5/V1/B35/V3 (mm) 165
19. Number of flange holes 4
20. Diameter flange holes B5/V1/B35/V3 (mm) 12
21. Pitch circle diameter B14/B34/V18/V19 (mm) 100
22. Thread flange holes B14/B34/V18/V19 M6
23. Outer diameter flange B14/B34/V18/V19 (mm) 120
24. Spigot B14/B34/V18/V19 (mm) 80
