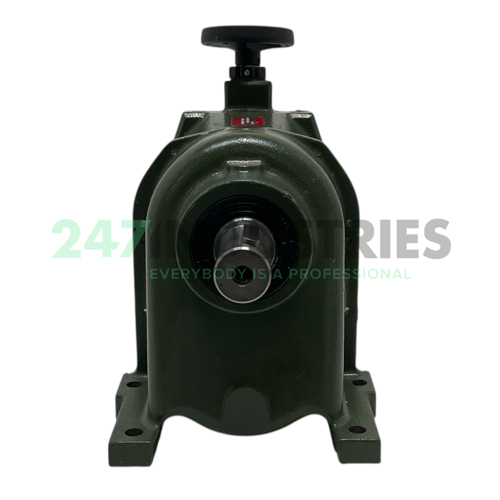

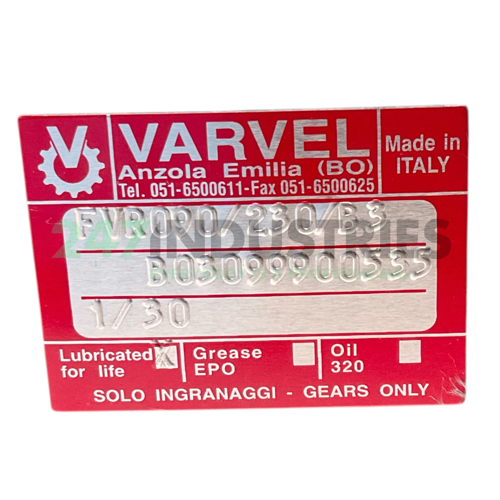

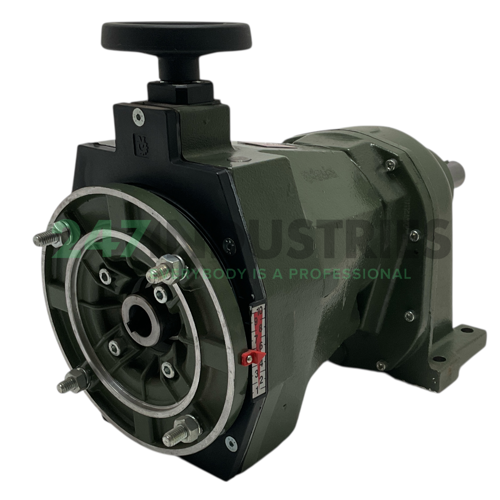

FVR090/230B3-90B5I30 Varvel

Technical details

1. Availability 3 pcs
2. Brand Varvel
3. Item number FVR090/230B3-90B5I30 Varvel
4. Category Gearboxes

Weight and Dimensions

1. Weight (kg) 39.5

Product Properties

1. Mounting B5 (outer flange)
2. Gear ratio i = n1/n2 30
3. IEC Framesize 90

Detailed Product Properties

1. Shaft diameter (mm) 24
2. Shaft height IEC in JDE 090
3. Shaft length (mm) 50
4. Shaft key width (mm) 8
5. Shaft key length (mm) 40
6. Thread shaft bore M8
7. Shaft height, B3 mounted (mm) 90
8. Width foot holes, B3 mounted (mm) 140
9. Length foot holes, B3 mounted (mm) S=286, M=311
10. Outer diameter flange B5/V1/B35/V3 (mm) 200
11. Pitch circle diameter B5/V1/B35/V3 (mm) 165
12. Pitch circle diameter B14/B34/V18/V19 (mm) 115
13. Thread flange holes B14/B34/V18/V19 M8
14. Outer diameter flange B14/B34/V18/V19 (mm) 140
