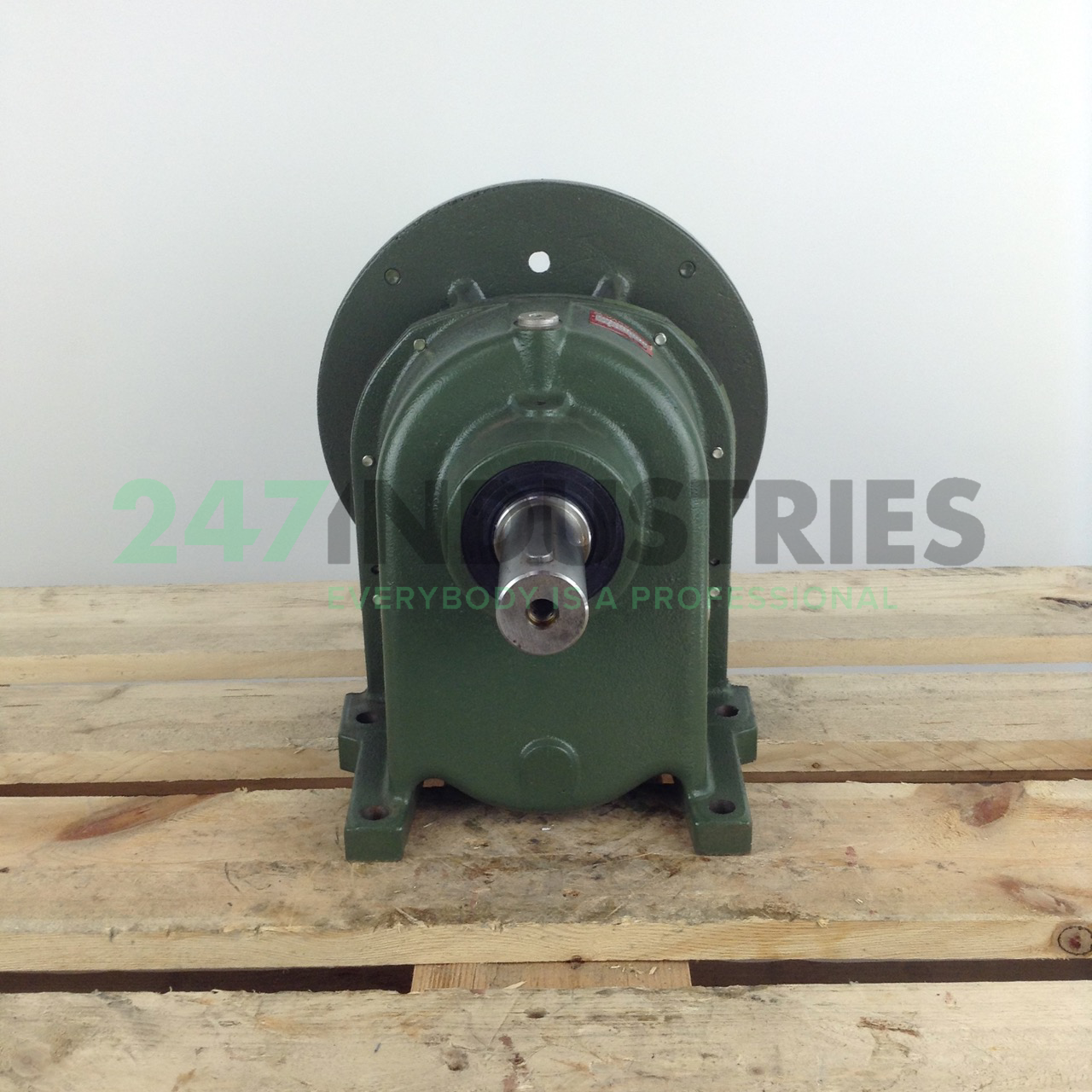

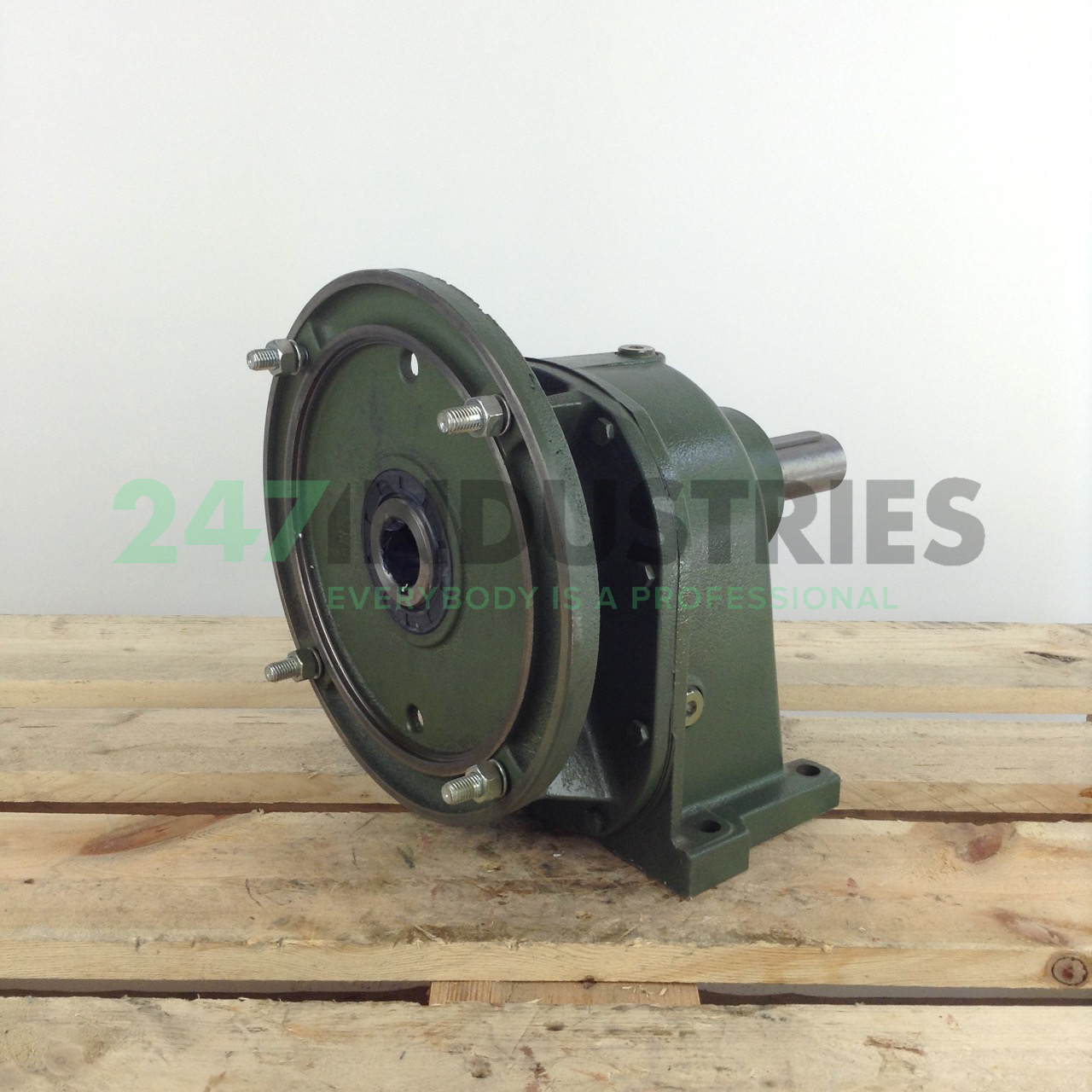

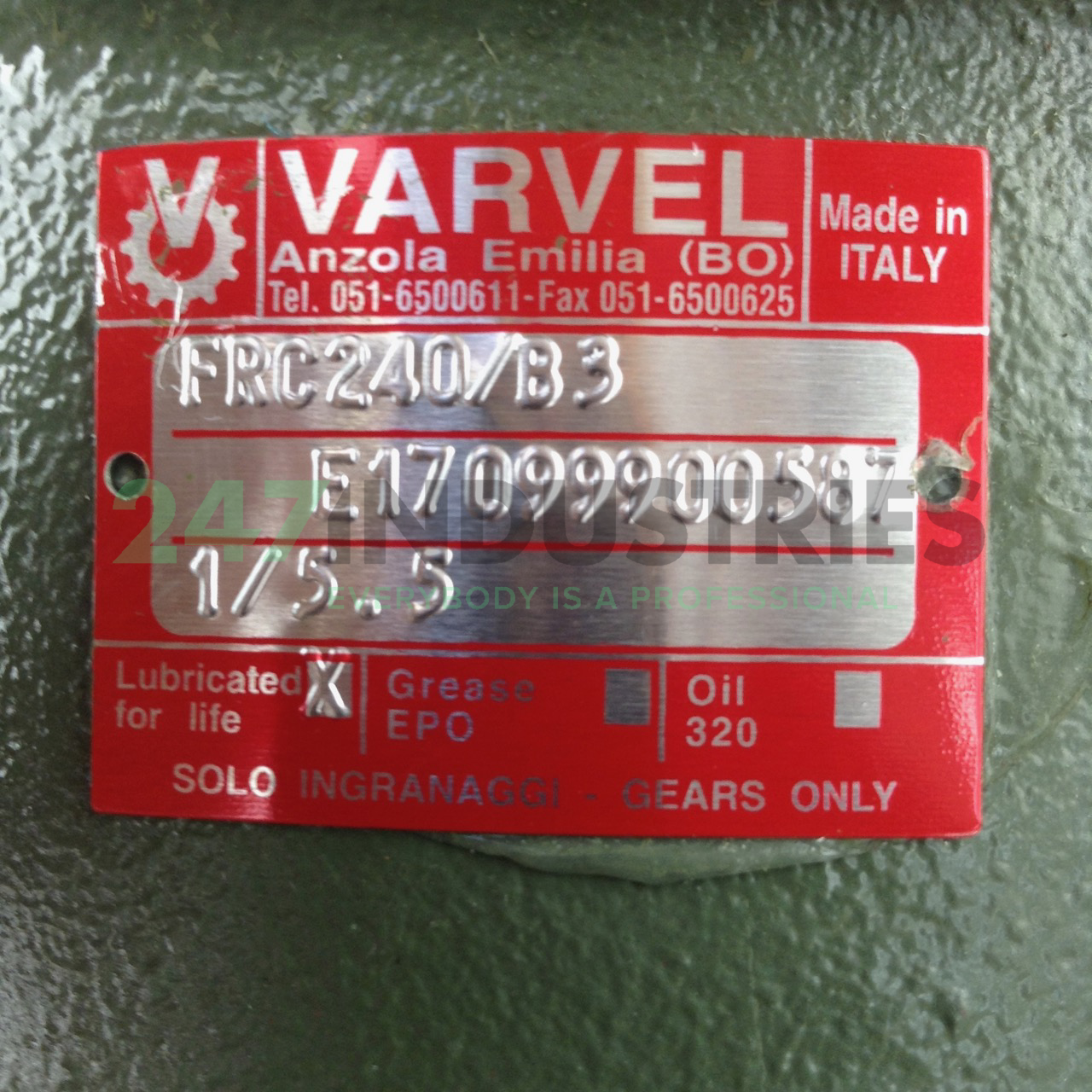

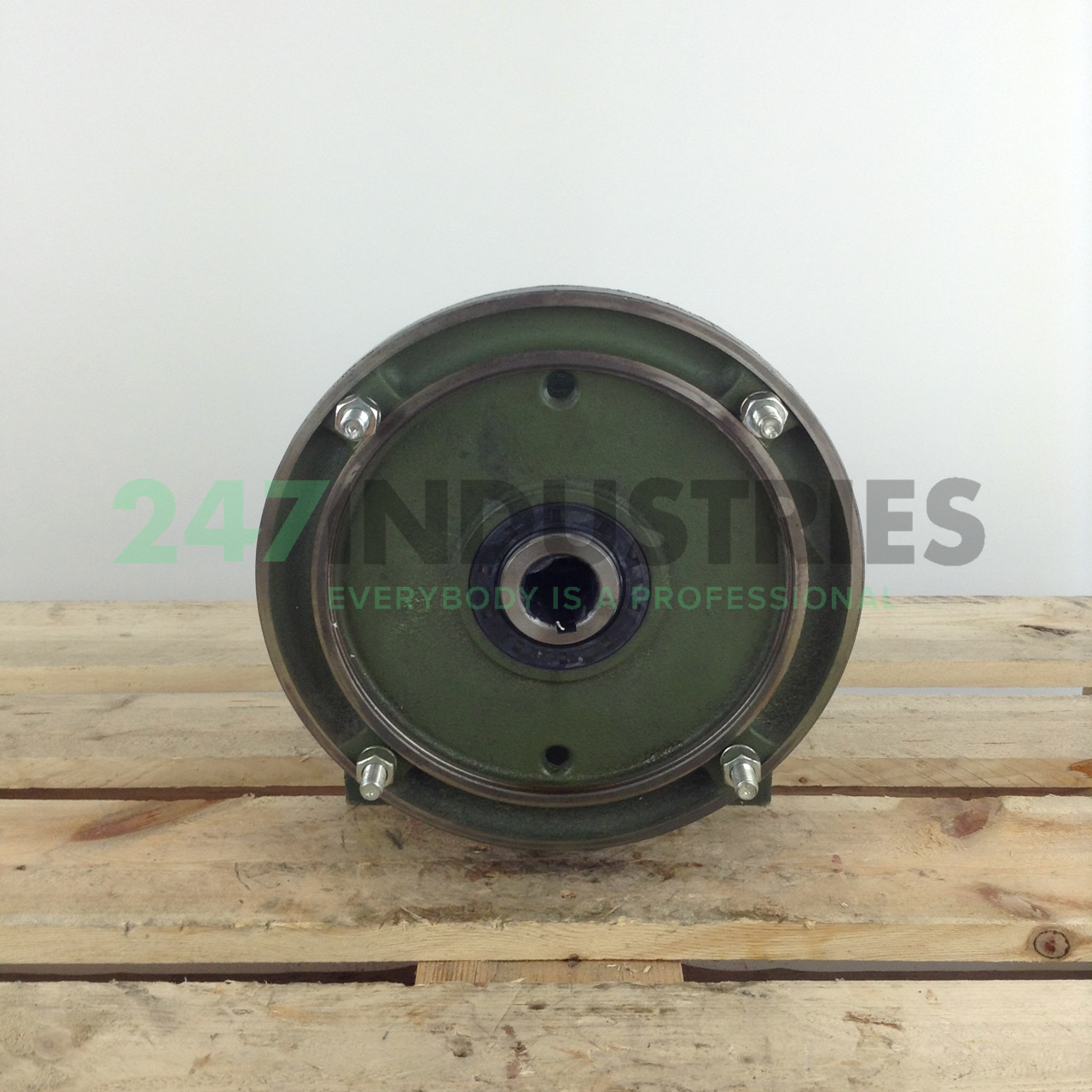

FRC240B3-132B5I5.5 Varvel

Technical details

1. Availability 0 pcs
2. Brand Varvel
3. Item number FRC240B3-132B5I5.5 Varvel
4. Category Gearboxes

Weight and Dimensions

1. Weight (kg) 36.3

Product Properties

1. Mounting B5 (outer flange)
2. Gear ratio i = n1/n2 6
3. IEC Framesize 132

Detailed Product Properties

1. IEC Framesize 132
2. Shaft diameter (mm) 38
3. Shaft height IEC in JDE 132
4. Shaft length (mm) 80
5. Shaft key width (mm) 10
6. Shaft key length (mm) 70
7. Thread shaft bore M12
8. Shaft height, B3 mounted (mm) 132
9. Width foot holes, B3 mounted (mm) 216
10. Length foot holes, B3 mounted (mm) S=286, M=311
11. Diameter foot holes (mm) 12
12. Outer diameter flange B5/V1/B35/V3 (mm) 300
13. Spigot B5/V1/B35/V3 (mm) 230
14. Pitch circle diameter B5/V1/B35/V3 (mm) 265
15. Number of flange holes 4
16. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
17. Pitch circle diameter B14/B34/V18/V19 (mm) 165
18. Thread flange holes B14/B34/V18/V19 M10
19. Outer diameter flange B14/B34/V18/V19 (mm) 200
20. Spigot B14/B34/V18/V19 (mm) 130
