FRC210B3-71B5I20 Varvel

€ 82,64 ex VAT
€ 100,00 in VAT
€ 100,00 in VAT
€ 82,64 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

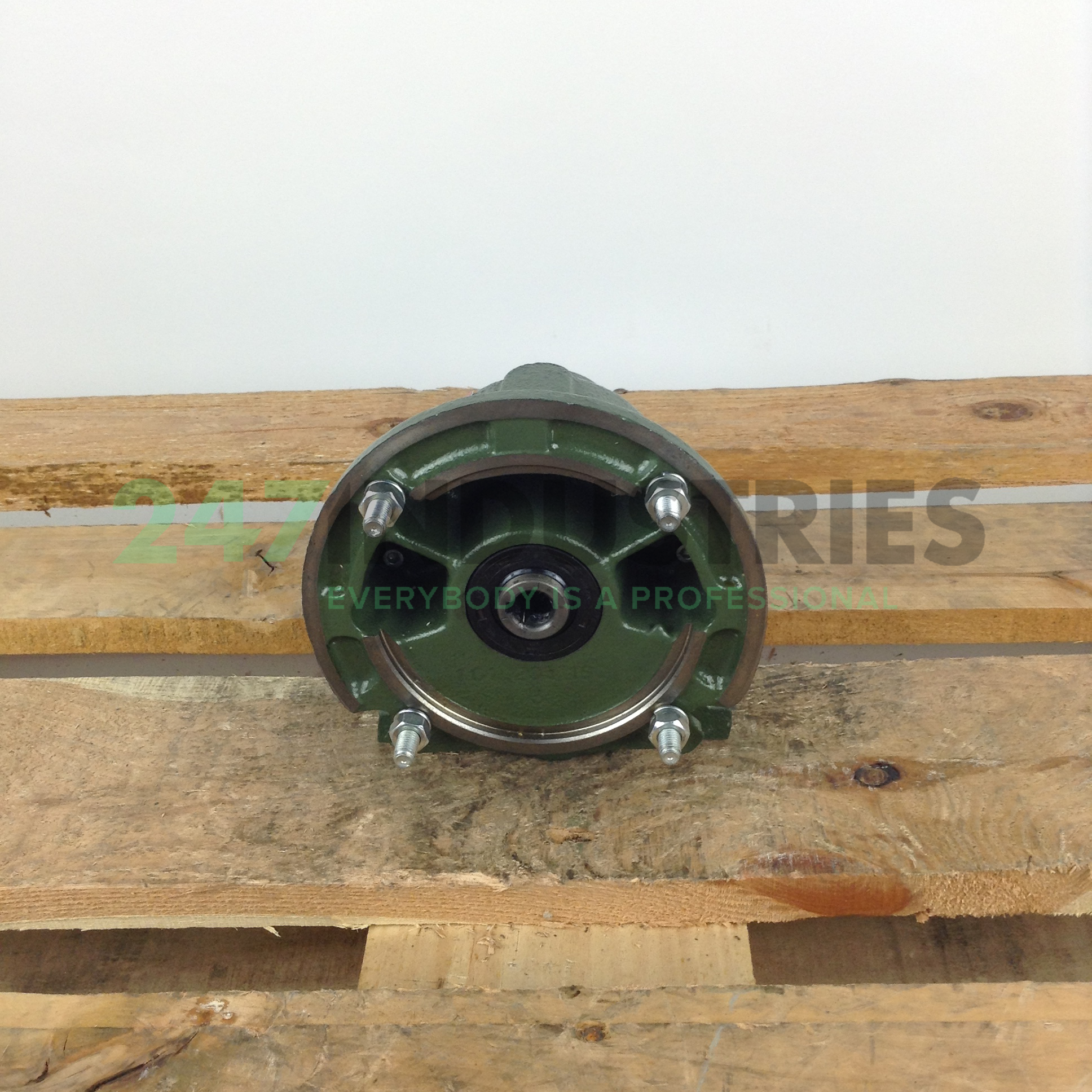

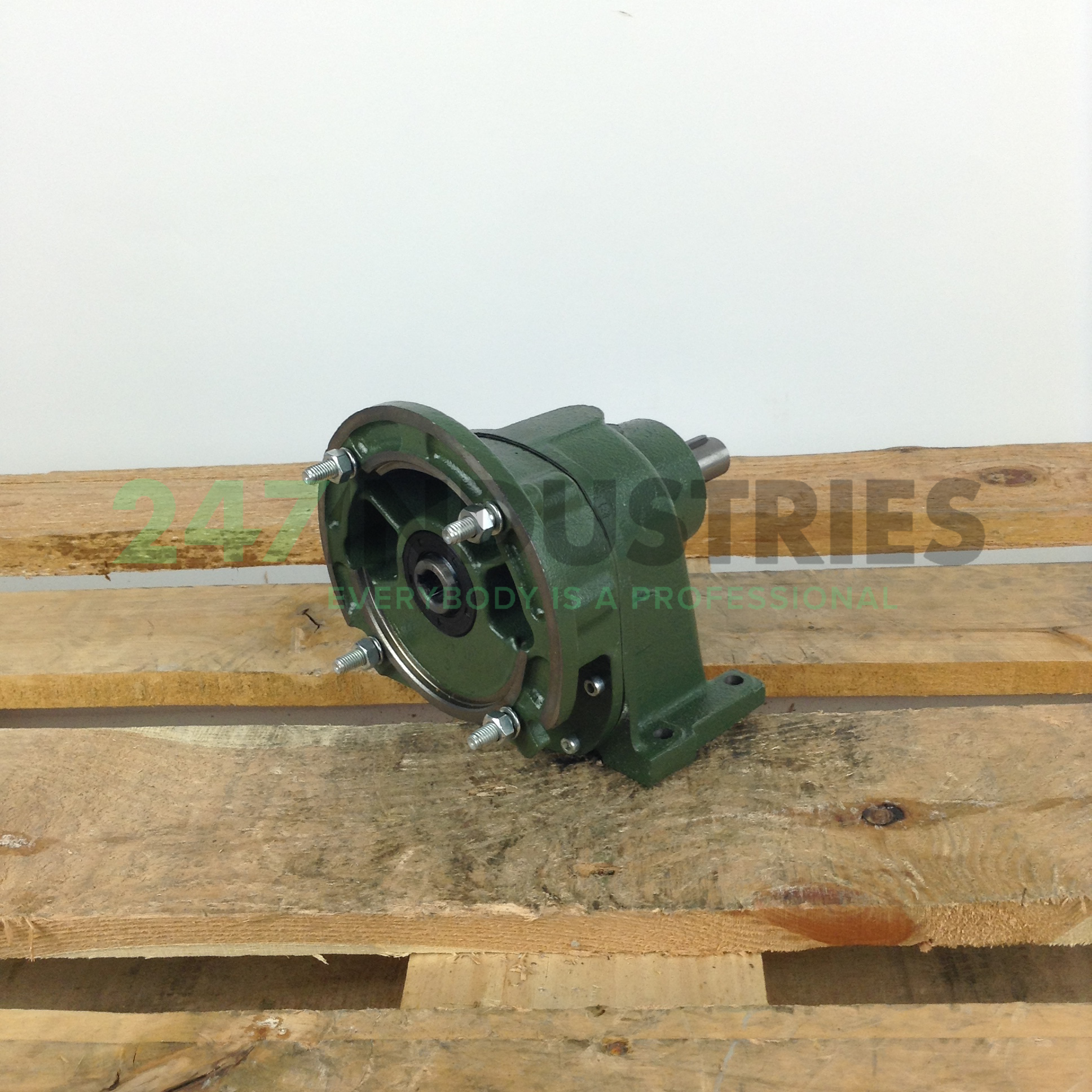

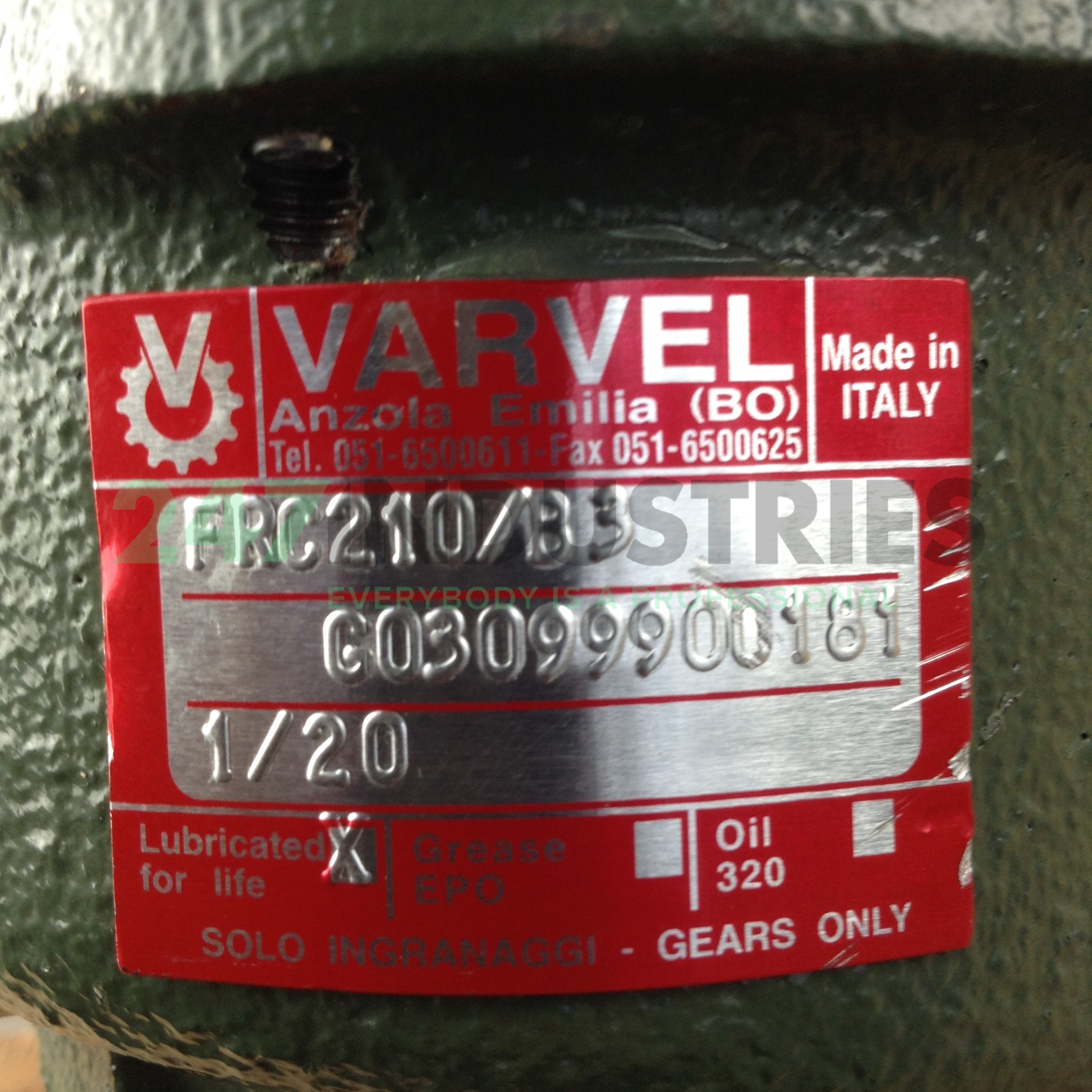

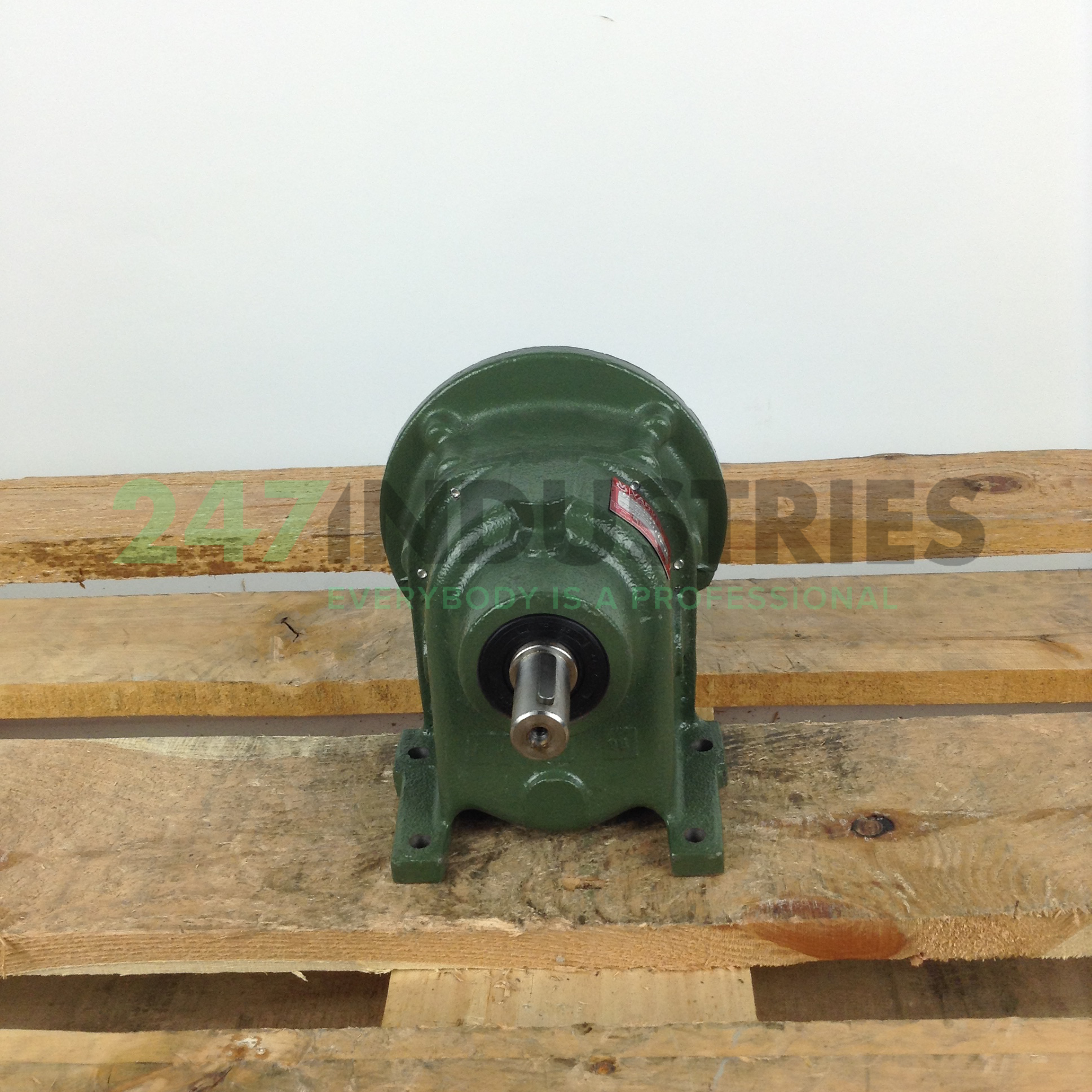

FRC210B3-71B5I20 Varvel

Helical gearunit 71-B5 i=20

Stock
2 pcs in stock and ready for shipment
Brand Varvel
Article number FRC210B3-71B5I20 Varvel
Mounting B5 (outer flange)
Product description
Help with this product

Similar to: FRC210B3-71B5I20 Varvel

Loading similair products

Product specifications

Technical details

  1. Availability 2 pcs
  2. Brand Varvel
  3. Item number FRC210B3-71B5I20 Varvel
  4. Category Gearboxes

Weight and Dimensions

  1. Weight (kg) 6.85

Product Properties

  1. Mounting B5 (outer flange)
  2. Gear ratio i = n1/n2 20
  3. IEC Framesize 71

Detailed Product Properties

  1. IEC Framesize 71
  2. Shaft diameter (mm) 14
  3. Shaft height IEC in JDE 071
  4. Shaft length (mm) 30
  5. Shaft key width (mm) 5
  6. Shaft key length (mm) 22
  7. Thread shaft bore M5
  8. Shaft height, B3 mounted (mm) 71
  9. Width foot holes, B3 mounted (mm) 112
  10. Length foot holes, B3 mounted (mm) 90
  11. Diameter foot holes (mm) 7
  12. Outer diameter flange B5/V1/B35/V3 (mm) 160
  13. Spigot B5/V1/B35/V3 (mm) 110
  14. Pitch circle diameter B5/V1/B35/V3 (mm) 130
  15. Number of flange holes 4
  16. Diameter flange holes B5/V1/B35/V3 (mm) 10
  17. Pitch circle diameter B14/B34/V18/V19 (mm) 85
  18. Thread flange holes B14/B34/V18/V19 M6
  19. Outer diameter flange B14/B34/V18/V19 (mm) 105
  20. Spigot B14/B34/V18/V19 (mm) 70
