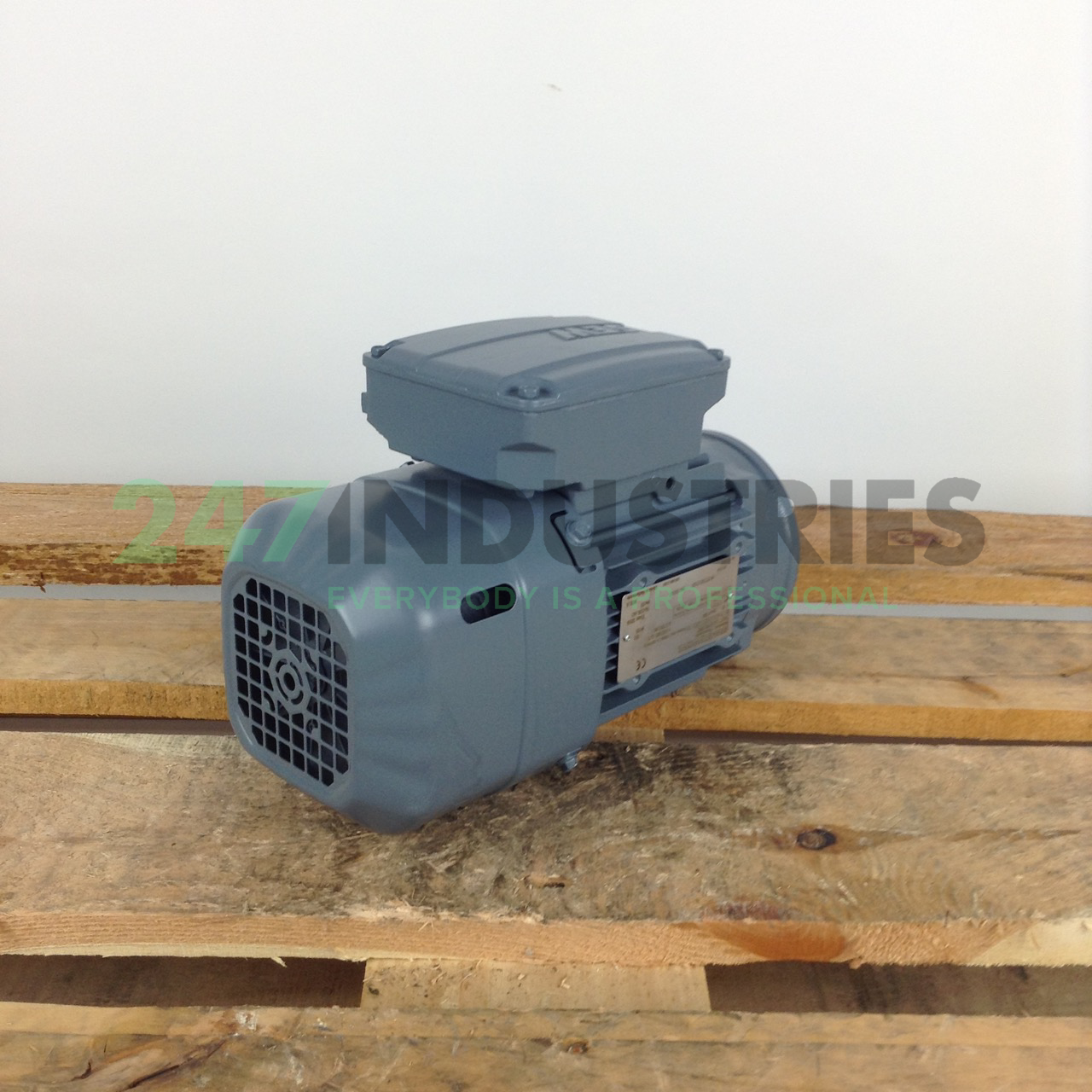

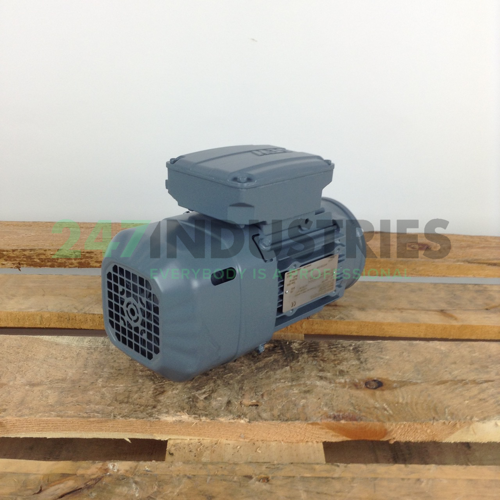

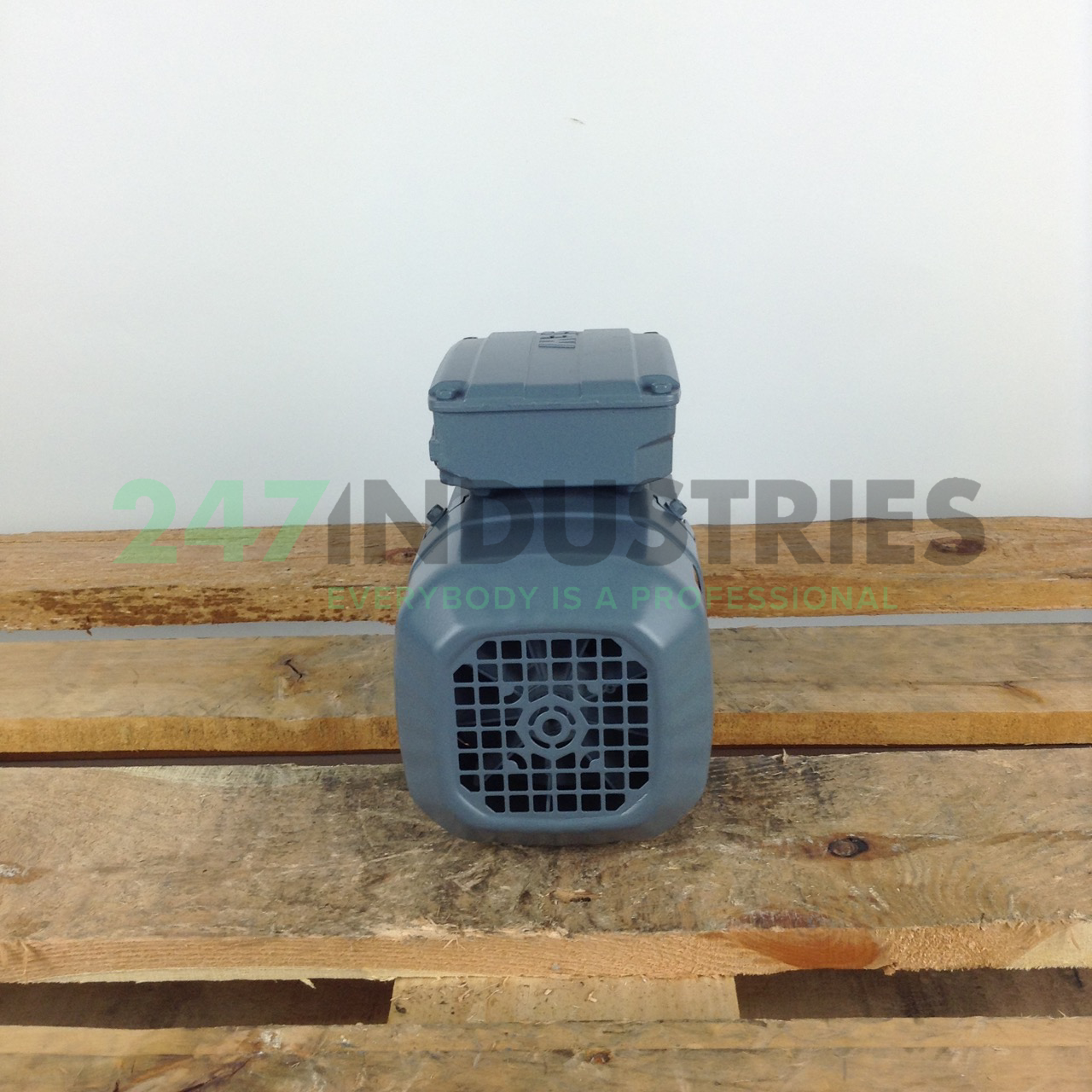

DRS71M4BE1/FT SEW-EURODRIVE

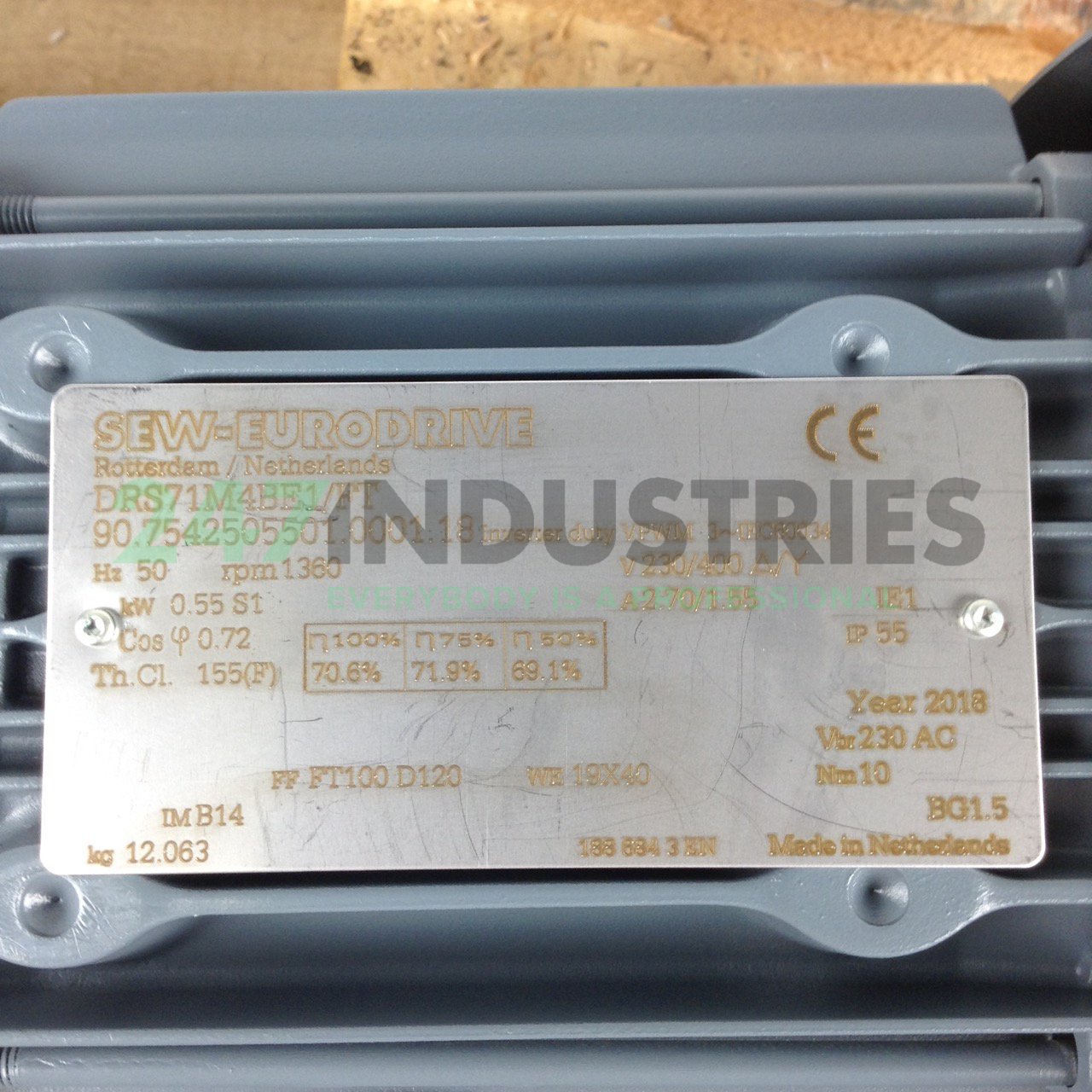

71-4P 0,55kW 230/400V B14 ALU Brake 90.7542505501.0001.18

Stock
not in stock
Brand SEW-EURODRIVE
Article number DRS71M4BE1/FT SEW-EURODRIVE
Rated power 0.55kW

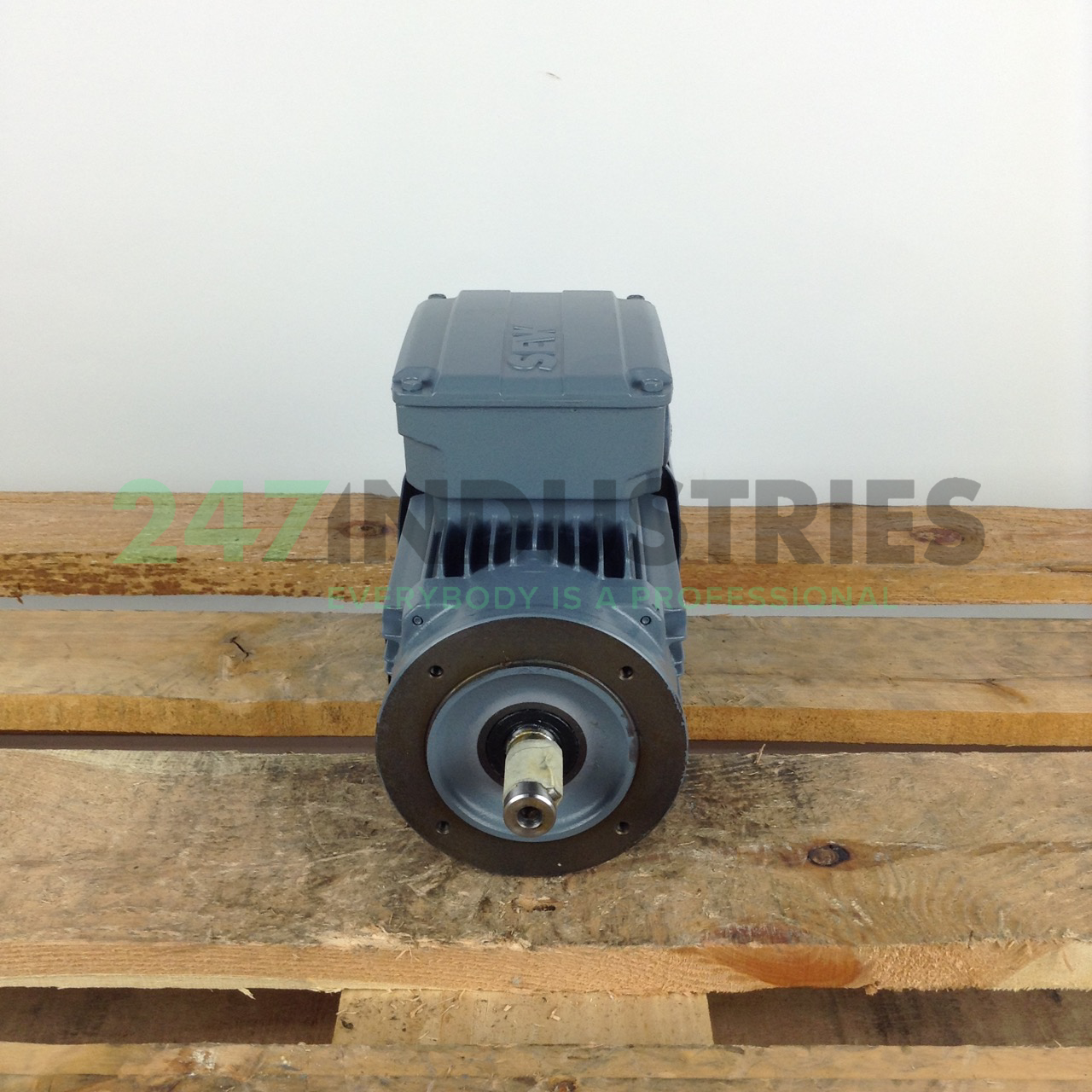

Mounting B14 (inner flange)
Frequency 50/60 Hz
Speed (RPM) 1500 / 4-Poles
Product description
Read more Show less
Help with this product

Similar to: DRS71M4BE1/FT SEW-EURODRIVE

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand SEW-EURODRIVE
  3. Item number DRS71M4BE1/FT SEW-EURODRIVE
  4. Category Brake Motors

Weight and Dimensions

  1. Weight (kg) 12

Product Properties

  1. Rated power (kW) 0.55
  2. Speed at 50Hz (rpm) 1500 / 4-Poles
  3. Frequency 50/60 Hz
  4. Energy efficiency IE1 = standard = EFF2
  5. Mounting B14 (inner flange)
  6. Brake AC Brake
  7. IP Class IP55
  8. Explosion safety (Atex) No protection
  9. IEC Framesize 71

Detailed Product Properties

  1. IEC Framesize 71
  2. Shaft diameter (mm) 14
  3. Shaft height IEC in JDE 071
  4. Shaft length (mm) 30
  5. Shaft key width (mm) 5
  6. Shaft key length (mm) 22
  7. Thread shaft bore M5
  8. Shaft height, B3 mounted (mm) 71
  9. Width foot holes, B3 mounted (mm) 112
  10. Length foot holes, B3 mounted (mm) 90
  11. Diameter foot holes (mm) 7
  12. Outer diameter flange B5/V1/B35/V3 (mm) 160
  13. Pitch circle diameter B5/V1/B35/V3 (mm) 130
  14. Number of flange holes 4
  15. Pitch circle diameter B14/B34/V18/V19 (mm) 85
  16. Thread flange holes B14/B34/V18/V19 M6
  17. Outer diameter flange B14/B34/V18/V19 (mm) 105
