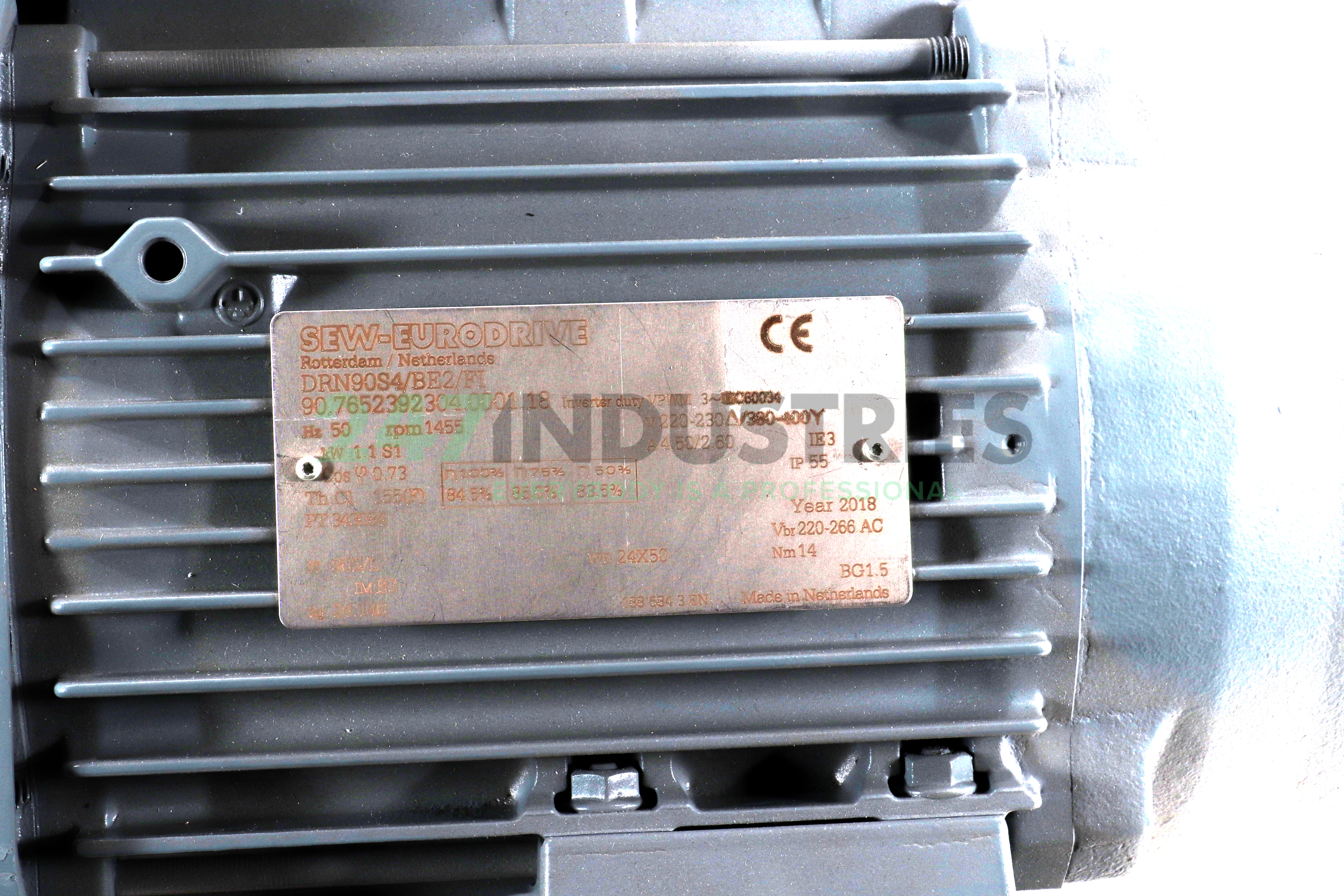

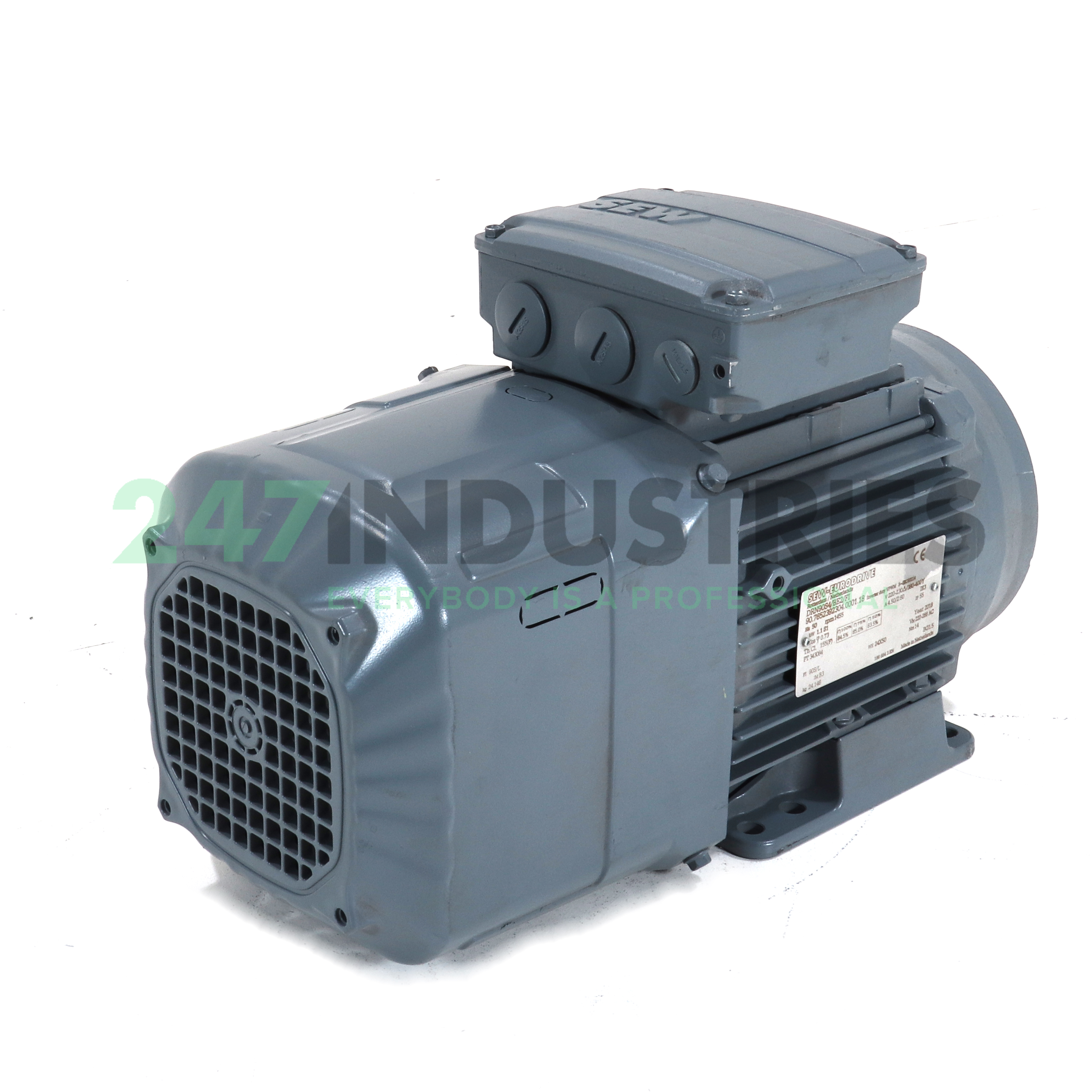

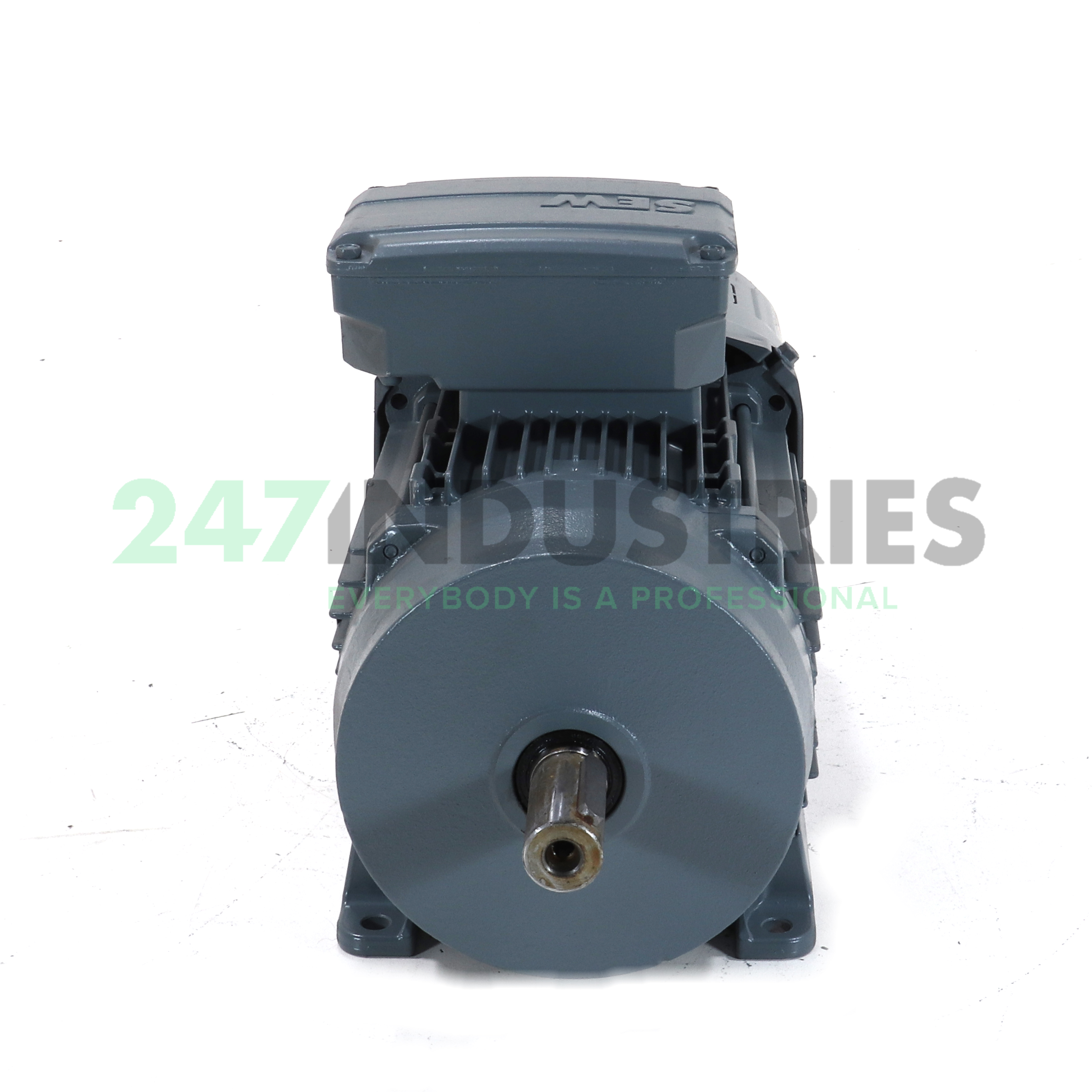

DRN90S4/BE2/FI SEW-EURODRIVE

Technical details

1. Availability 0 pcs
2. Brand SEW-EURODRIVE
3. Item number DRN90S4/BE2/FI SEW-EURODRIVE
4. Category Brake Motors

Weight and Dimensions

1. Weight (kg) 25

Product Properties

1. Rated power (kW) 1.1
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50 Hz
4. Energy efficiency IE3 = Premium
5. Mounting B3 / 1M1001 (foot)
6. Brake AC Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 90

Detailed Product Properties

1. Voltage 220-230VD / 380-400VY
2. Housing material Alu
3. AC/DC AC
4. Standard IEC
