CMRV30-63B14I10 Cemer

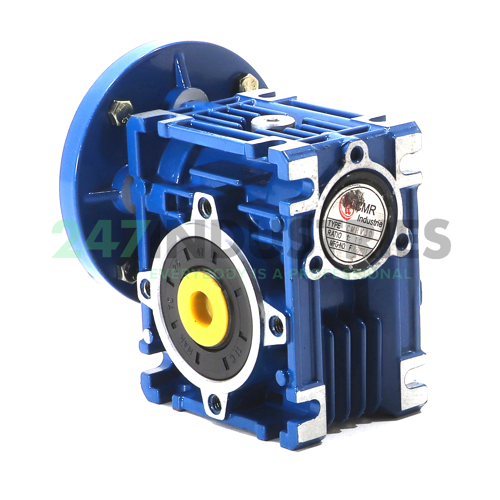

Wormgear 63-B14 i=10

Stock
1 pc in stock and ready for shipment
Brand Cemer
Article number CMRV30-63B14I10 Cemer
Mounting B14 (inner flange)
Product description
Read more Show less
Help with this product

Similar to: CMRV30-63B14I10 Cemer

Loading similair products

Product specifications

Technical details

  1. Availability 1 pc
  2. Brand Cemer
  3. Item number CMRV30-63B14I10 Cemer
  4. Category Gearboxes

Weight and Dimensions

  1. Weight (kg) 1.3

Product Properties

  1. Mounting B14 (inner flange)
  2. Gear ratio i = n1/n2 10
  3. IEC Framesize 63

Detailed Product Properties

  1. IEC Framesize 63
  2. Shaft diameter (mm) 11
  3. Shaft height IEC in JDE 063
  4. Shaft length (mm) 23
  5. Shaft key width (mm) 4
  6. Shaft key length (mm) 16
  7. Thread shaft bore M4
  8. Shaft height, B3 mounted (mm) 63
  9. Width foot holes, B3 mounted (mm) 100
  10. Length foot holes, B3 mounted (mm) 80
  11. Diameter foot holes (mm) 7
  12. Outer diameter flange B5/V1/B35/V3 (mm) 140
  13. Spigot B5/V1/B35/V3 (mm) 95
  14. Pitch circle diameter B5/V1/B35/V3 (mm) 115
  15. Number of flange holes 4
  16. Diameter flange holes B5/V1/B35/V3 (mm) 10
  17. Pitch circle diameter B14/B34/V18/V19 (mm) 75
  18. Thread flange holes B14/B34/V18/V19 M5
  19. Outer diameter flange B14/B34/V18/V19 (mm) 90
  20. Spigot B14/B34/V18/V19 (mm) 60
