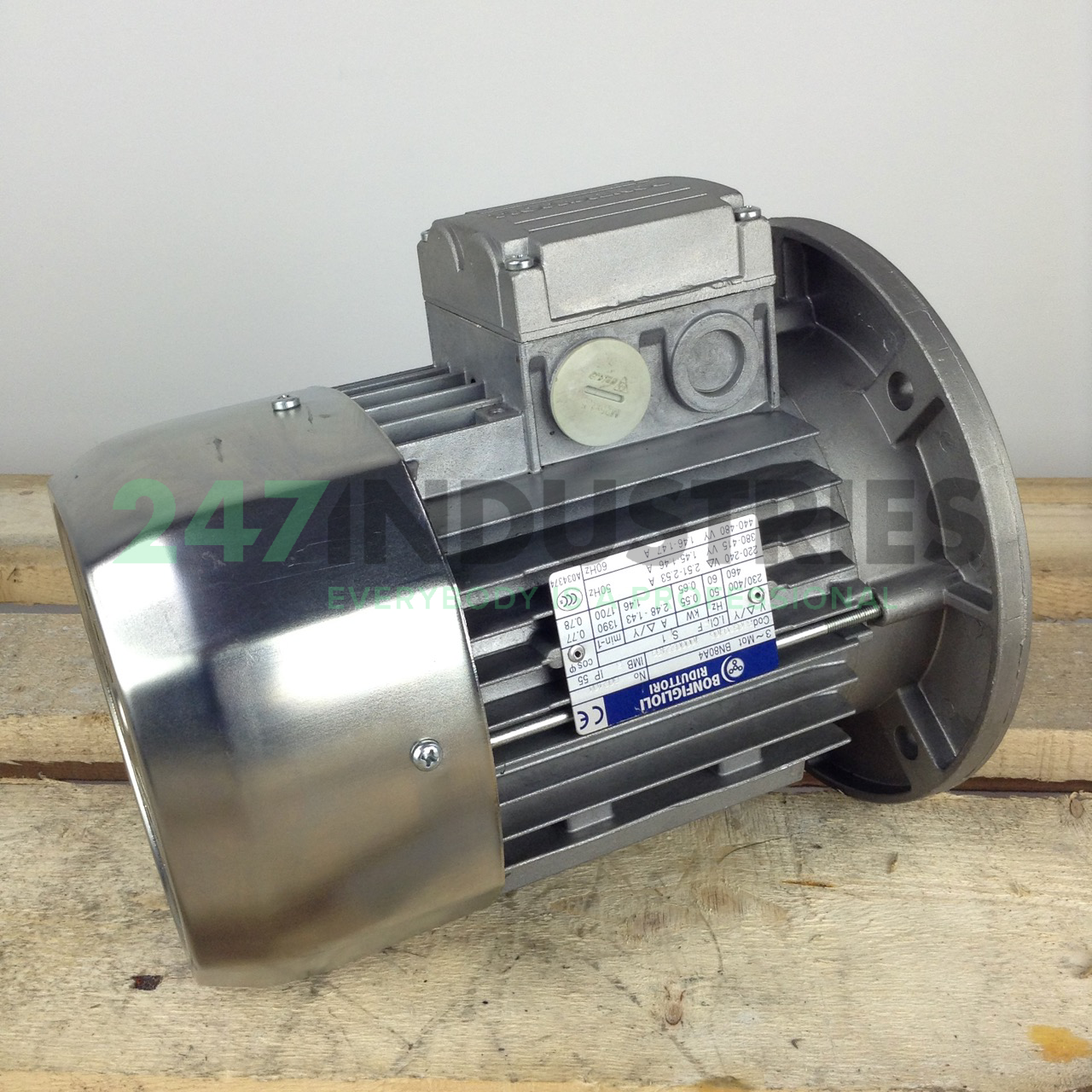

BN80A4B5 Bonfiglioli

Technical details

1. Availability 0 pcs
2. Brand Bonfiglioli
3. Item number BN80A4B5 Bonfiglioli
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 8.32

Product Properties

1. Rated power (kW) 0.55
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50/60 Hz
4. Energy efficiency Not applicable

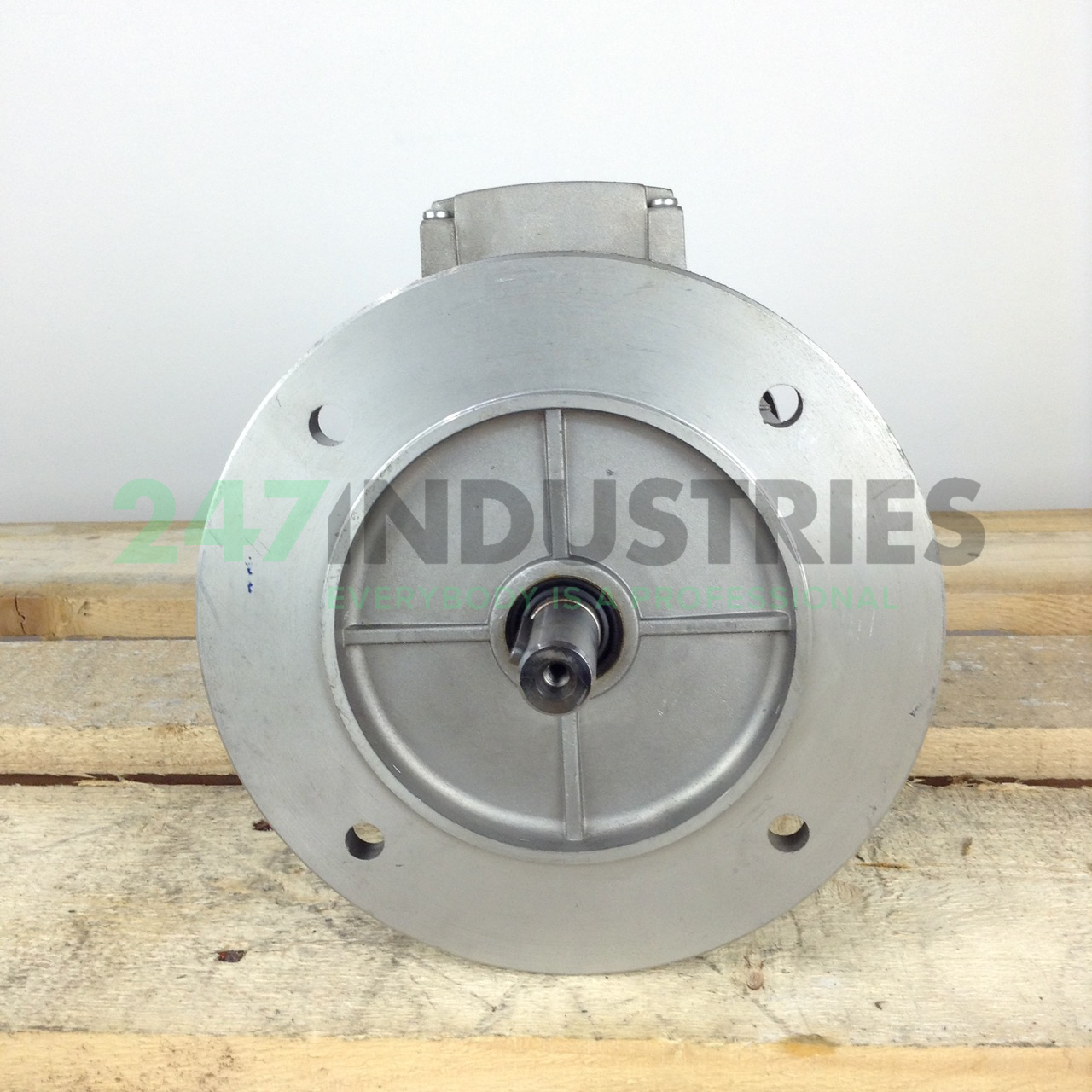

5. Mounting B5 (outer flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 80

Detailed Product Properties

1. Shaft diameter (mm) 19
2. Shaft height IEC in JDE 080
3. Shaft length (mm) 40
4. Shaft key width (mm) 6
5. Shaft key length (mm) 32
6. Thread shaft bore M6
7. Shaft height, B3 mounted (mm) 80
8. Width foot holes, B3 mounted (mm) 125
9. Outer diameter flange B5/V1/B35/V3 (mm) 200
10. Pitch circle diameter B5/V1/B35/V3 (mm) 165
11. Pitch circle diameter B14/B34/V18/V19 (mm) 100
12. Thread flange holes B14/B34/V18/V19 M6
13. Outer diameter flange B14/B34/V18/V19 (mm) 120
