AQ30180L4B3 Cemp

970,20 ex VAT
€ 1.173,94 incl. VAT
€ 1.173,94 incl. VAT
970,20 ex VAT
Temporarily sold out
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

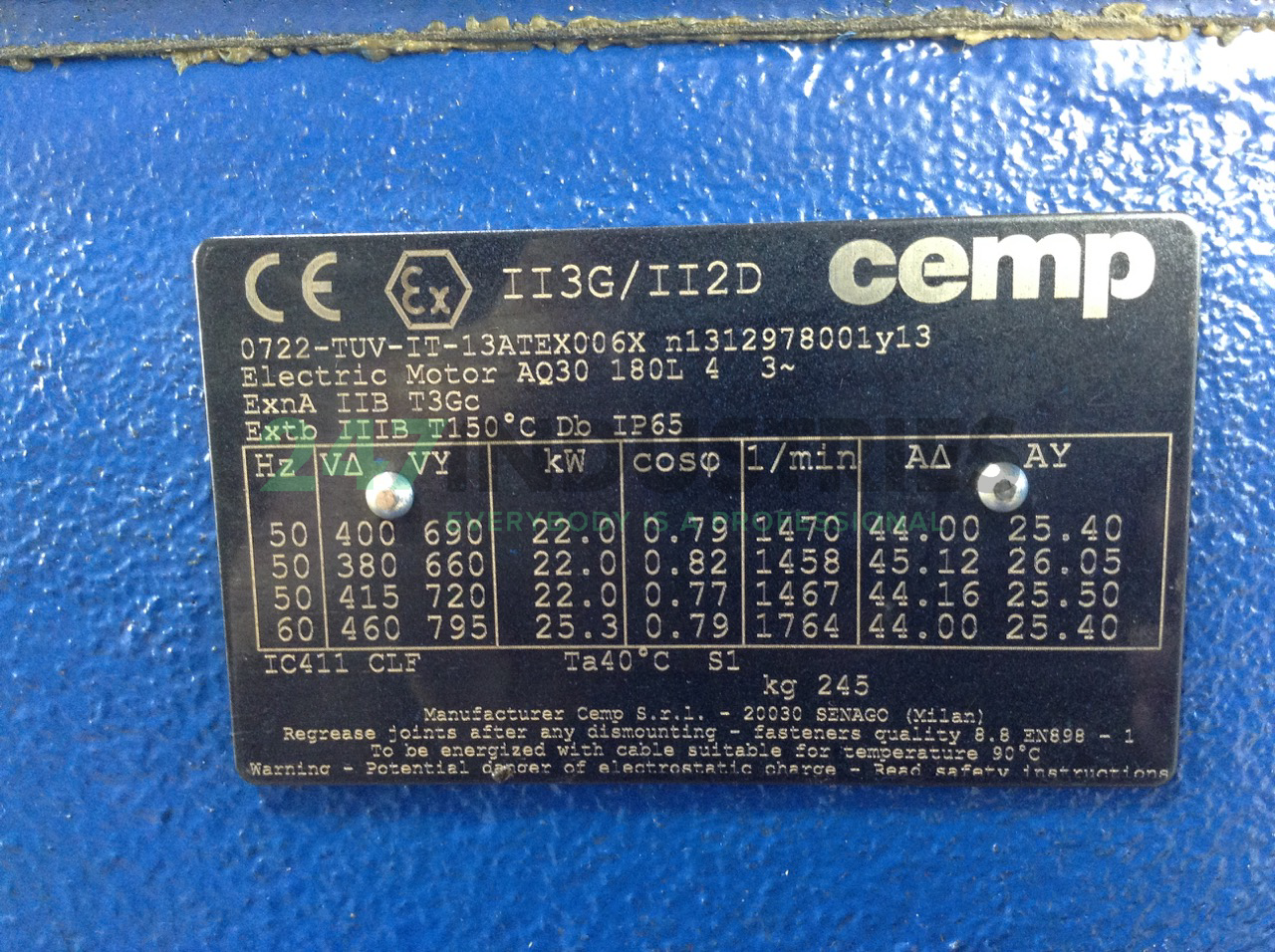

AQ30180L4B3 Cemp

180-4P 22kW 400/690V B3 CI

Stock
not in stock
Brand Cemp
Article number AQ30180L4B3 Cemp
Rated power 22kW
Mounting B3 / 1M1001 (foot)
Frequency 50/60 Hz
Speed (RPM) 1500 / 4-Poles
Product description
Read more Show less
Help with this product

Similar to: AQ30180L4B3 Cemp

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Cemp
  3. Item number AQ30180L4B3 Cemp
  4. Category Atex Motors

Weight and Dimensions

  1. Weight (kg) 245

Product Properties

  1. Rated power (kW) 22
  2. Speed at 50Hz (rpm) 1500 / 4-Poles
  3. Frequency 50/60 Hz
  4. Energy efficiency Not applicable
  5. Mounting B3 / 1M1001 (foot)
  6. Brake No Brake
  7. IP Class IP65
  8. Explosion safety (Atex) Zone 1 and 2
  9. IEC Framesize 180

Detailed Product Properties

  1. Voltage 380-400VD / 660-690VY
  2. IEC Framesize 180
  3. Shaft diameter (mm) 48
  4. Housing material Cast Iron
  5. AC/DC AC
  6. Standard IEC
  7. Shaft height IEC in JDE 180
  8. Shaft length (mm) 110
  9. Shaft key width (mm) 14
  10. Shaft key length (mm) 100
  11. Thread shaft bore M16
  12. Shaft height, B3 mounted (mm) 180
  13. Width foot holes, B3 mounted (mm) 279
  14. Length foot holes, B3 mounted (mm) S=286, M=311
  15. Diameter foot holes (mm) 15
  16. Outer diameter flange B5/V1/B35/V3 (mm) 350
  17. Spigot B5/V1/B35/V3 (mm) 250
  18. Pitch circle diameter B5/V1/B35/V3 (mm) 300
  19. Number of flange holes 4
  20. Diameter flange holes B5/V1/B35/V3 (mm) 18.5
Show all details Show less
