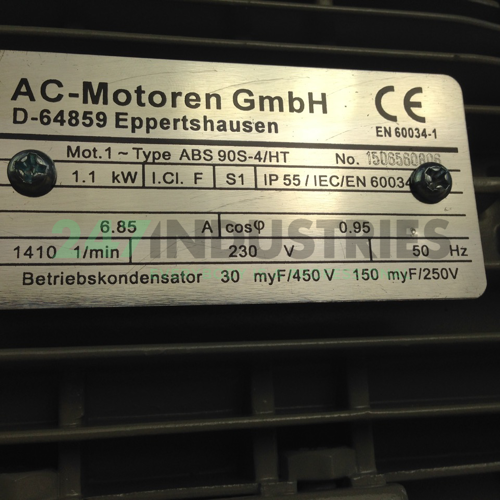

ABS90S-4/HTB3 AC-Motoren GmbH

Technical details

1. Availability 1 pc
2. Brand AC-Motoren GmbH
3. Item number ABS90S-4/HTB3 AC-Motoren GmbH
4. Category 1-Phase Motors

Weight and Dimensions

1. Weight (kg) 13

Product Properties

1. Rated power (kW) 1.1
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50 Hz
4. Energy efficiency Not applicable
5. Mounting B3 / 1M1001 (foot)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 90

Detailed Product Properties

1. IEC Framesize 90
2. Shaft diameter (mm) 24
3. Housing material Alu
4. AC/DC AC
5. Standard IEC
6. Shaft height IEC in JDE 090
7. Shaft length (mm) 50
8. Shaft key width (mm) 8
9. Shaft key length (mm) 40
10. Thread shaft bore M8
11. Shaft height, B3 mounted (mm) 90
12. Width foot holes, B3 mounted (mm) 140
13. Length foot holes, B3 mounted (mm) S=286, M=311
14. Diameter foot holes (mm) 10
15. Outer diameter flange B5/V1/B35/V3 (mm) 200
16. Spigot B5/V1/B35/V3 (mm) 130
17. Pitch circle diameter B5/V1/B35/V3 (mm) 165
18. Number of flange holes 4
19. Diameter flange holes B5/V1/B35/V3 (mm) 12
20. Pitch circle diameter B14/B34/V18/V19 (mm) 115
21. Thread flange holes B14/B34/V18/V19 M8
22. Outer diameter flange B14/B34/V18/V19 (mm) 140
23. Spigot B14/B34/V18/V19 (mm) 95
