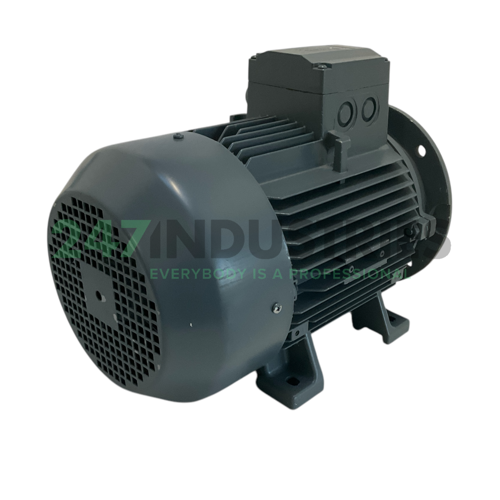

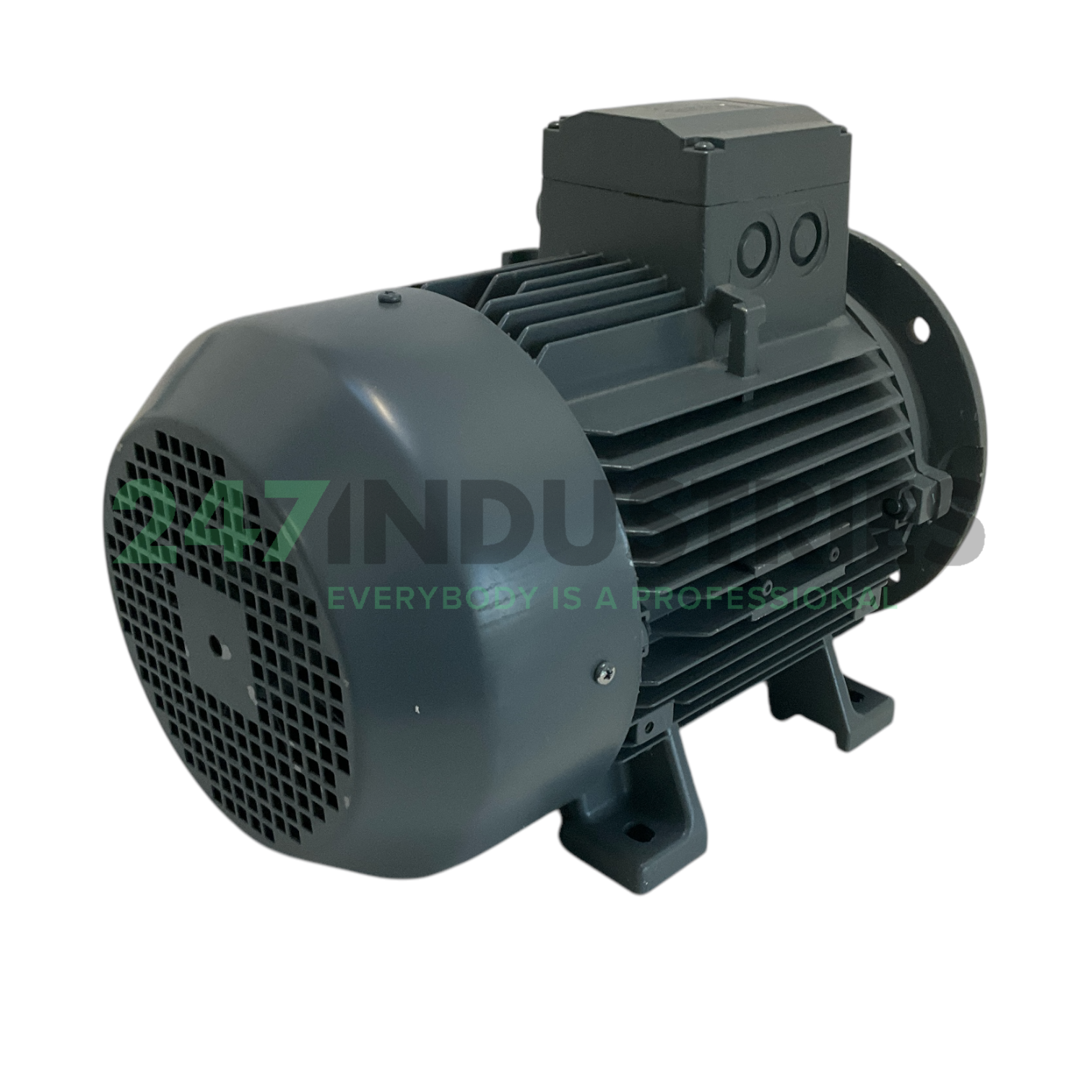

AAH132S2B-B35 BEGE

Technical details

1. Availability 0 pcs
2. Brand BEGE
3. Item number AAH132S2B-B35 BEGE
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 54

Product Properties

1. Rated power (kW) 7.5
2. Speed at 50Hz (rpm) 3000 / 2-Poles
3. Frequency 50/60 Hz
4. Energy efficiency IE2 = High = EFF1

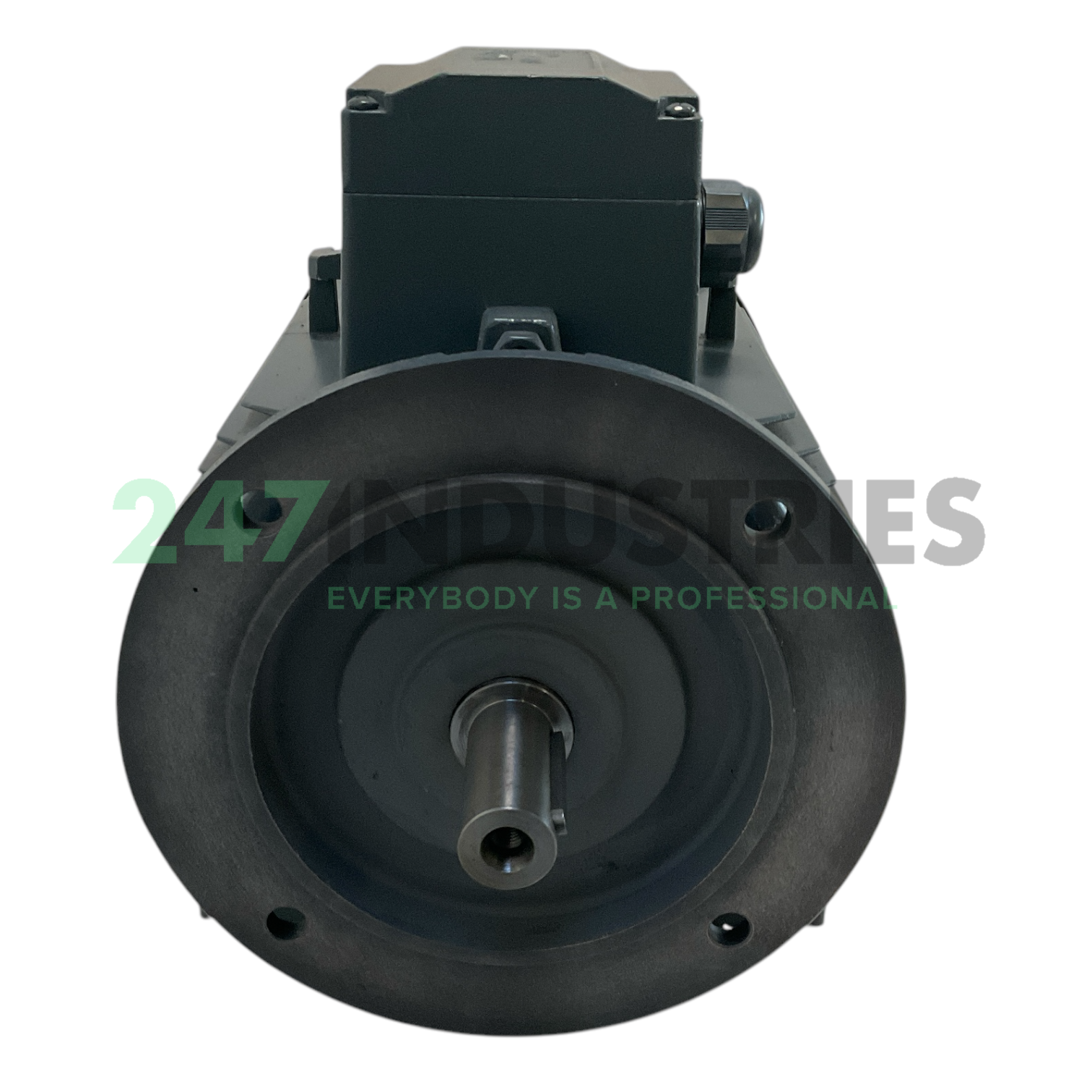

5. Mounting B35 (foot + outer flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 132

Detailed Product Properties

1. Voltage 220-230VD / 380-400VY
2. IEC Framesize 132
3. Shaft diameter (mm) 38
4. Housing material Alu
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 132
8. Shaft length (mm) 80
9. Shaft key width (mm) 10
10. Shaft key length (mm) 70
11. Thread shaft bore M12
12. Shaft height, B3 mounted (mm) 132
13. Width foot holes, B3 mounted (mm) 216
14. Length foot holes, B3 mounted (mm) S=286, M=311
15. Diameter foot holes (mm) 12
16. Outer diameter flange B5/V1/B35/V3 (mm) 300
17. Spigot B5/V1/B35/V3 (mm) 230
18. Pitch circle diameter B5/V1/B35/V3 (mm) 265
19. Number of flange holes 4
20. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
21. Pitch circle diameter B14/B34/V18/V19 (mm) 165
22. Thread flange holes B14/B34/V18/V19 M10
23. Outer diameter flange B14/B34/V18/V19 (mm) 200
24. Spigot B14/B34/V18/V19 (mm) 130
