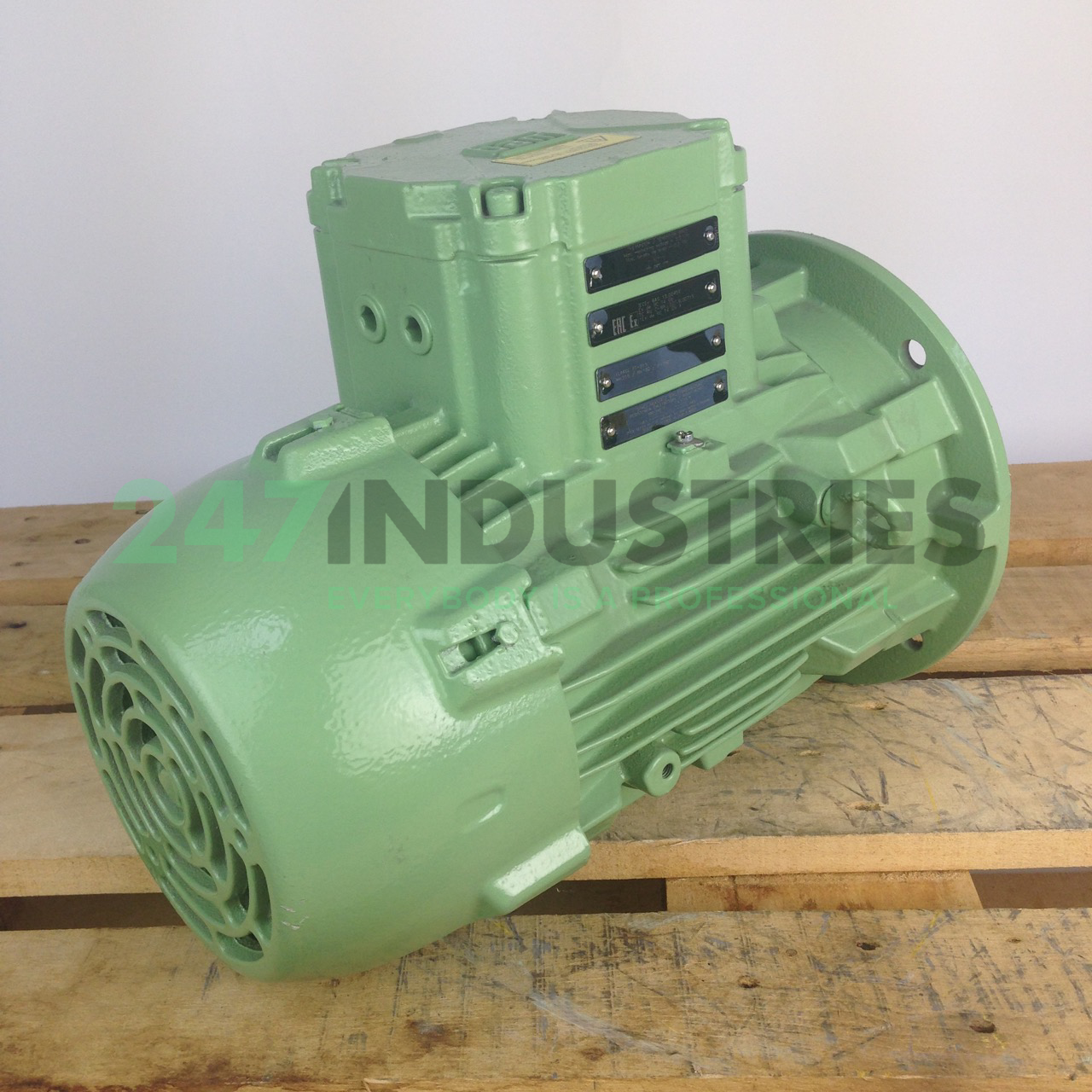

3K30CI2100L2B5EXDE WEG

Technical details

1. Availability 0 pcs
2. Brand WEG
3. Item number 3K30CI2100L2B5EXDE WEG
4. Category Atex Motors

Weight and Dimensions

1. Weight (kg) 57

Product Properties

1. Rated power (kW) 3
2. Speed at 50Hz (rpm) 3000 / 2-Poles
3. Frequency 60 Hz
4. Energy efficiency IE2 = High = EFF1
5. Mounting B5 (outer flange)
6. Brake No Brake
7. IP Class IP56
8. Explosion safety (Atex) Zone 1 and 2
9. IEC Framesize 100

Detailed Product Properties

1. Voltage All other voltages
2. IEC Framesize 100
3. Shaft diameter (mm) 28
4. Housing material Cast Iron
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 100
8. Shaft length (mm) 60
9. Shaft key width (mm) 8
10. Shaft key length (mm) 50
11. Thread shaft bore M10
12. Shaft height, B3 mounted (mm) 100
13. Width foot holes, B3 mounted (mm) 160
14. Length foot holes, B3 mounted (mm) S=286, M=311
15. Diameter foot holes (mm) 12
16. Outer diameter flange B5/V1/B35/V3 (mm) 250
17. Spigot B5/V1/B35/V3 (mm) 180
18. Pitch circle diameter B5/V1/B35/V3 (mm) 215
19. Number of flange holes 4
20. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
21. Pitch circle diameter B14/B34/V18/V19 (mm) 130
22. Thread flange holes B14/B34/V18/V19 M8
23. Outer diameter flange B14/B34/V18/V19 (mm) 160
24. Spigot B14/B34/V18/V19 (mm) 110
