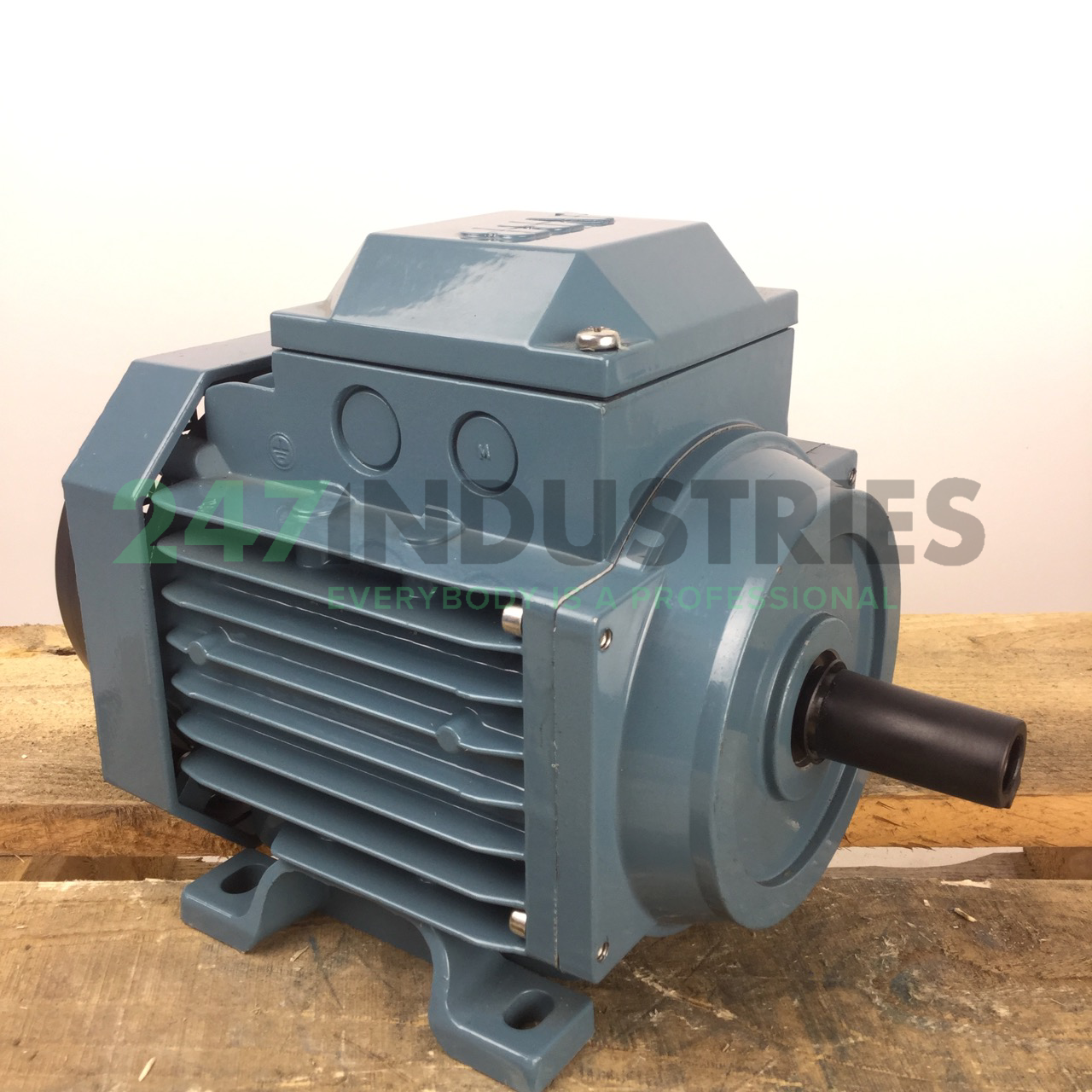

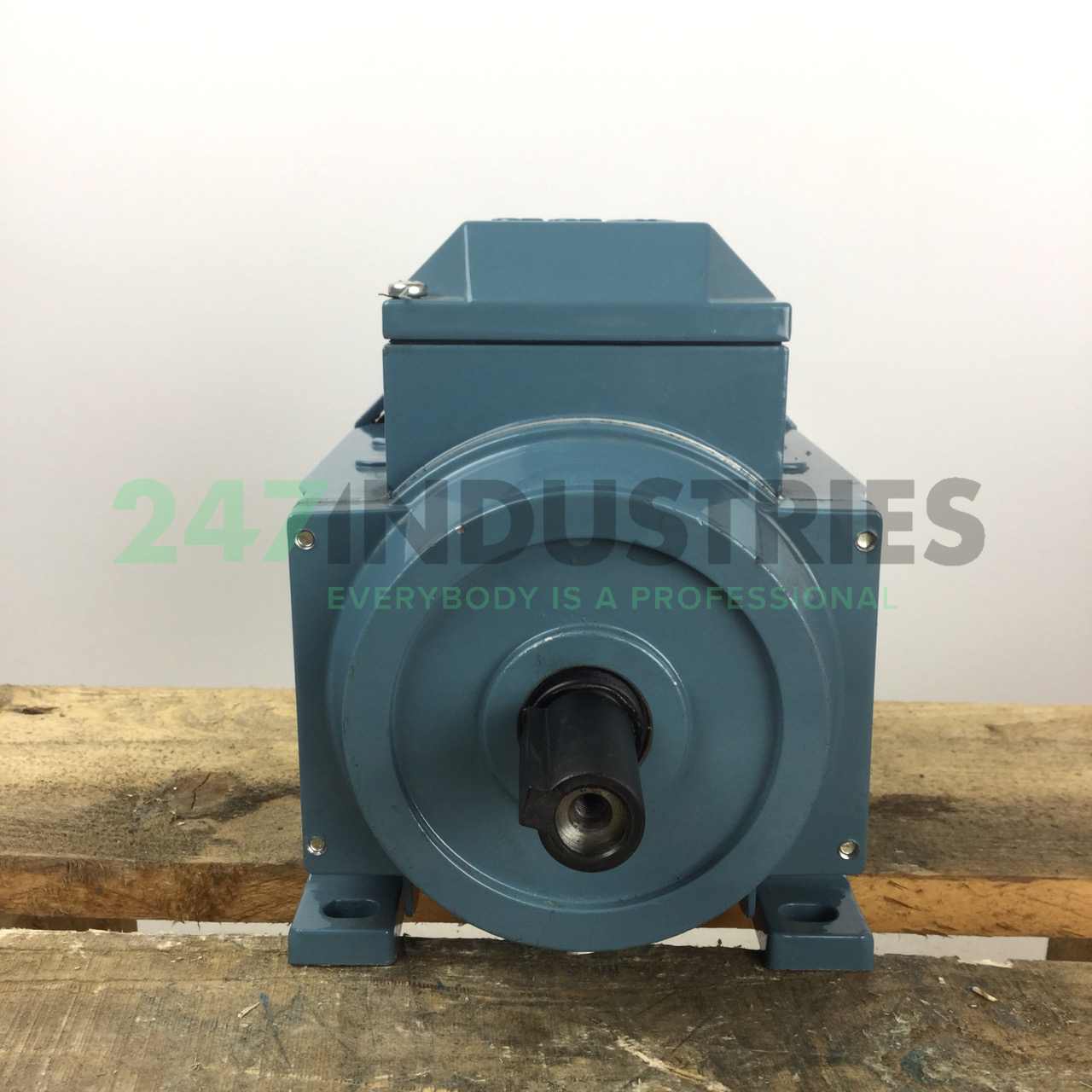

3GVA081003-ASB ABB

Technical details

1. Availability 0 pcs
2. Brand ABB
3. Item number 3GVA081003-ASB ABB
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 11

Product Properties

1. Rated power (kW) 1.5
2. Speed at 50Hz (rpm) 3000 / 2-Poles
3. Frequency 50/60 Hz
4. Energy efficiency Not applicable
5. Mounting B3 / 1M1001 (foot)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 80

Detailed Product Properties

1. Shaft diameter (mm) 19
2. Shaft height IEC in JDE 080
3. Shaft length (mm) 40
4. Shaft key width (mm) 6
5. Shaft key length (mm) 32
6. Thread shaft bore M6
7. Shaft height, B3 mounted (mm) 80
8. Width foot holes, B3 mounted (mm) 125
9. Length foot holes, B3 mounted (mm) 100
10. Outer diameter flange B5/V1/B35/V3 (mm) 200
11. Pitch circle diameter B5/V1/B35/V3 (mm) 165
12. Number of flange holes 4
13. Pitch circle diameter B14/B34/V18/V19 (mm) 100
14. Thread flange holes B14/B34/V18/V19 M6
15. Outer diameter flange B14/B34/V18/V19 (mm) 120
