3F3A-80MB-2B35 Felstrom

146,77 ex VAT
€ 177,59 incl. VAT
€ 177,59 incl. VAT
146,77 ex VAT
5 similar products for 3F3A-80MB-2B35 Felstrom in stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

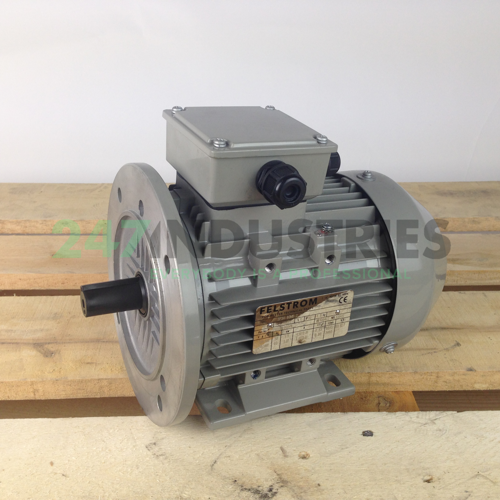

3F3A-80MB-2B35 Felstrom

80-2P 1,1kW 230/400V B35 AL

Stock
not in stock
Brand Felstrom
Article number 3F3A-80MB-2B35 Felstrom
Rated power 1.1kW
Mounting B35 (foot + outer flange)
Frequency 50/60 Hz
Speed (RPM) 3000 / 2-Poles
Product description

The 3F3A-80MB-2B35 Felstrom has no unwelcome surprises in store. The solid, versatile design guarantees top performance in a variety of situations. Its integrated PTC resistors protect this electric motor against overloads. In addition, this Felstrom motor with B35 mounting position has removable feet. By removing the feet, this type can also be used as a motor with a B5 mounting position. There is no price difference between the B35 and B5 version of this motor.

Felstrom electric motors combine their secure and solid construction with a very friendly price level. They also work extremely efficiently. All Felstrom motors have the highest possible efficiency class per power category and fully comply with European regulations. With the 3F3A-80MB-2B35 Felstrom you choose for carefree ease-of-use and an excellent price/quality ratio.

Read more Show less
Help with this product

Downloads and links

Similar to: 3F3A-80MB-2B35 Felstrom

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Felstrom
  3. Item number 3F3A-80MB-2B35 Felstrom
  4. EAN 8719735000453
  5. Category 3-Phase Motors

Weight and Dimensions

  1. Weight (kg) 12.5

Product Properties

  1. Rated power (kW) 1.1
  2. Speed at 50Hz (rpm) 3000 / 2-Poles
  3. Frequency 50/60 Hz
  4. Energy efficiency IE3 = Premium
  5. Mounting B35 (foot + outer flange)
  6. Brake No Brake
  7. IP Class IP55
  8. Explosion safety (Atex) No protection
  9. IEC Framesize 80

Detailed Product Properties

  1. Voltage 220-230VD / 380-400VY
  2. IEC Framesize 80
  3. Shaft diameter (mm) 19
  4. Housing material Alu
  5. AC/DC AC
  6. Standard IEC
  7. Shaft height IEC in JDE 080
  8. Shaft length (mm) 40
  9. Shaft key width (mm) 6
  10. Shaft key length (mm) 32
  11. Thread shaft bore M6
  12. Shaft height, B3 mounted (mm) 80
  13. Width foot holes, B3 mounted (mm) 125
  14. Length foot holes, B3 mounted (mm) 100
  15. Diameter foot holes (mm) 9.5
  16. Outer diameter flange B5/V1/B35/V3 (mm) 200
  17. Spigot B5/V1/B35/V3 (mm) 130
  18. Pitch circle diameter B5/V1/B35/V3 (mm) 165
  19. Number of flange holes 4
  20. Diameter flange holes B5/V1/B35/V3 (mm) 12
  21. Pitch circle diameter B14/B34/V18/V19 (mm) 100
  22. Thread flange holes B14/B34/V18/V19 M6
  23. Outer diameter flange B14/B34/V18/V19 (mm) 120
  24. Spigot B14/B34/V18/V19 (mm) 80

Downloads and links

  1. Product datasheet Product datasheet
Show all details Show less
