3F3A-160MA-2B35 Felstrom

160-2P 11kW 400/690V B35 AL

Stock
not in stock
Brand Felstrom
Article number 3F3A-160MA-2B35 Felstrom
Rated power 11kW
Mounting B35 (foot + outer flange)
Frequency 50/60 Hz
Speed (RPM) 3000 / 2-Poles
Product description

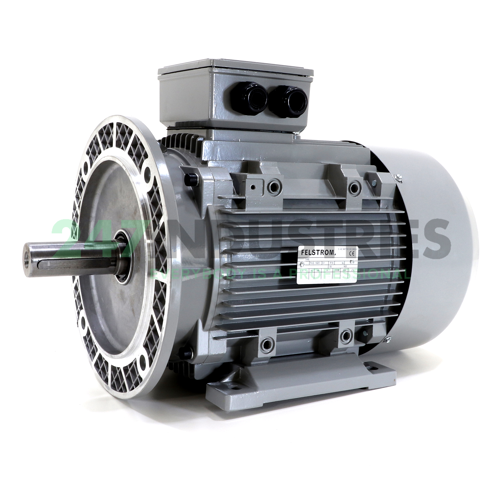

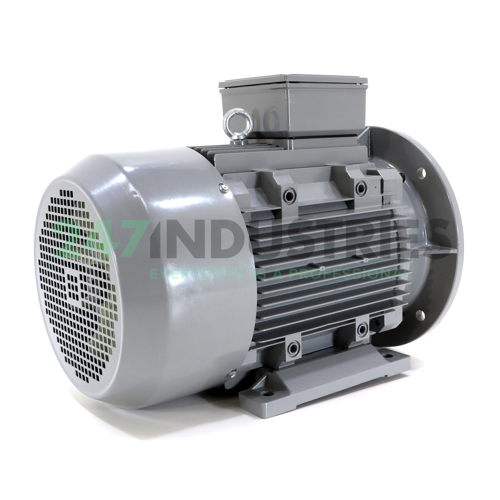

The 3F3A-160MA-2B35 Felstrom has no unwelcome surprises in store. The solid, versatile design guarantees top performance in a variety of situations. Its integrated PTC resistors protect this electric motor against overloads. In addition, this Felstrom motor with B35 mounting position has removable feet. By removing the feet, this type can also be used as a motor with a B5 mounting position. There is no price difference between the B35 and B5 version of this motor.

Felstrom electric motors combine their secure and solid construction with a very friendly price level. They also work extremely efficiently. All Felstrom motors have the highest possible efficiency class per power category and fully comply with European regulations. With the 3F3A-160MA-2B35 Felstrom you choose for carefree ease-of-use and an excellent price/quality ratio.

Help with this product

Downloads and links

Similar to: 3F3A-160MA-2B35 Felstrom

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Felstrom
  3. Item number 3F3A-160MA-2B35 Felstrom
  4. EAN 8719735000521
  5. Category 3-Phase Motors

Weight and Dimensions

  1. Weight (kg) 86

Product Properties

  1. Rated power (kW) 11
  2. Speed at 50Hz (rpm) 3000 / 2-Poles
  3. Frequency 50/60 Hz
  4. Energy efficiency IE3 = Premium
  5. Mounting B35 (foot + outer flange)
  6. Brake No Brake
  7. IP Class IP55
  8. Explosion safety (Atex) No protection
  9. IEC Framesize 160

Detailed Product Properties

  1. Voltage 380-400VD / 660-690VY
  2. IEC Framesize 160
  3. Shaft diameter (mm) 42
  4. Housing material Alu
  5. AC/DC AC
  6. Standard IEC
  7. Shaft height IEC in JDE 160
  8. Shaft length (mm) 110
  9. Shaft key width (mm) 12
  10. Shaft key length (mm) 90
  11. Thread shaft bore M16
  12. Shaft height, B3 mounted (mm) 160
  13. Width foot holes, B3 mounted (mm) 254
  14. Length foot holes, B3 mounted (mm) S=286, M=311
  15. Diameter foot holes (mm) 15

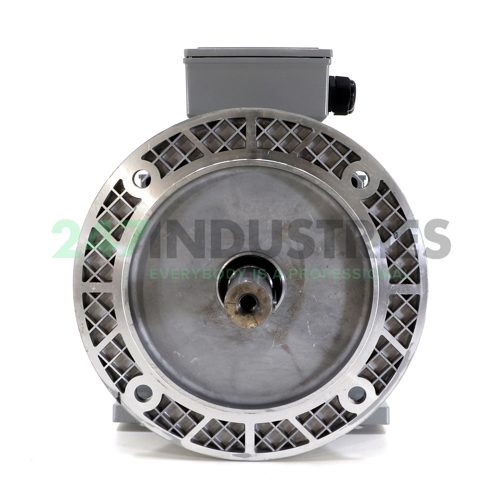

  16. Outer diameter flange B5/V1/B35/V3 (mm) 350
  17. Spigot B5/V1/B35/V3 (mm) 250
  18. Pitch circle diameter B5/V1/B35/V3 (mm) 300
  19. Number of flange holes 4
  20. Diameter flange holes B5/V1/B35/V3 (mm) 18.5
  21. Pitch circle diameter B14/B34/V18/V19 (mm) 215
  22. Thread flange holes B14/B34/V18/V19 M12
  23. Outer diameter flange B14/B34/V18/V19 (mm) 250
  24. Spigot B14/B34/V18/V19 (mm) 180
