3F3A-100LA-2B3 Felstrom

100-2P 3kW 230/400V B3 AL

Stock
not in stock
Brand Felstrom
Article number 3F3A-100LA-2B3 Felstrom
Rated power 3kW
Mounting B3 / 1M1001 (foot)
Frequency 50/60 Hz
Speed (RPM) 3000 / 2-Poles
Product description

The 3F3A-100LA-2B3 Felstrom has no unwelcome surprises in store. The solid, versatile design guarantees top performance in a variety of situations. Its integrated PTC resistors protect this electric motor with B3 mounting position against overloads.

Felstrom electric motors combine their secure and solid construction with a very friendly price level. They also work extremely efficiently. All Felstrom motors have the highest possible efficiency class per power category and fully comply with European regulations. With the 3F3A-100LA-2B3 Felstrom you choose for carefree ease-of-use and an excellent price/quality ratio.

Help with this product

Downloads and links

Similar to: 3F3A-100LA-2B3 Felstrom

No similar products found

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Felstrom
  3. Item number 3F3A-100LA-2B3 Felstrom
  4. EAN 8719735000040
  5. Category 3-Phase Motors

Weight and Dimensions

  1. Weight (kg) 26

Product Properties

  1. Rated power (kW) 3
  2. Speed at 50Hz (rpm) 3000 / 2-Poles
  3. Frequency 50/60 Hz
  4. Energy efficiency IE3 = Premium
  5. Mounting B3 / 1M1001 (foot)
  6. Brake No Brake
  7. IP Class IP55
  8. Explosion safety (Atex) No protection
  9. IEC Framesize 100

Detailed Product Properties

  1. Voltage 220-230VD / 380-400VY

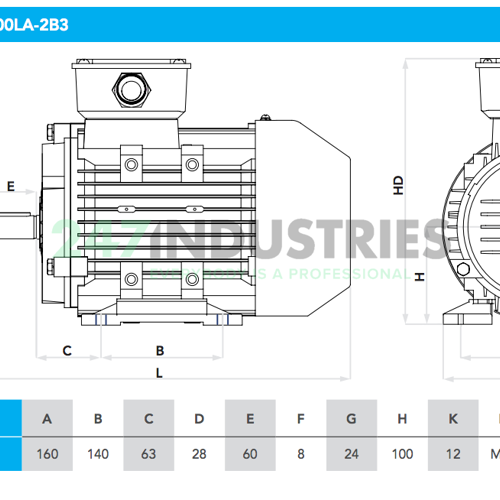

  2. IEC Framesize 100
  3. Shaft diameter (mm) 28
  4. Housing material Alu
  5. AC/DC AC
  6. Standard IEC
  7. Shaft height IEC in JDE 100
  8. Shaft length (mm) 60
  9. Shaft key width (mm) 8
  10. Shaft key length (mm) 50
  11. Thread shaft bore M10
  12. Shaft height, B3 mounted (mm) 100
  13. Width foot holes, B3 mounted (mm) 160
  14. Length foot holes, B3 mounted (mm) S=286, M=311
  15. Diameter foot holes (mm) 12
  16. Outer diameter flange B5/V1/B35/V3 (mm) 250
  17. Spigot B5/V1/B35/V3 (mm) 180
  18. Pitch circle diameter B5/V1/B35/V3 (mm) 215
  19. Number of flange holes 4
  20. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
  21. Pitch circle diameter B14/B34/V18/V19 (mm) 130
  22. Thread flange holes B14/B34/V18/V19 M8
  23. Outer diameter flange B14/B34/V18/V19 (mm) 160
  24. Spigot B14/B34/V18/V19 (mm) 110

Downloads and links

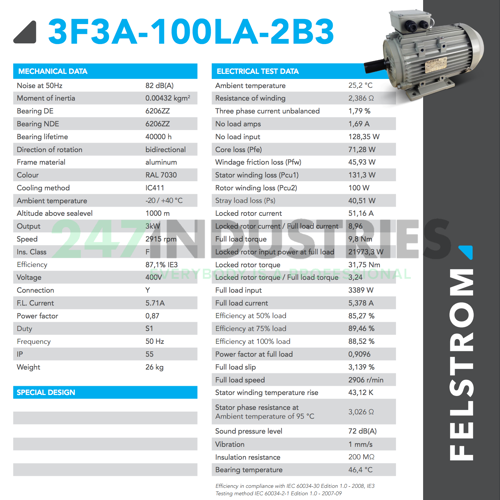

  1. Product datasheet Product datasheet
