3F2A-90LB-4B34 Felstrom

90-4P 2,2kW 230V/400V B34 AL

Stock
not in stock
Brand Felstrom
Article number 3F2A-90LB-4B34 Felstrom
Rated power 2.2kW

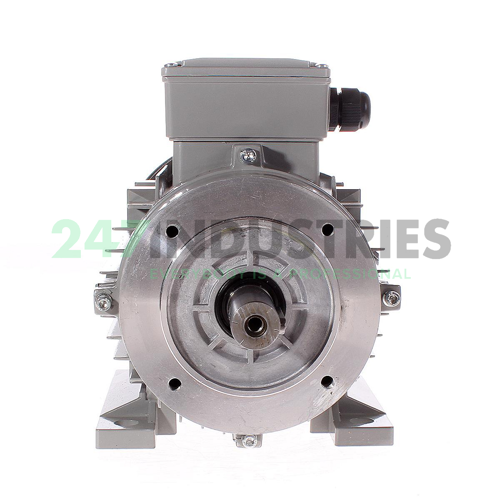

Mounting B34 (foot + inner flange)
Frequency 50/60 Hz
Speed (RPM) 1500 / 4-Poles
Product description

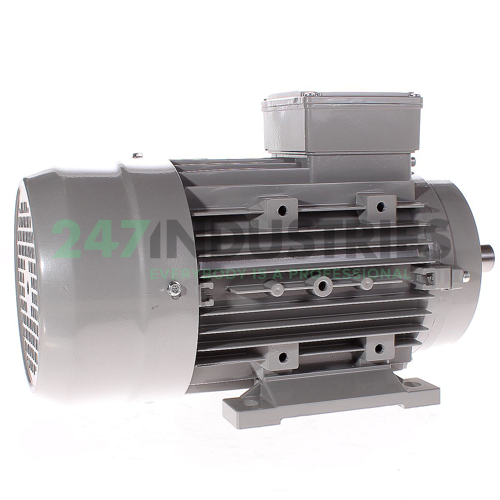

The 3F2A-90LB-4B34 Felstrom has no unwelcome surprises in store. The solid, versatile design guarantees top performance in a variety of situations. Its integrated PTC resistors protect this electric motor against overloads. In addition, this Felstrom motor with B34 mounting position has removable feet. By removing the feet, this type can also be used as a motor with a B14 mounting position. There is no price difference between the B34 and B14 version of this motor.

Felstrom electric motors combine their secure and solid construction with a very friendly price level. They also work extremely efficiently. All Felstrom motors have the highest possible efficiency class per power category and fully comply with European regulations. With the 3F2A-90LB-4B34 Felstrom you choose for carefree ease-of-use and an excellent price/quality ratio.

Read more Show less
Help with this product

Similar to: 3F2A-90LB-4B34 Felstrom

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Felstrom
  3. Item number 3F2A-90LB-4B34 Felstrom
  4. EAN 8719735014092
  5. Category 3-Phase Motors

Weight and Dimensions

  1. Weight (kg) 15

Product Properties

  1. Rated power (kW) 2.2
  2. Speed at 50Hz (rpm) 1500 / 4-Poles
  3. Frequency 50/60 Hz
  4. Energy efficiency IE2 = High = EFF1
  5. Mounting B34 (foot + inner flange)
  6. Brake No Brake
  7. IP Class IP55
  8. Explosion safety (Atex) No protection
  9. IEC Framesize 90

Detailed Product Properties

  1. Voltage 220-230VD / 380-400VY
  2. IEC Framesize 90
  3. Shaft diameter (mm) 24
  4. Housing material Alu
  5. AC/DC AC
  6. Standard IEC
  7. Shaft height IEC in JDE 090
  8. Shaft length (mm) 50
  9. Shaft key width (mm) 8
  10. Shaft key length (mm) 40
  11. Thread shaft bore M8
  12. Shaft height, B3 mounted (mm) 90
  13. Width foot holes, B3 mounted (mm) 140
  14. Length foot holes, B3 mounted (mm) S=286, M=311
  15. Diameter foot holes (mm) 10
  16. Outer diameter flange B5/V1/B35/V3 (mm) 200
  17. Spigot B5/V1/B35/V3 (mm) 130
  18. Pitch circle diameter B5/V1/B35/V3 (mm) 165
  19. Number of flange holes 4
  20. Diameter flange holes B5/V1/B35/V3 (mm) 12
  21. Pitch circle diameter B14/B34/V18/V19 (mm) 115
  22. Thread flange holes B14/B34/V18/V19 M8
  23. Outer diameter flange B14/B34/V18/V19 (mm) 140
  24. Spigot B14/B34/V18/V19 (mm) 95
