3F1A-63MC-2B3 Felstrom

€ 56,38 ex VAT
€ 68,22 in VAT
€ 68,22 in VAT
€ 56,38 ex VAT

2 similar products for 3F1A-63MC-2B3 Felstrom in stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

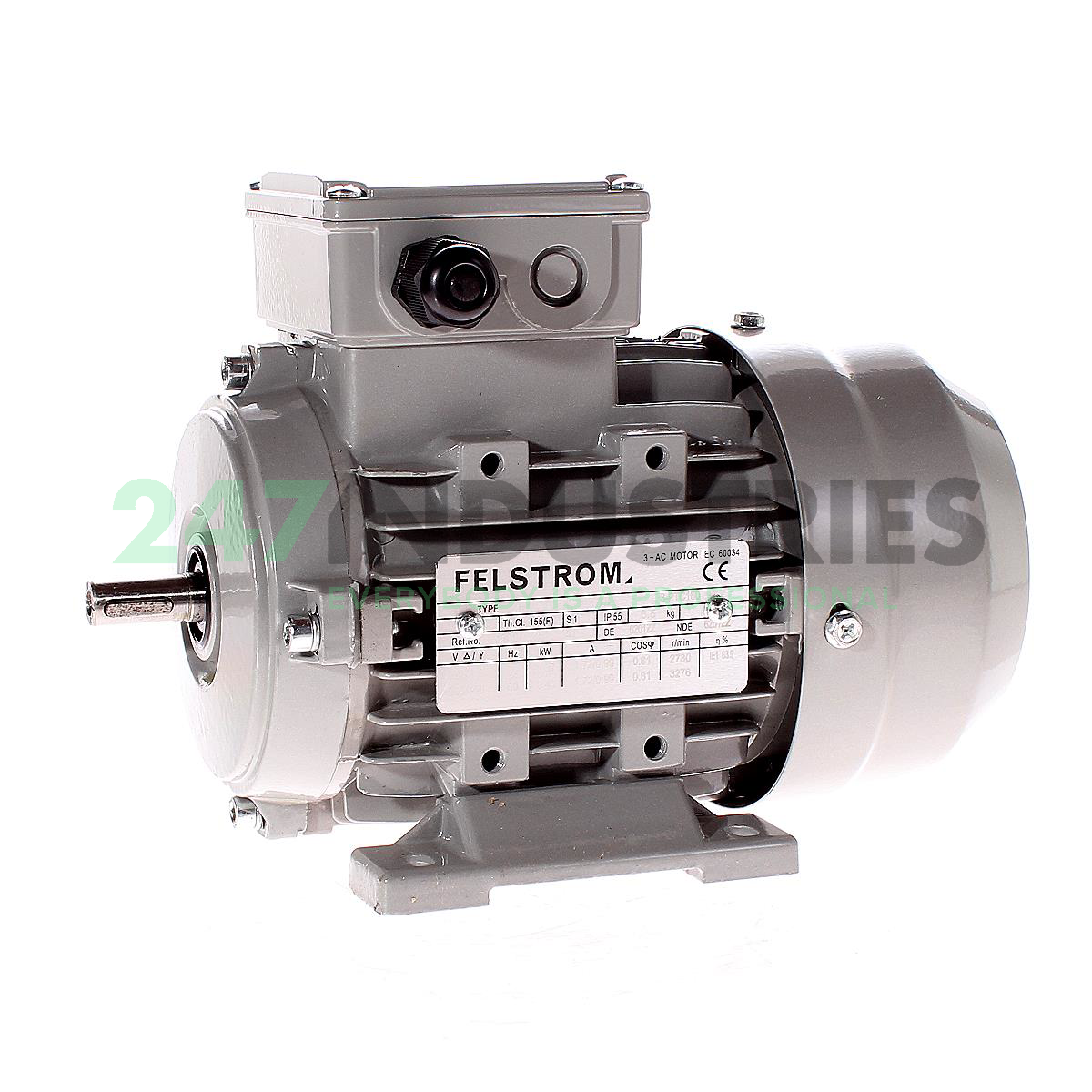

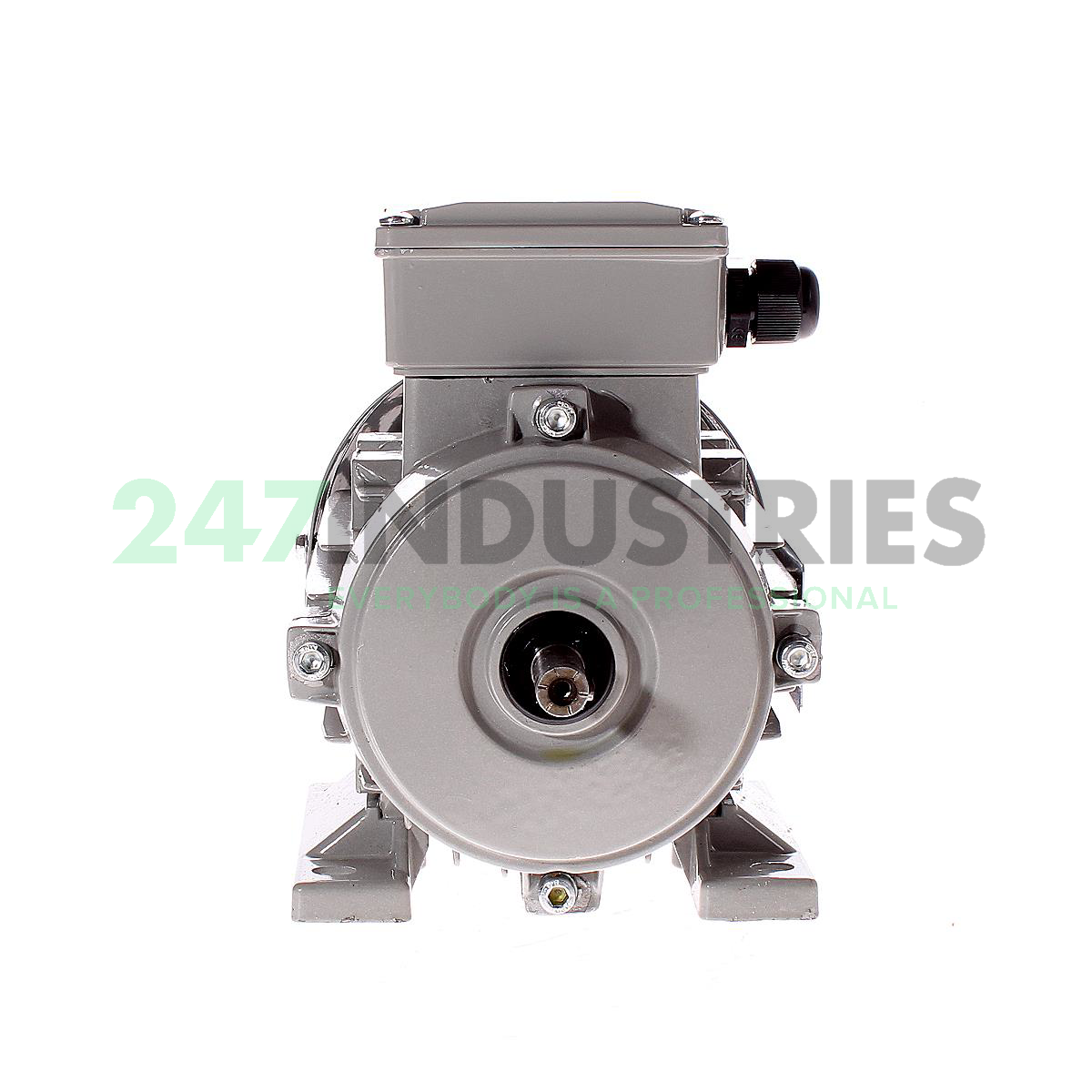

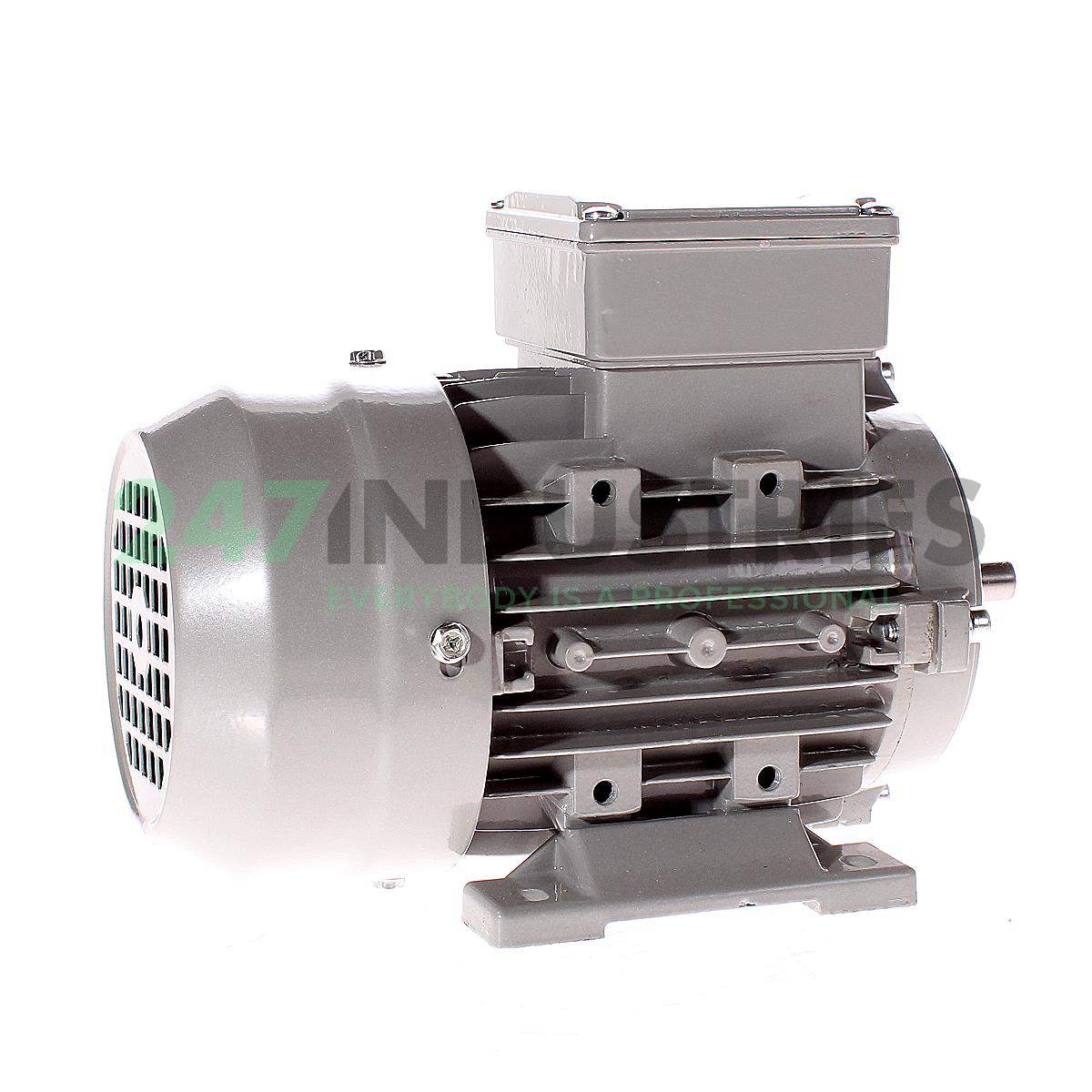

3F1A-63MC-2B3 Felstrom

63-2P 0,37kW 230V/400V B3 AL

Stock
not in stock
Brand Felstrom
Article number 3F1A-63MC-2B3 Felstrom
Rated power 0.37kW
Mounting B3 / 1M1001 (foot)
Frequency 50/60 Hz
Speed (RPM) 3000 / 2-Poles
Product description

The 3F1A-63MC-2B3 Felstrom has no unwelcome surprises in store. The solid, versatile design guarantees top performance in a variety of situations. Its integrated PTC resistors protect this electric motor with B3 mounting position against overloads.

Felstrom electric motors combine their secure and solid construction with a very friendly price level. They also work extremely efficiently. All Felstrom motors have the highest possible efficiency class per power category and fully comply with European regulations. With the 3F1A-63MC-2B3 Felstrom you choose for carefree ease-of-use and an excellent price/quality ratio.

Help with this product

Similar to: 3F1A-63MC-2B3 Felstrom

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Felstrom
  3. Item number 3F1A-63MC-2B3 Felstrom
  4. EAN 8719735012807
  5. Category 3-Phase Motors

Weight and Dimensions

  1. Weight (kg) 6.3

Product Properties

  1. Rated power (kW) 0.37
  2. Speed at 50Hz (rpm) 3000 / 2-Poles
  3. Frequency 50/60 Hz
  4. Energy efficiency IE1 = standard = EFF2
  5. Mounting B3 / 1M1001 (foot)
  6. Brake No Brake
  7. IP Class IP55
  8. Explosion safety (Atex) No protection
  9. IEC Framesize 63

Detailed Product Properties

  1. Voltage 220-230VD / 380-400VY
  2. IEC Framesize 63
  3. Shaft diameter (mm) 11
  4. Housing material Alu
  5. AC/DC AC
  6. Standard IEC
  7. Shaft height IEC in JDE 063
  8. Shaft length (mm) 23
  9. Shaft key width (mm) 4
  10. Shaft key length (mm) 16
  11. Thread shaft bore M4
  12. Shaft height, B3 mounted (mm) 63
  13. Width foot holes, B3 mounted (mm) 100
  14. Length foot holes, B3 mounted (mm) 80
  15. Diameter foot holes (mm) 7
  16. Outer diameter flange B5/V1/B35/V3 (mm) 140
  17. Spigot B5/V1/B35/V3 (mm) 95
  18. Pitch circle diameter B5/V1/B35/V3 (mm) 115
  19. Number of flange holes 4
  20. Diameter flange holes B5/V1/B35/V3 (mm) 10
  21. Pitch circle diameter B14/B34/V18/V19 (mm) 75
  22. Thread flange holes B14/B34/V18/V19 M5
  23. Outer diameter flange B14/B34/V18/V19 (mm) 90
  24. Spigot B14/B34/V18/V19 (mm) 60
