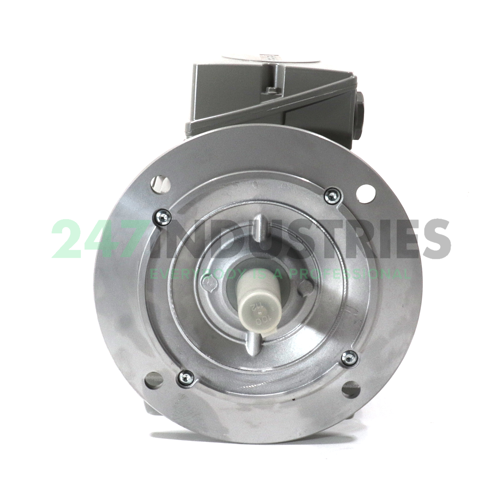

1LE1003-1AB52-2JA4-Z Siemens

Technical details

1. Availability 1 pc on 3 May
2. Brand Siemens
3. Item number 1LE1003-1AB52-2JA4-Z Siemens
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 30

Product Properties

1. Rated power (kW) 3
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50/60 Hz
4. Energy efficiency IE3 = Premium
5. Mounting B35 (foot + outer flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 100

Detailed Product Properties

1. Voltage 220-230VD / 380-400VY
2. IEC Framesize 100
3. Shaft diameter (mm) 28
4. Housing material Alu
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 100
8. Shaft length (mm) 60
9. Shaft key width (mm) 8
10. Shaft key length (mm) 50
11. Thread shaft bore M10
12. Shaft height, B3 mounted (mm) 100
13. Width foot holes, B3 mounted (mm) 160
14. Length foot holes, B3 mounted (mm) S=286, M=311
15. Diameter foot holes (mm) 12
16. Outer diameter flange B5/V1/B35/V3 (mm) 250
17. Spigot B5/V1/B35/V3 (mm) 180
18. Pitch circle diameter B5/V1/B35/V3 (mm) 215
19. Number of flange holes 4
20. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
21. Pitch circle diameter B14/B34/V18/V19 (mm) 130
22. Thread flange holes B14/B34/V18/V19 M8
23. Outer diameter flange B14/B34/V18/V19 (mm) 160
24. Spigot B14/B34/V18/V19 (mm) 110
