| Product |
| Article Number (Market Facing Number) | 1LE1003-0EC42-2AA4-Z F01+F11 |

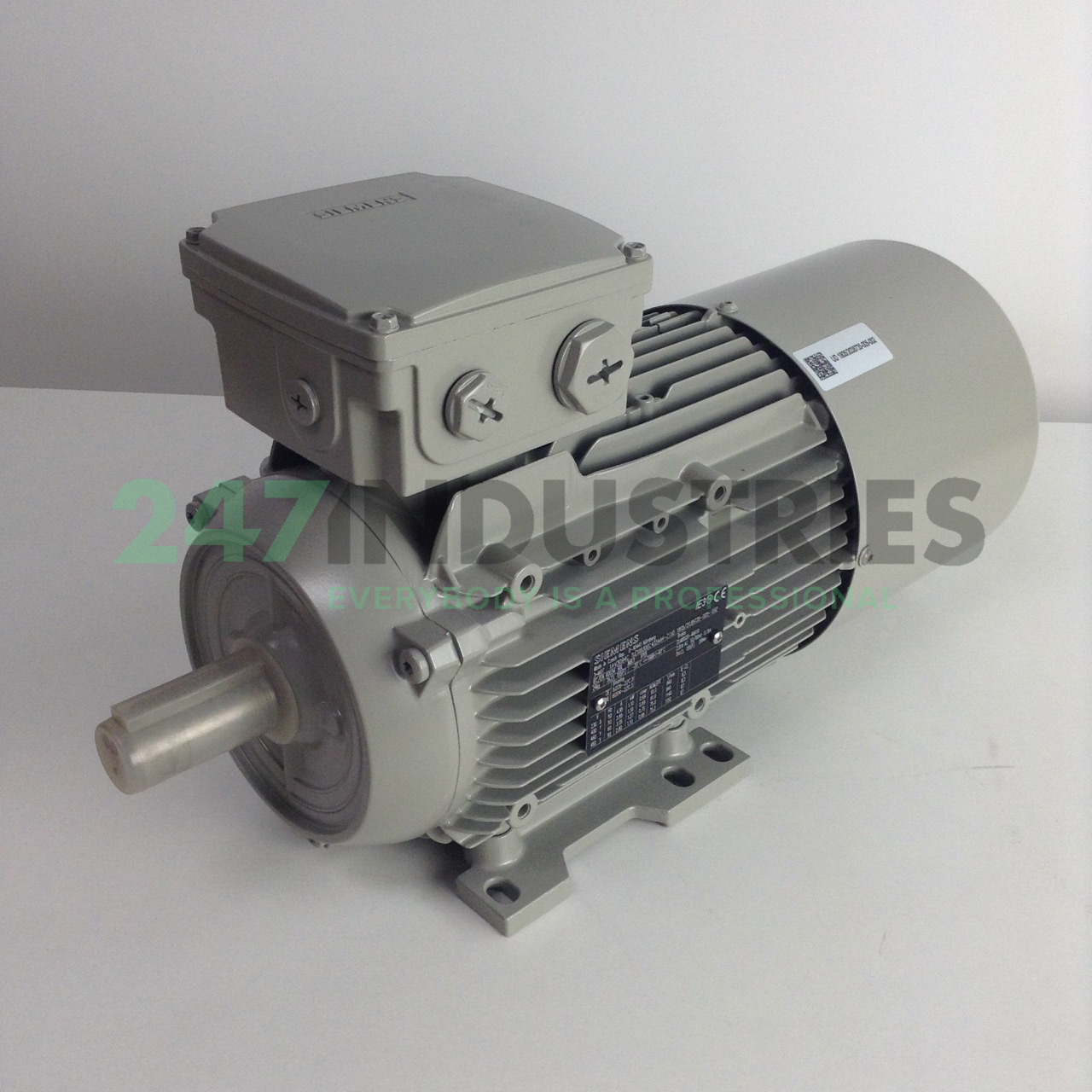

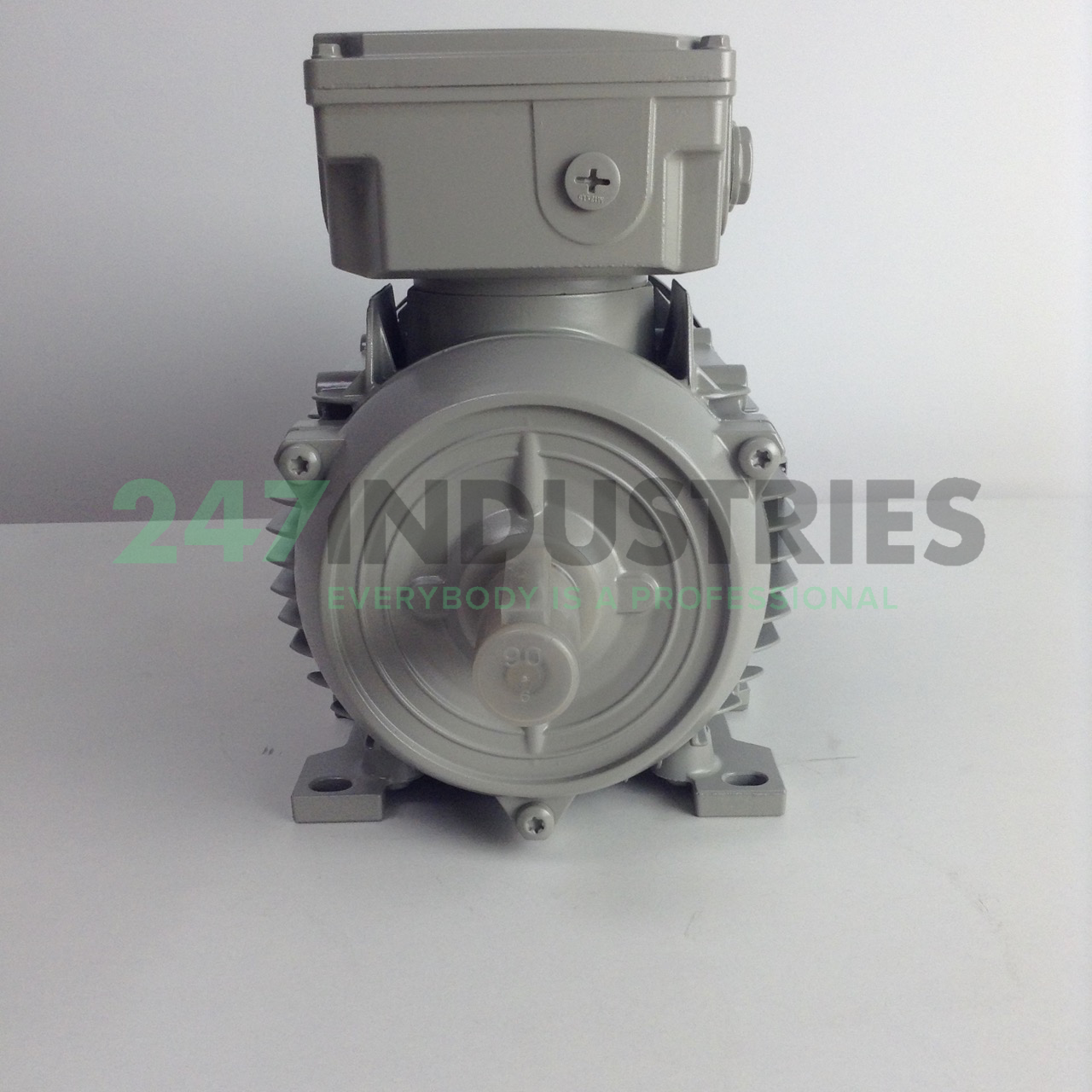

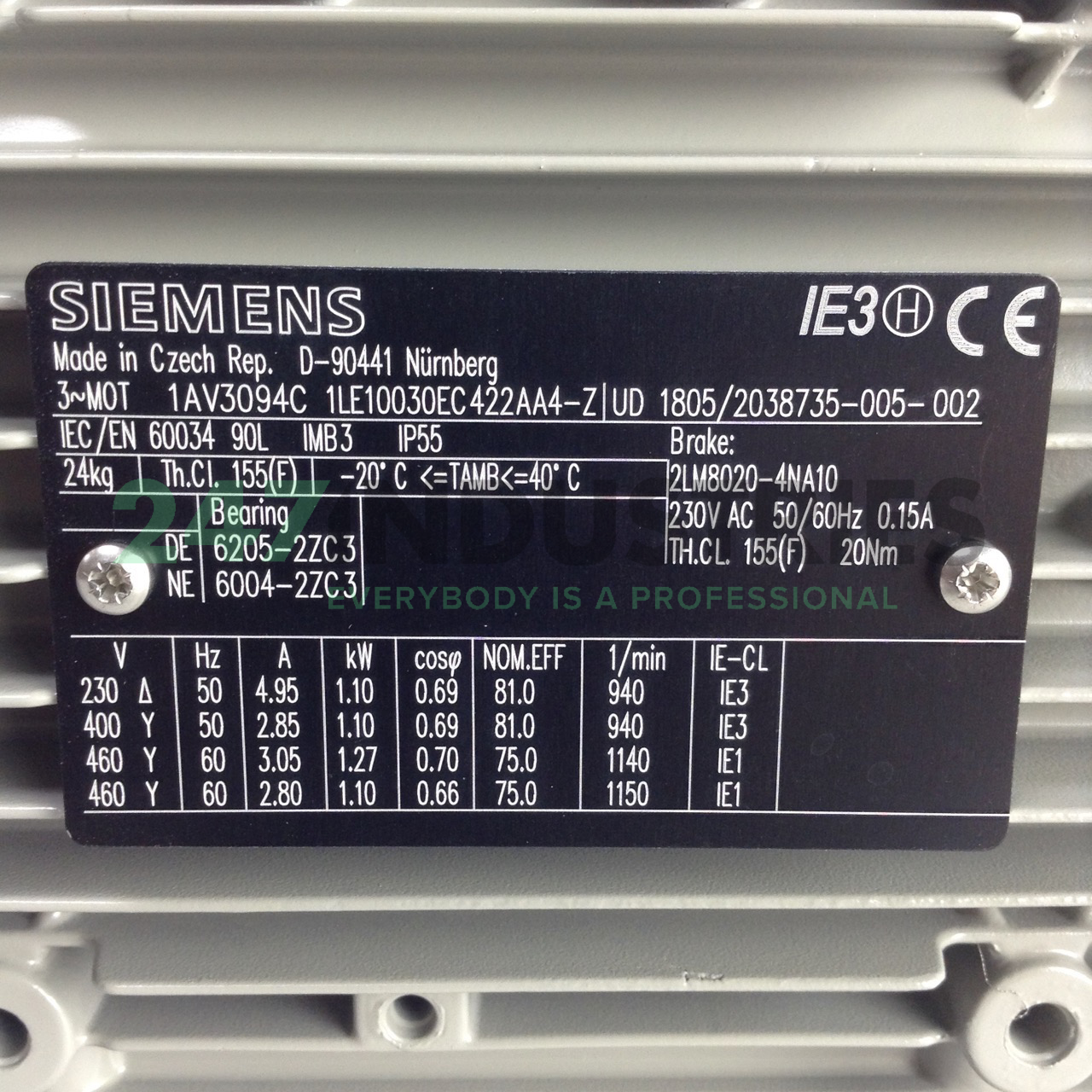

| Product Description | SIMOTICS GP MOTOR TYPE: 1AV3094C Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) Aluminum housing Premium Efficiency IE3, 60 Hz, P60: IE1 6-pole * Size 90L * 1.1kW (50 Hz) 1.27kW (60 Hz) 3 AC 50 Hz 230 VD/400 VY * 3 AC 60 Hz 460 VY IM B 3, without motor protection Terminal box at top F01=Mounting of brake incl. mounting costs F11=Brake control voltage 230 V AC, 50/60 Hz |
| Product family | Ordering Data Overview |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data |
| Price Group / Headquarter Price Group | 08B / 3Z1 |
| List Price | |
| Customer Price | |
| Metal Factor | N-W----- |
| Delivery information |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 40 Day/Days |
| Net Weight (kg) | 24,9 Kg |
| Product Dimensions (W x L x H) | Not available |
| Packaging Dimension | Not available |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 85015220 |
| LKZ_FDB/ CatalogID | D81.1-1/IEC |
| Product Group | 5114 |
| Country of origin | Czech Republic |
| Compliance with the substance restrictions according to RoHS directive | sinds: 22.06.2019 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Categorie voor terugname electronische materialen na gebruik | Geen terugname verplichting |
| Classifications |
| | | | Version | Classification | | eClass | 5.1 | 27-02-21-01 | | eClass | 6 | 27-02-21-01 | | eClass | 7.1 | 27-02-21-01 | | eClass | 8 | 27-02-21-01 | | eClass | 9 | 27-02-21-01 | | eClass | 9.1 | 27-02-21-01 | |
