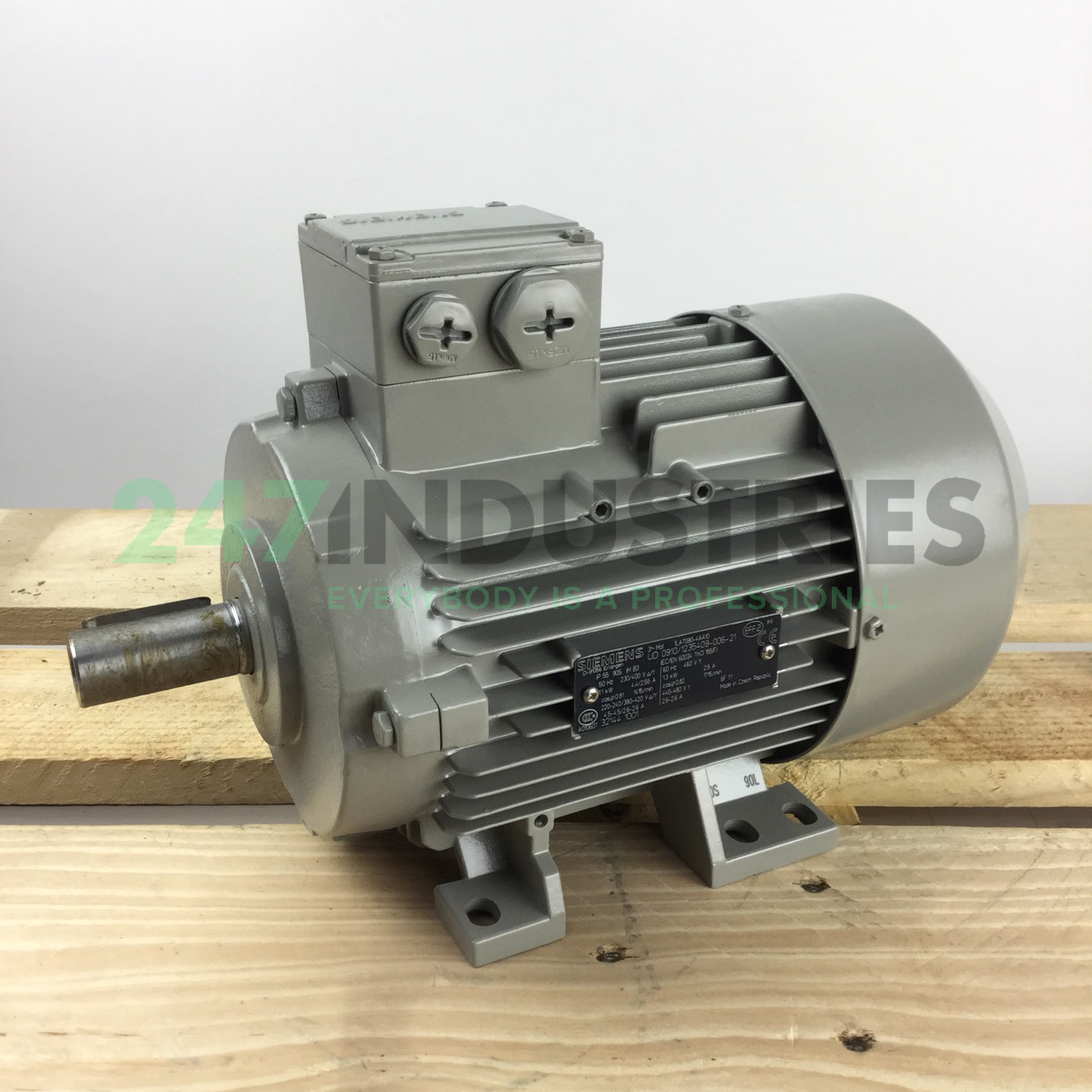

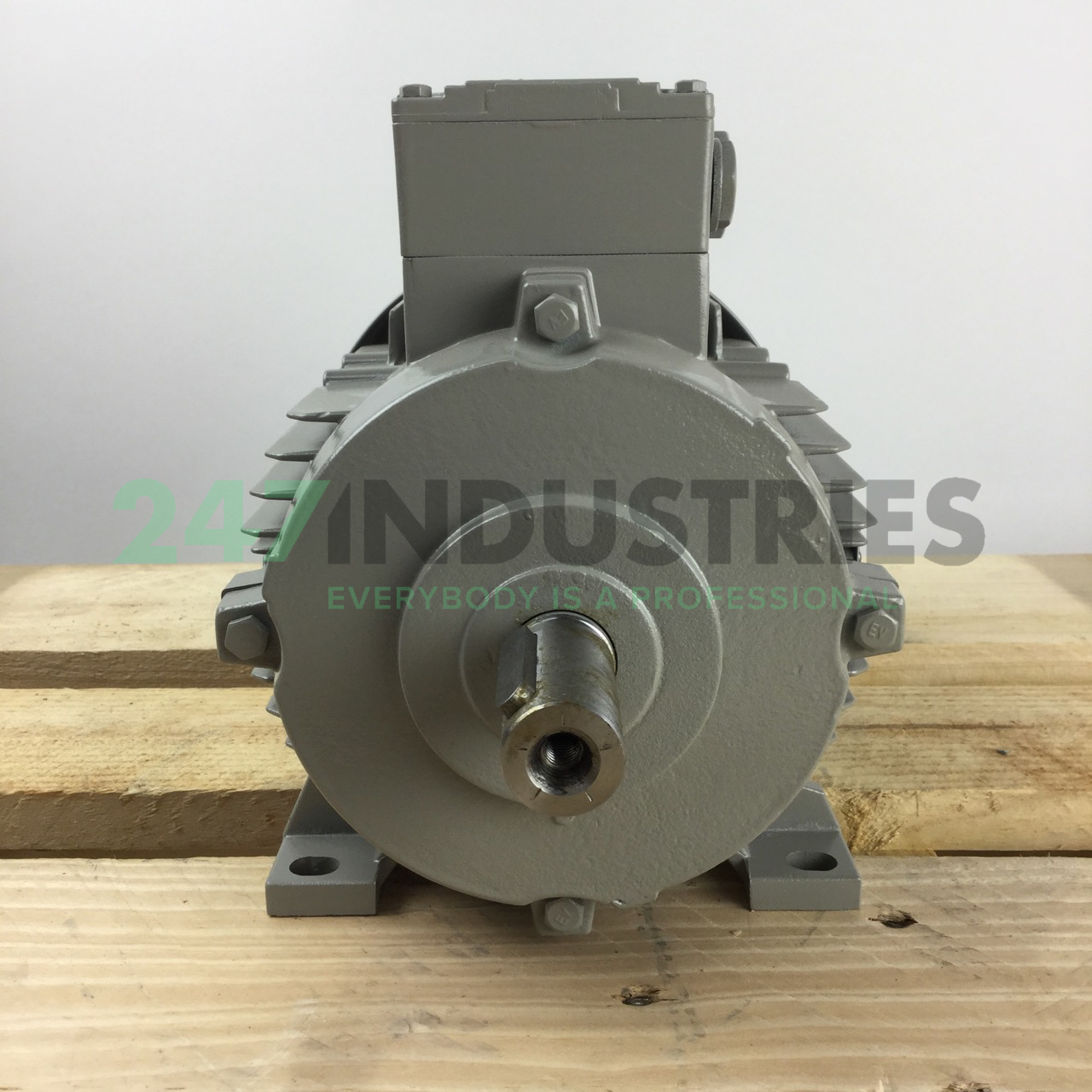

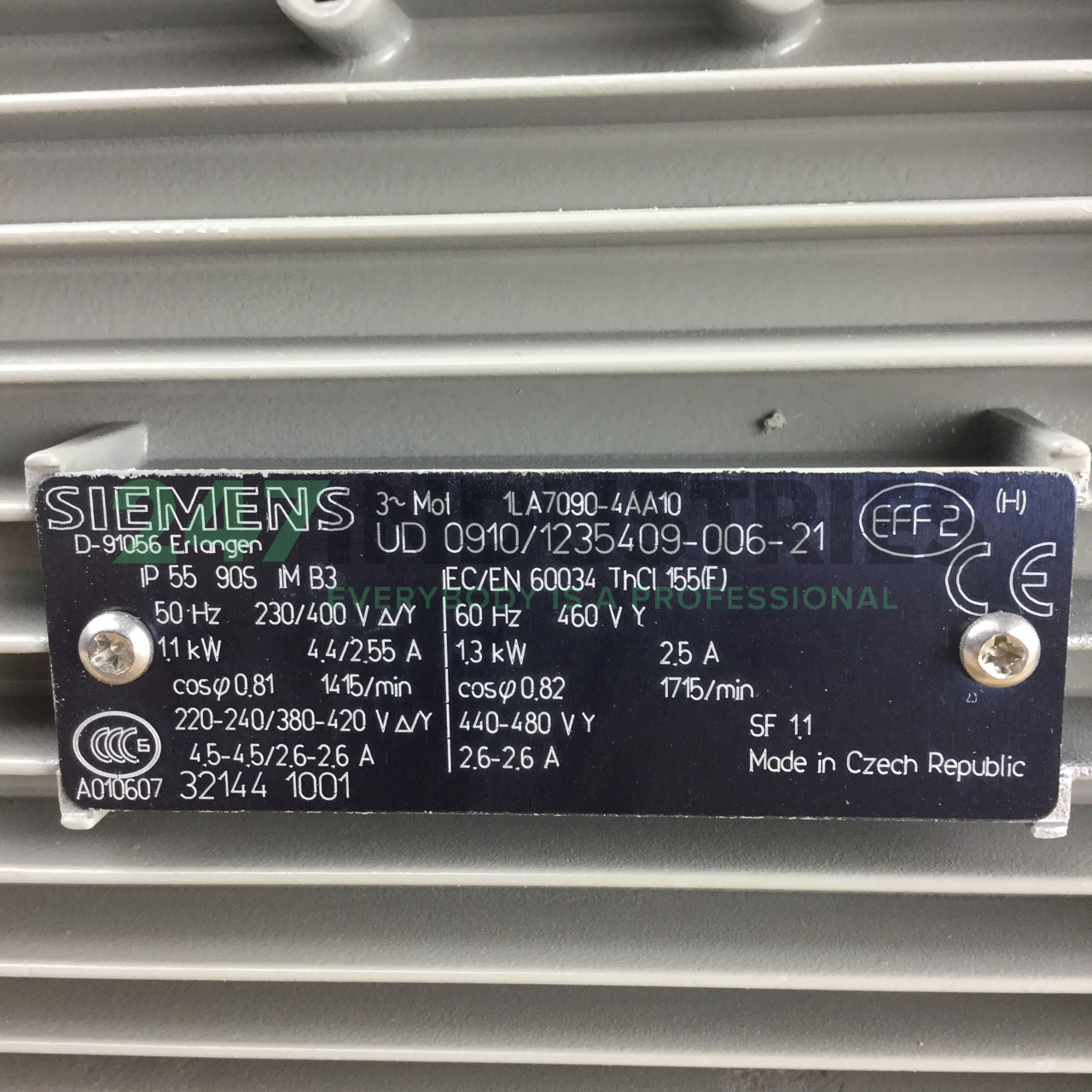

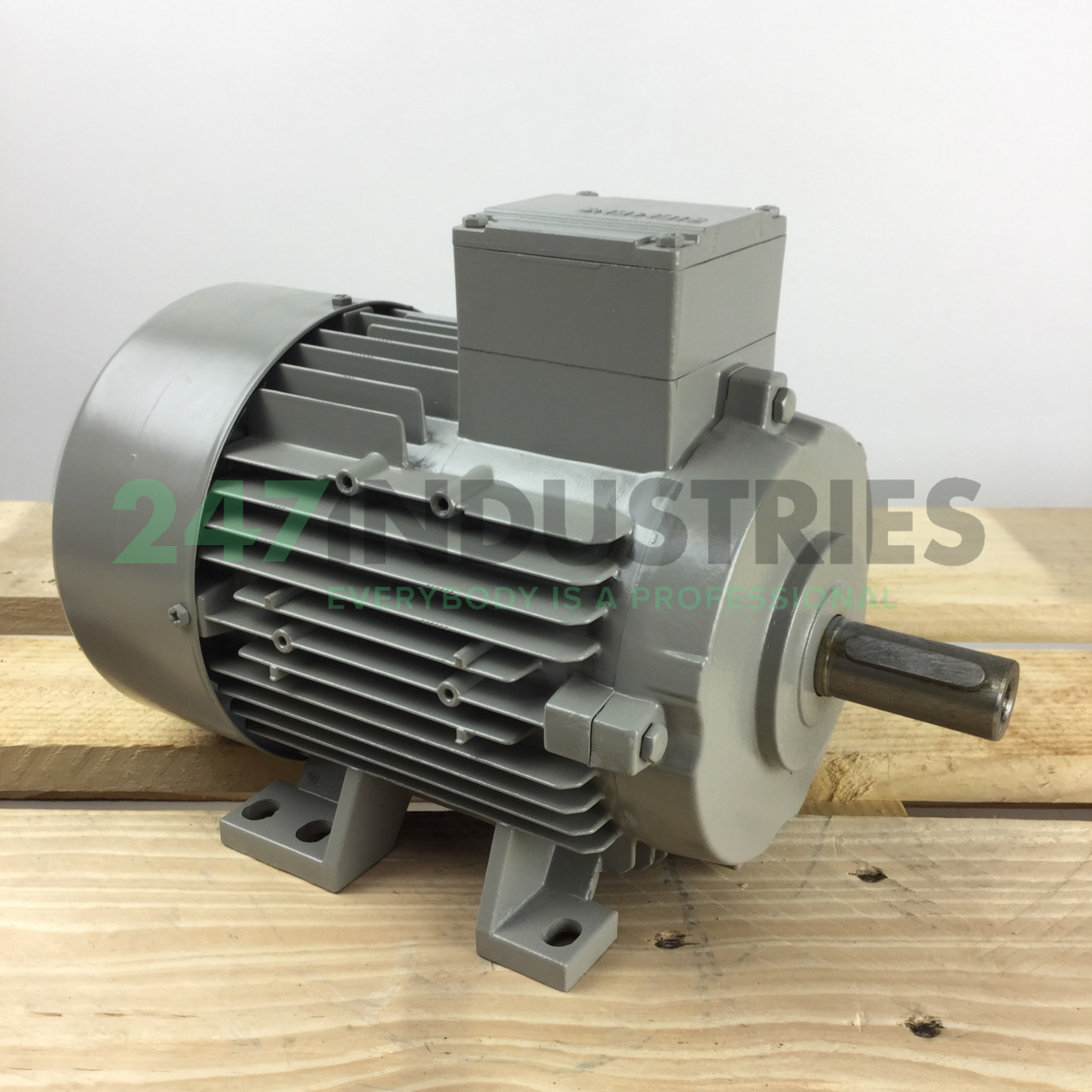

1LA7090-4AA10 Siemens

90-4P 1,1kW 230/400V B3 AL

Stock
1 pc in stock and ready for shipment
Brand Siemens
Article number 1LA7090-4AA10 Siemens
Rated power 1.1kw
Mounting B3 (foot)
Frequency 50/60Hz
Speed (RPM) 1500 / 4-Polesrpm
Product description
Read more Show less
Help with this product

Similar to: 1LA7090-4AA10 Siemens

Loading similair products

Product specifications

Technical details

  1. Availability 1 pc
  2. Brand Siemens
  3. Item number 1LA7090-4AA10 Siemens
  4. Also known as 4019169365727
  5. Category 3-Phase Motors
  6. Manufacturer Part Number (MPN) 1LA7090-4AA10
  7. Weight (kg) 12.90
  8. Rated power (kW) 1.1
  9. Mounting B3 (foot)
  10. Speed at 50Hz (rpm) 1500 / 4-Poles
  11. Frequency 50/60Hz
  12. IP Class IP55
  13. Brake No Brake
  14. Explosion safety (Atex) No protection
  15. IEC Framesize 90
  16. Energie efficiency IE1 = standard = EFF2
  17. Voltage 220-230VD / 380-400VY
  18. Housing material Alu
  19. IEC Framesize 90
  20. Shaft diameter (mm) 24
  21. Shaft length (mm) 50
  22. Wedge width (mm) 8
  23. Wedge length (mm) 40
  24. Thread shaft bore M8
  25. Shaft height, B3 mounted (mm) 90
  26. Width foot holes, B3 mounted (mm) 140
  27. Length foot holes, B3 mounted (mm) S=100, L=125
  28. Diameter foot holes (mm) 10
  29. Outer diameter flange B5/V1/B35/V3 (mm) 200
  30. Diameter edge B5/V1/B35/V3 (mm) 130
  31. Pitch flange holes B5/V1/B35/V3 (mm) 165
  32. Number of flange holes 4
  33. Diameter flange holes B5/V1/B35/V3 (mm) 12
  34. Outer diam. flange B14/B34/V18/V19 (mm) 140
  35. Diam. edge B14/B34/V18/V19 (mm) 95
  36. Pitch holes flange B14/B34/V18/V19 (mm) 115
  37. Thread flange holes B14/B34/V18/V19 M8
