1LA7070-4AB16 Siemens

€ 90,28 ex VAT
€ 109,24 incl. VAT
€ 109,24 incl. VAT
€ 90,28 ex VAT
7 similar products for 1LA7070-4AB16 Siemens in stock
Worldwide shipping from The Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

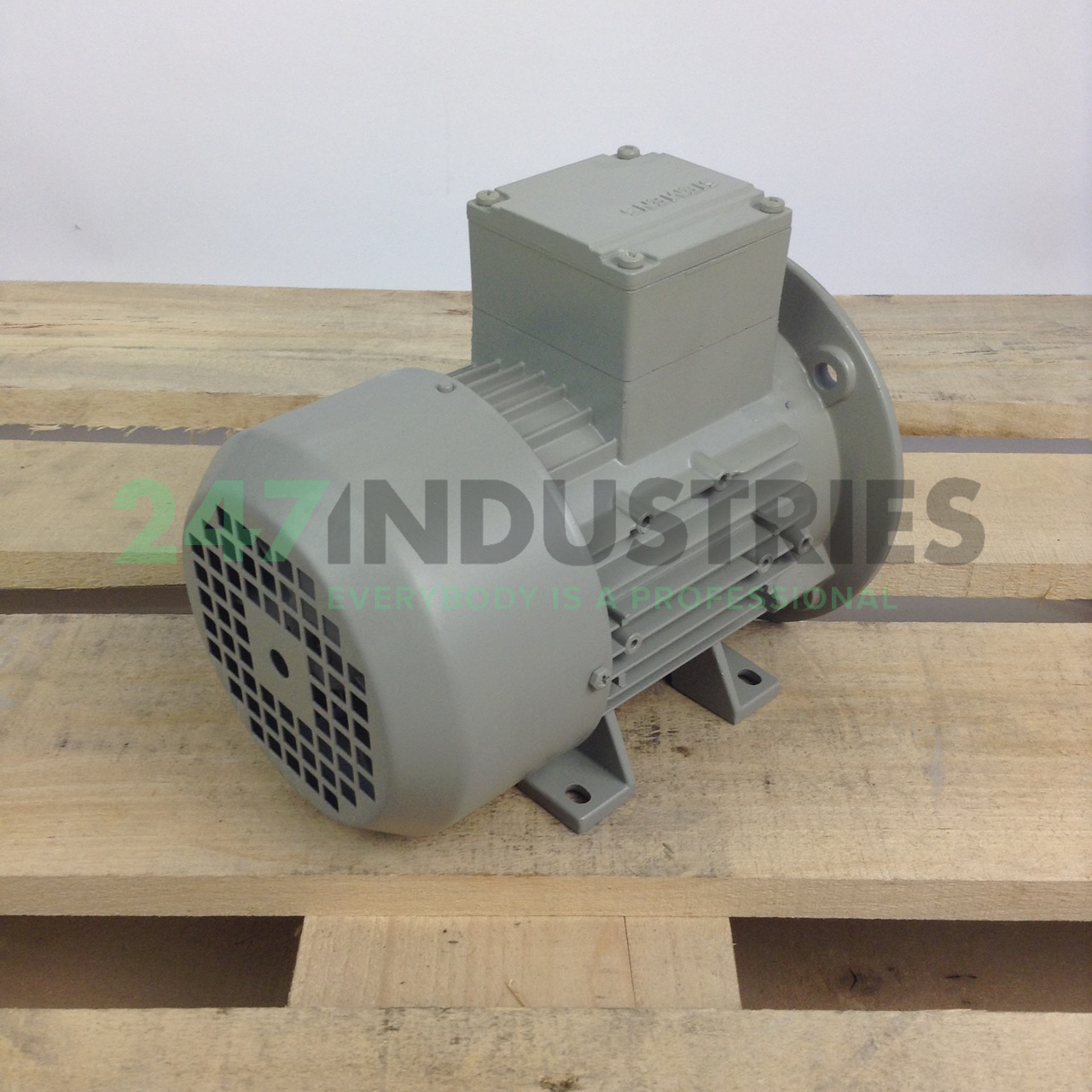

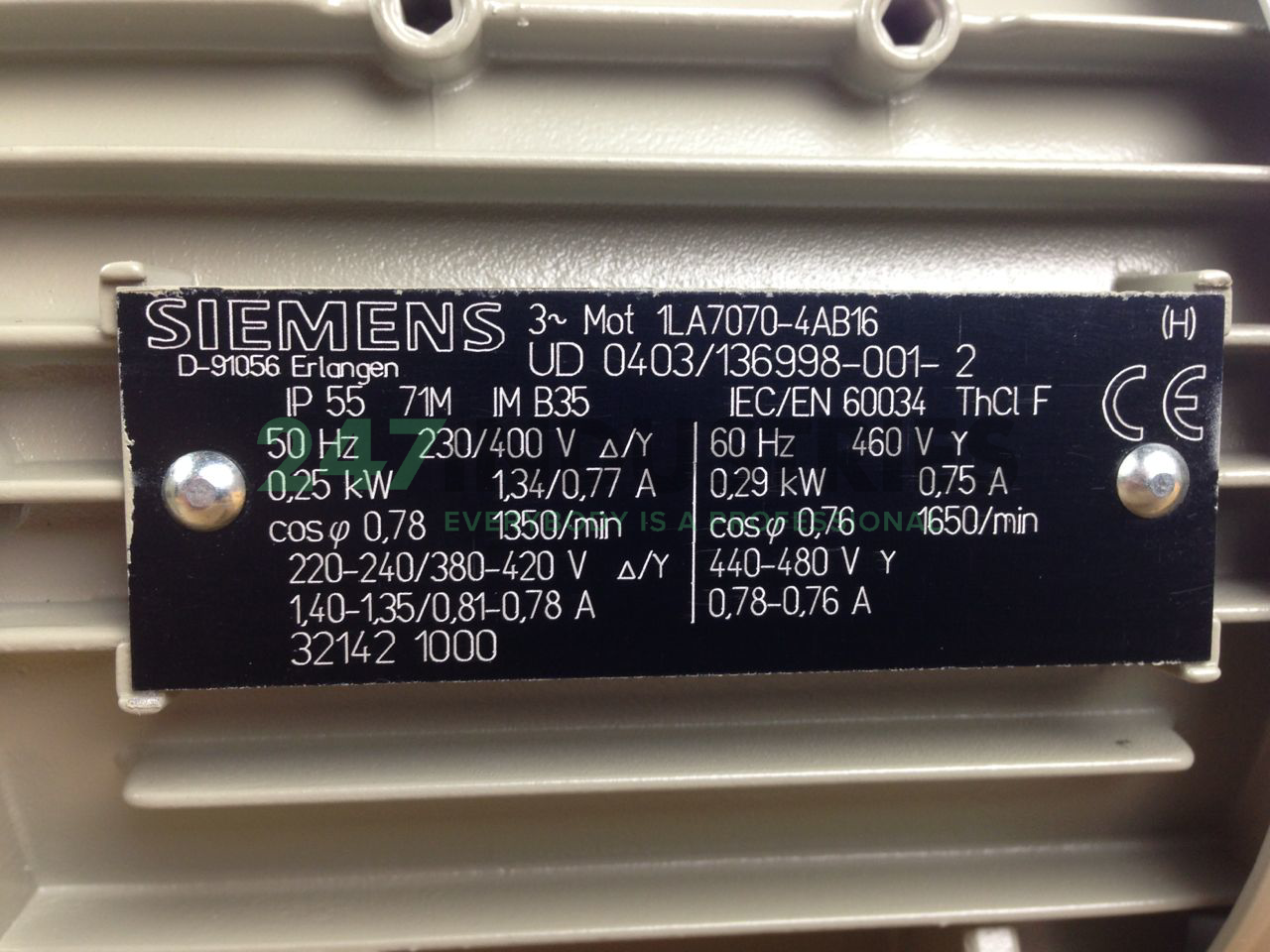

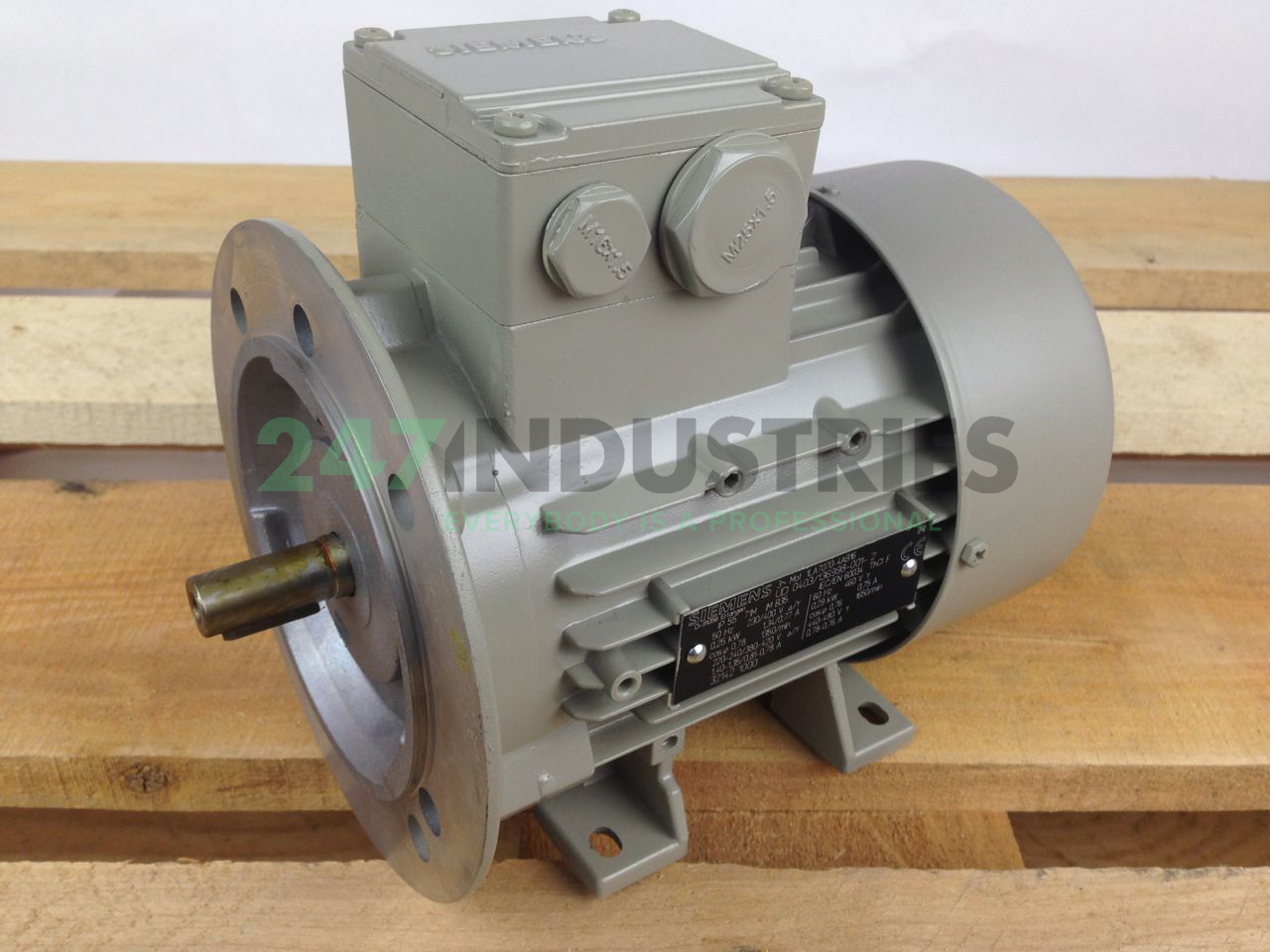

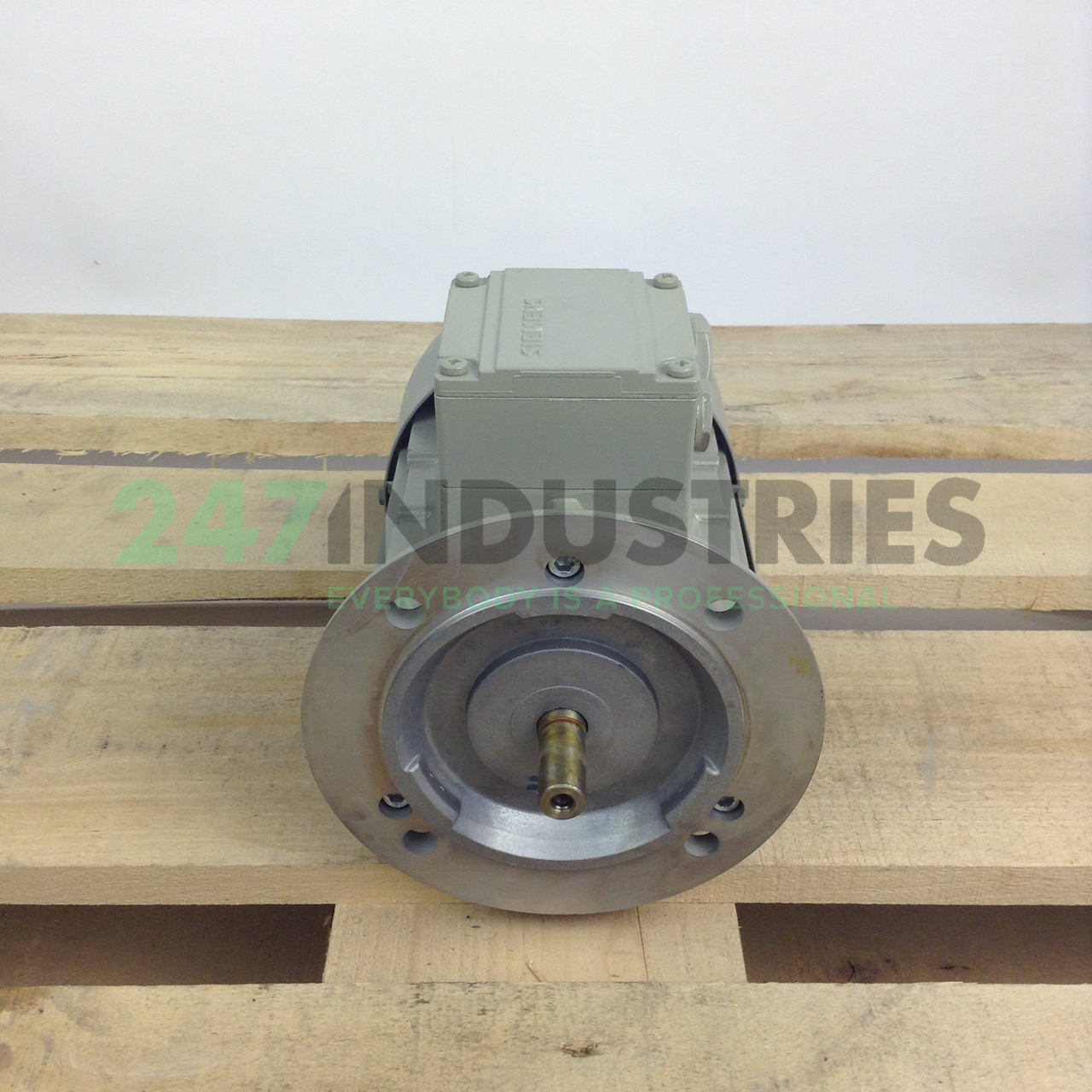

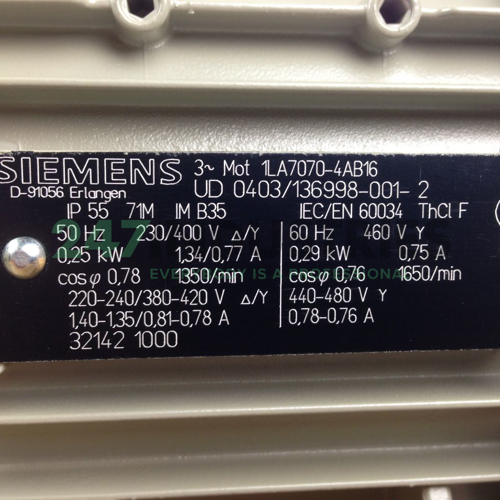

1LA7070-4AB16 Siemens

71-4P 0,25kW 230/400V B35 AL

Stock
not in stock
Brand Siemens
Article number 1LA7070-4AB16 Siemens
Rated power 0.25kw
Mounting B35 (foot + outer flange)
Frequency 50/60 Hz
Speed (RPM) 1500 / 4-Polesrpm
Product description
Read more Show less
Help with this product

Downloads

Similar to: 1LA7070-4AB16 Siemens

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Siemens
  3. Item number 1LA7070-4AB16 Siemens
  4. Category 3-Phase Motors
  5. Weight (kg) 4.8
  6. Rated power (kW) 0.25
  7. Speed at 50Hz (rpm) 1500 / 4-Poles
  8. Voltage 220-230VD / 380-400VY
  9. Frequency 50/60 Hz
  10. Energy efficiency IE1 = standard = EFF2
  11. Mounting B35 (foot + outer flange)
  12. IEC Framesize 71
  13. Shaft diameter (mm) 14
  14. Brake No Brake
  15. IP Class 55
  16. Explosion safety (Atex) No protection
  17. Housing material Alu
  18. AC/DC AC
  19. Standard IEC
  20. IEC Framesize 71
  21. Shaft height IEC in JDE 071
  22. Shaft length (mm) 30
  23. Wedge width (mm) 5
  24. Wedge length (mm) 22
  25. Thread shaft bore M5
  26. Shaft height, B3 mounted (mm) 71
  27. Width foot holes, B3 mounted (mm) 112
  28. Length foot holes, B3 mounted (mm) 90
  29. Diameter foot holes (mm) 7
  30. Outer diameter flange B5/V1/B35/V3 (mm) 160
  31. Diameter edge B5/V1/B35/V3 (mm) 110
  32. Pitch flange holes B5/V1/B35/V3 (mm) 130
  33. Diameter flange holes B5/V1/B35/V3 (mm) 10
  34. Pitch holes flange B14/B34/V18/V19 (mm) 85
  35. Thread flange holes B14/B34/V18/V19 M6
  36. Outer diameter flange B14/B34/V18/V19 (mm) 105
  37. Diameter edge B14/B34/V18/V19 (mm) 70

Downloads

  1. 1LA7070-4AB16_datasheet_en.pdf 1LA7070-4AB16_datasheet_en.pdf
  2. Number of flange holes Number of flange holes
