1LA7063-2AA11 Siemens

87,86 ex VAT
€ 106,31 incl. VAT
€ 106,31 incl. VAT
87,86 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from The Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

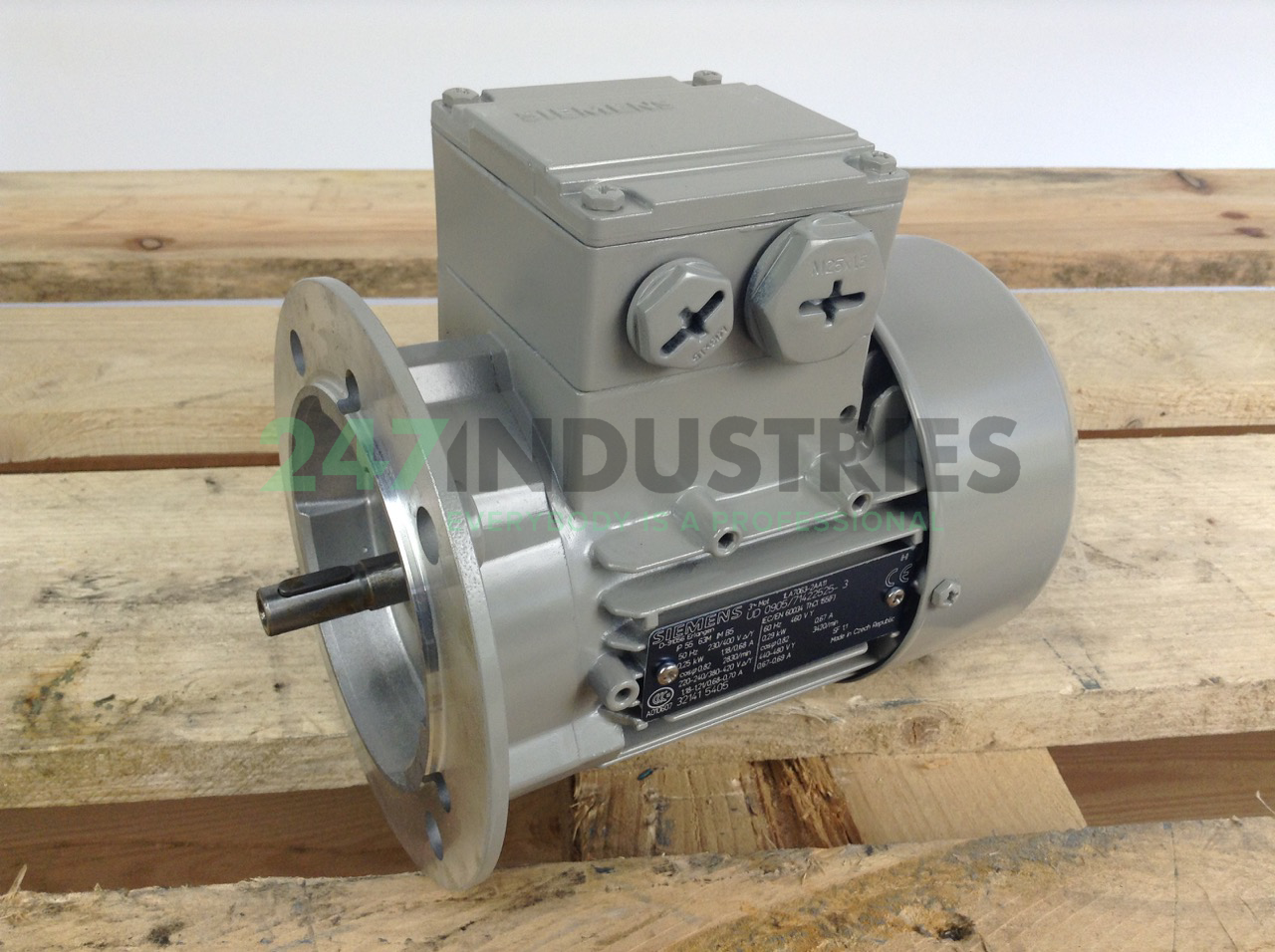

1LA7063-2AA11 Siemens

63-2P 0,25kW 230/400V B5 AL

Stock
9 pcs in stock and ready for shipment
Brand Siemens
Article number 1LA7063-2AA11 Siemens
Rated power 0.25kw
Mounting B5 (outer flange)
Frequency 50/60Hz
Speed (RPM) 3000 / 2-Polesrpm
Product description
Read more Show less

Similar to: 1LA7063-2AA11 Siemens

Loading similair products

Product specifications

Technical details

  1. Availability 9 pcs
  2. Brand Siemens
  3. Item number 1LA7063-2AA11 Siemens
  4. Also known as 4019169365079
  5. Category 3-Phase Motors
  6. Manufacturer Part Number (MPN) 1LA7063-2AA11
  7. Weight (kg) 4
  8. Rated power (kW) 0.25
  9. Mounting B5 (outer flange)
  10. Speed at 50Hz (rpm) 3000 / 2-Poles
  11. Frequency 50/60Hz
  12. IP Class IP55
  13. Brake No Brake
  14. Explosion safety (Atex) No protection
  15. IEC Framesize 63
  16. Energie efficiency IE1 = standard = EFF2
  17. Voltage 220-230VD / 380-400VY
  18. Housing material Alu
  19. IEC Framesize 63
  20. Shaft diameter (mm) 11
  21. Shaft length (mm) 23
  22. Wedge width (mm) 4
  23. Wedge length (mm) 16
  24. Thread shaft bore M4
  25. Shaft height, B3 mounted (mm) 63
  26. Width foot holes, B3 mounted (mm) 100
  27. Length foot holes, B3 mounted (mm) 80
  28. Diameter foot holes (mm) 7
  29. Outer diameter flange B5/V1/B35/V3 (mm) 140
  30. Diameter edge B5/V1/B35/V3 (mm) 95
  31. Pitch flange holes B5/V1/B35/V3 (mm) 115
  32. Number of flange holes 4
  33. Diameter flange holes B5/V1/B35/V3 (mm) 10
  34. Outer diam. flange B14/B34/V18/V19 (mm) 90
  35. Diam. edge B14/B34/V18/V19 (mm) 60
  36. Pitch holes flange B14/B34/V18/V19 (mm) 75
  37. Thread flange holes B14/B34/V18/V19 M5

Downloads

  1. 1LA7063-2AA11_2D_dimension_0a1994892f7a8c72bfc2749b29c9f86a.pdf 1LA7063-2AA11_2D_dimension_0a1994892f7a8c72bfc2749b29c9f86a.pdf
