| Product |
| Article Number (Market Facing Number) | 1FK7063-2AF71-1RA1 |

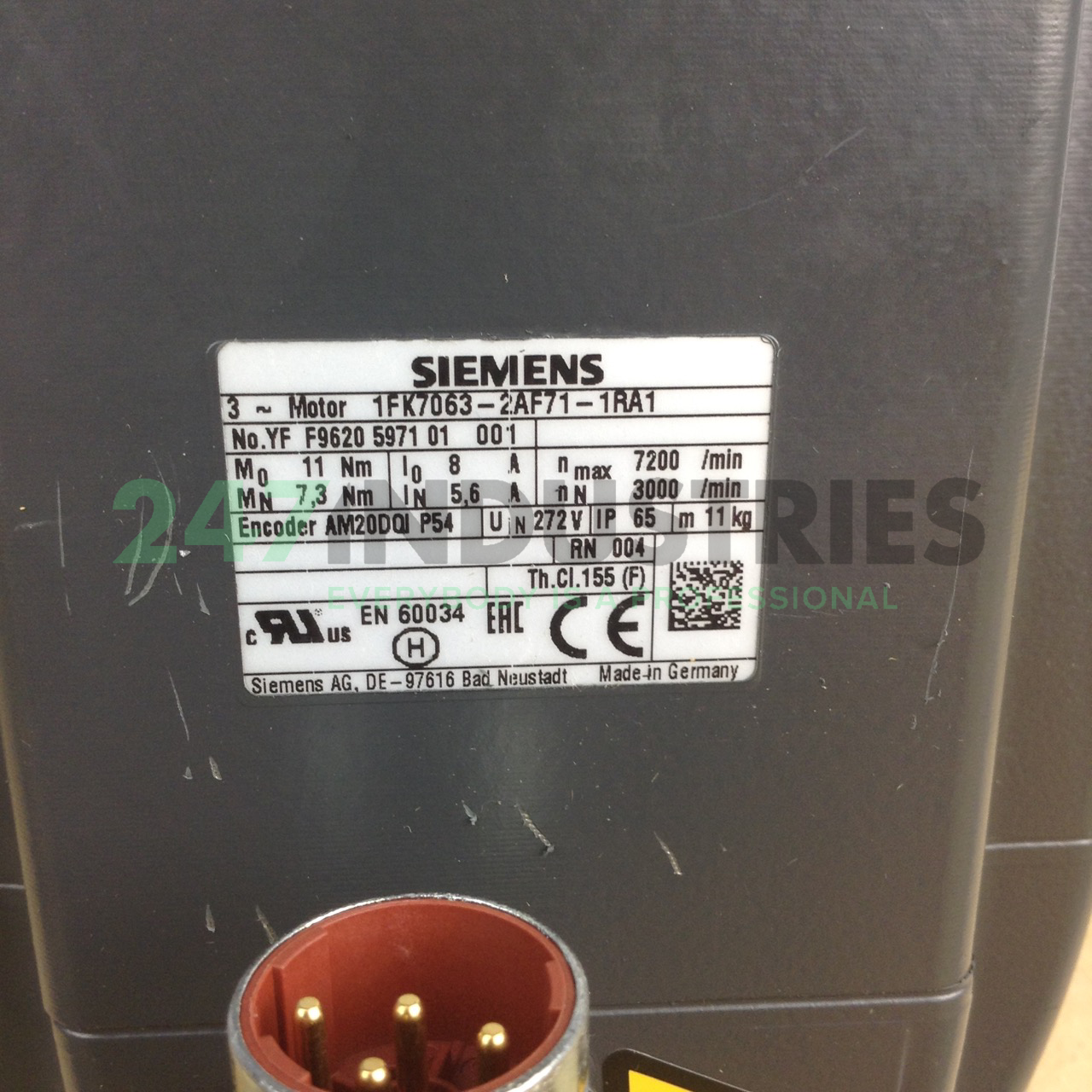

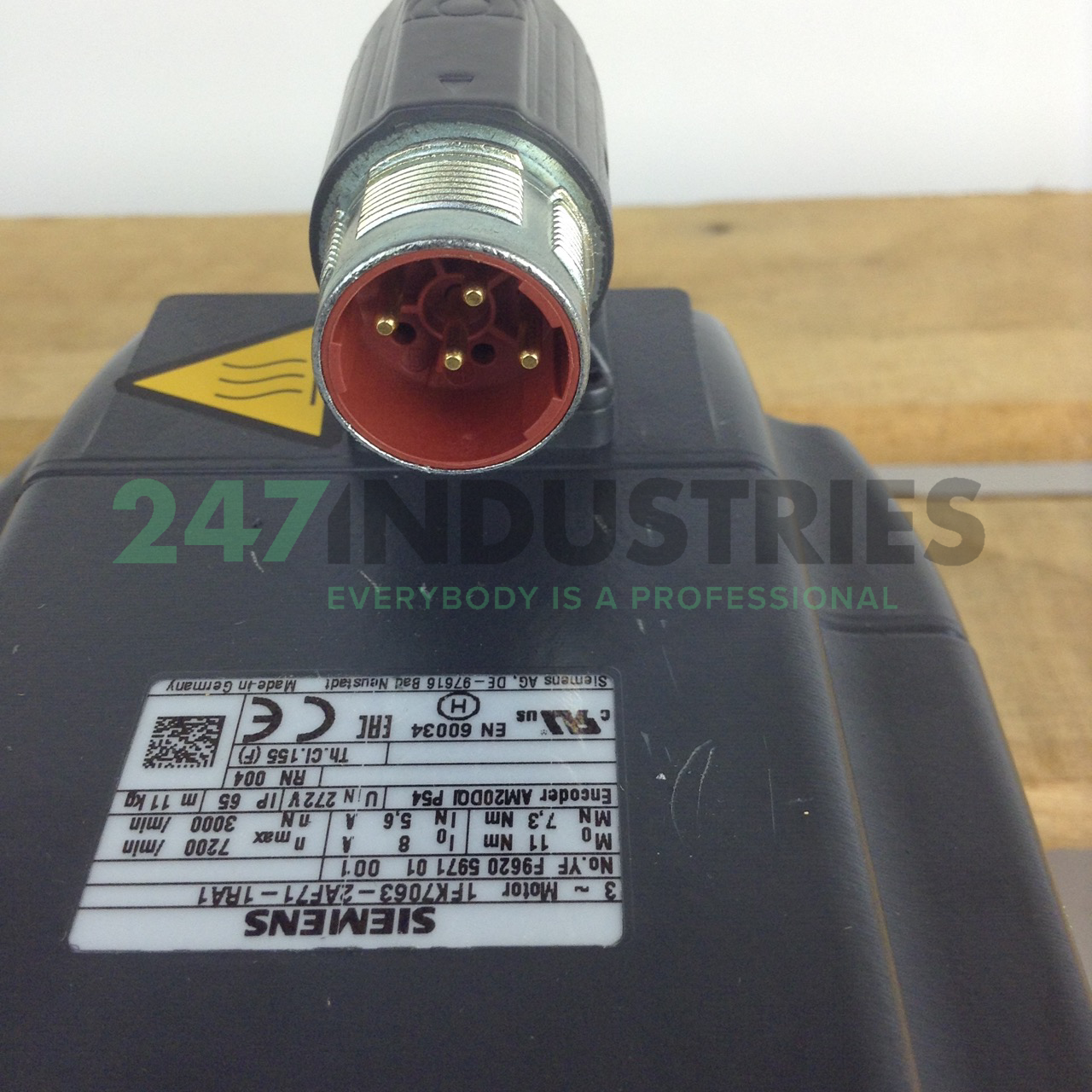

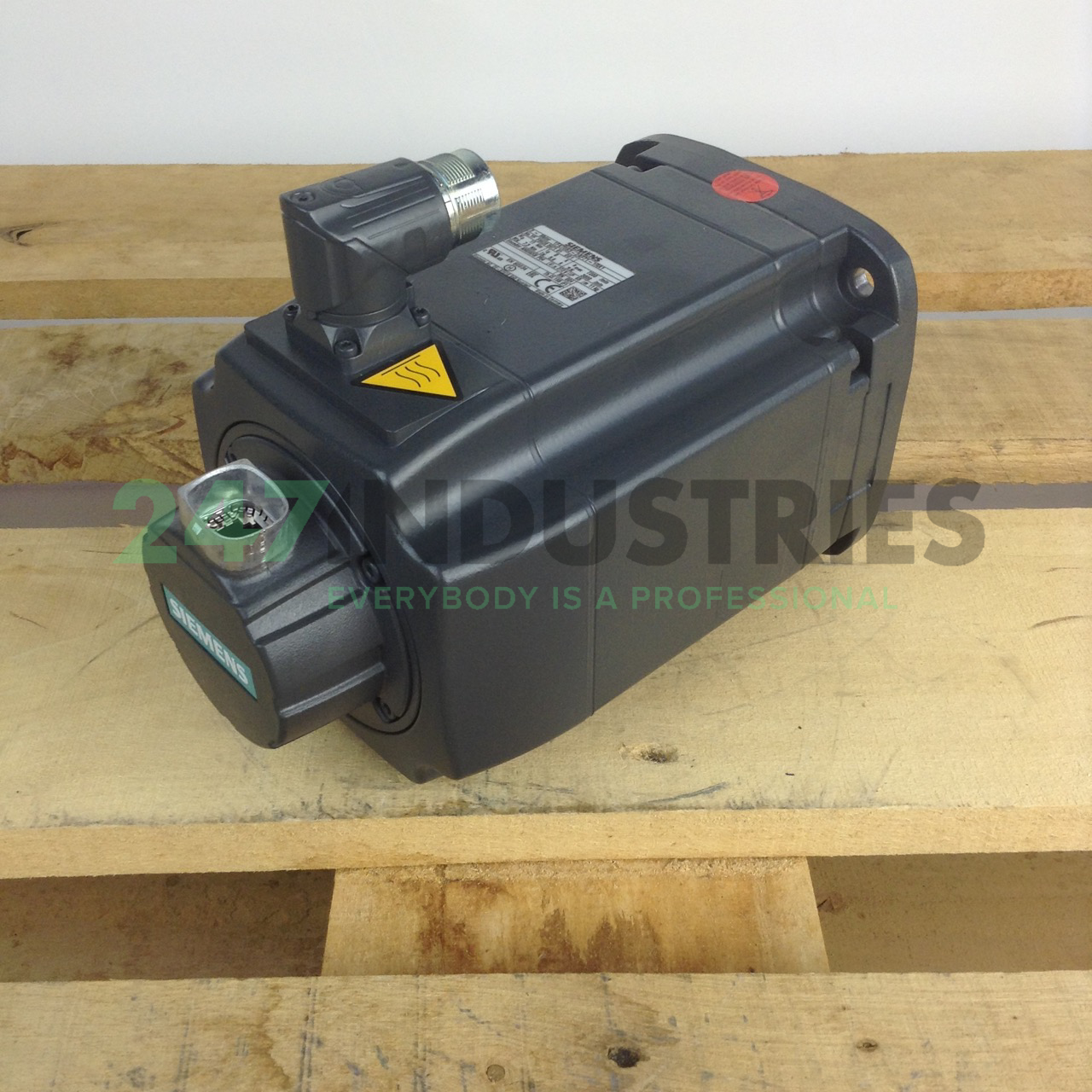

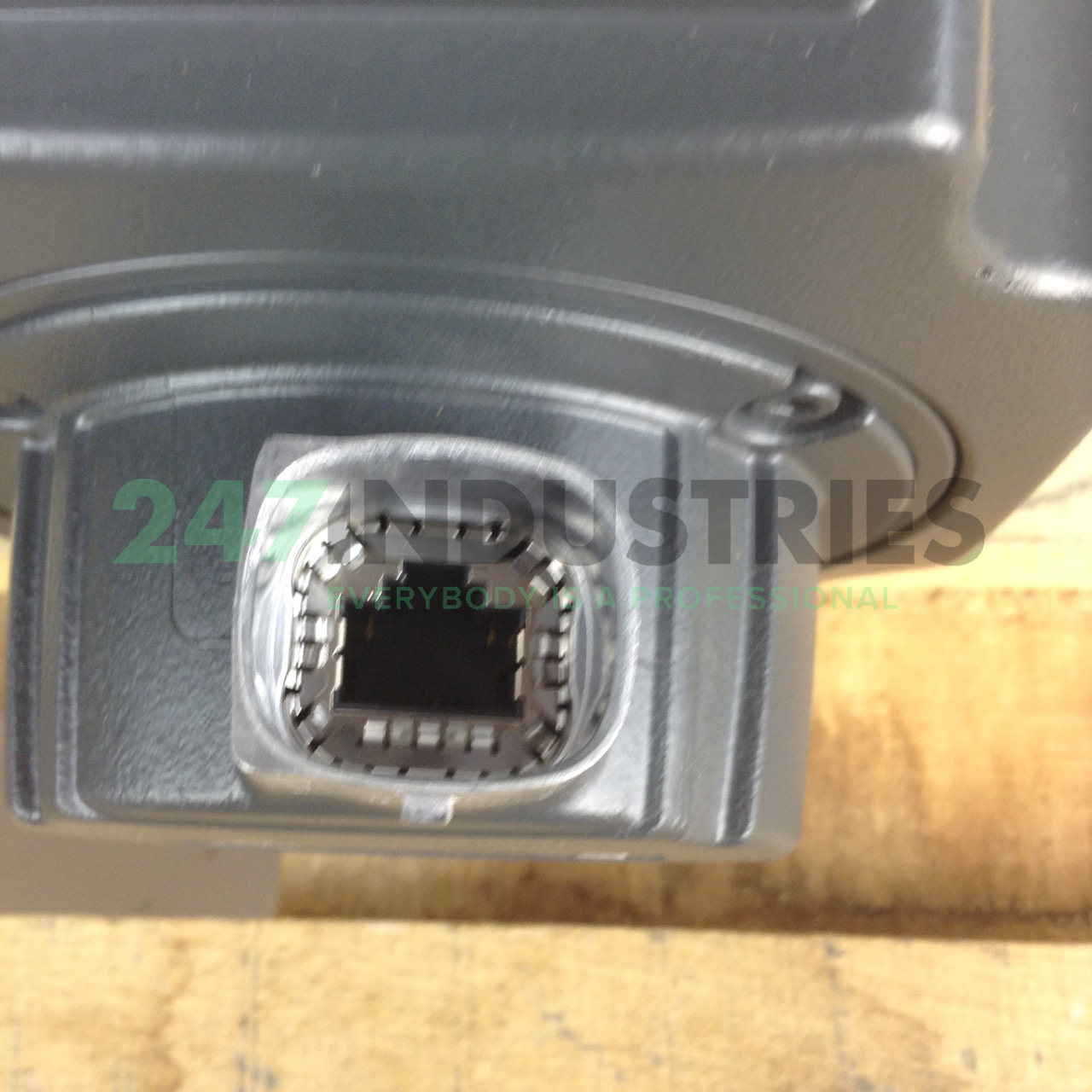

| Product Description | SIMOTICS S SYNCHRONOUS MOTORS 1FK7-CT PN=2,3 KW; UZK=600V M0=11NM (100K); NN=3000RPM; NATURAL AIR COOLING, FRAME SIZE IMB 5 (IM V1, IM V3) FLANGE 1 POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER 20 BIT + 12 BIT MULTITURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM20DQI) SHAFT WITH FITTED KEY, TOLERANCE N; W/O HOLDING BRAKE PROTECTION CLASS IP65, |
| Product family | 1FK7 for SINAMICS S120 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data |
| Price Group / Headquarter Price Group | 103 / 762 |
| List Price | Show prices |
| Customer Price | Show prices |
| Metal Factor | ------71 |
| Delivery information |
| Export Control Regulations | AL : N / ECCN : N |
| Delivery Time | 30 Day/Days |
| Net Weight (kg) | 11,101 Kg |
| Product Dimensions (W x L x H) | Not available |
| Packaging Dimension | Not available |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | Not available |
| UPC | 887621218263 |
| Commodity Code | 85015220 |
| LKZ_FDB/ CatalogID | SD.NC60KT-1FK7 |
| Product Group | 9621 |
| Country of origin | Germany |
| Compliance with the substance restrictions according to RoHS directive | sinds: 01-07-06 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Categorie voor terugname electronische materialen na gebruik | Geen terugname verplichting |
| Classifications |
| | | | Version | Classification | | eClass | 5.1 | 27-02-26-02 | | eClass | 6 | 27-02-26-02 | | eClass | 7.1 | 27-02-26-02 | | eClass | 8 | 27-02-26-02 | | eClass | 9 | 27-02-26-02 | | eClass | 9.1 | 27-02-26-02 | | UNSPSC | 14 | 39-12-10-06 | | UNSPSC | 15 | 39-12-20-03 | |
