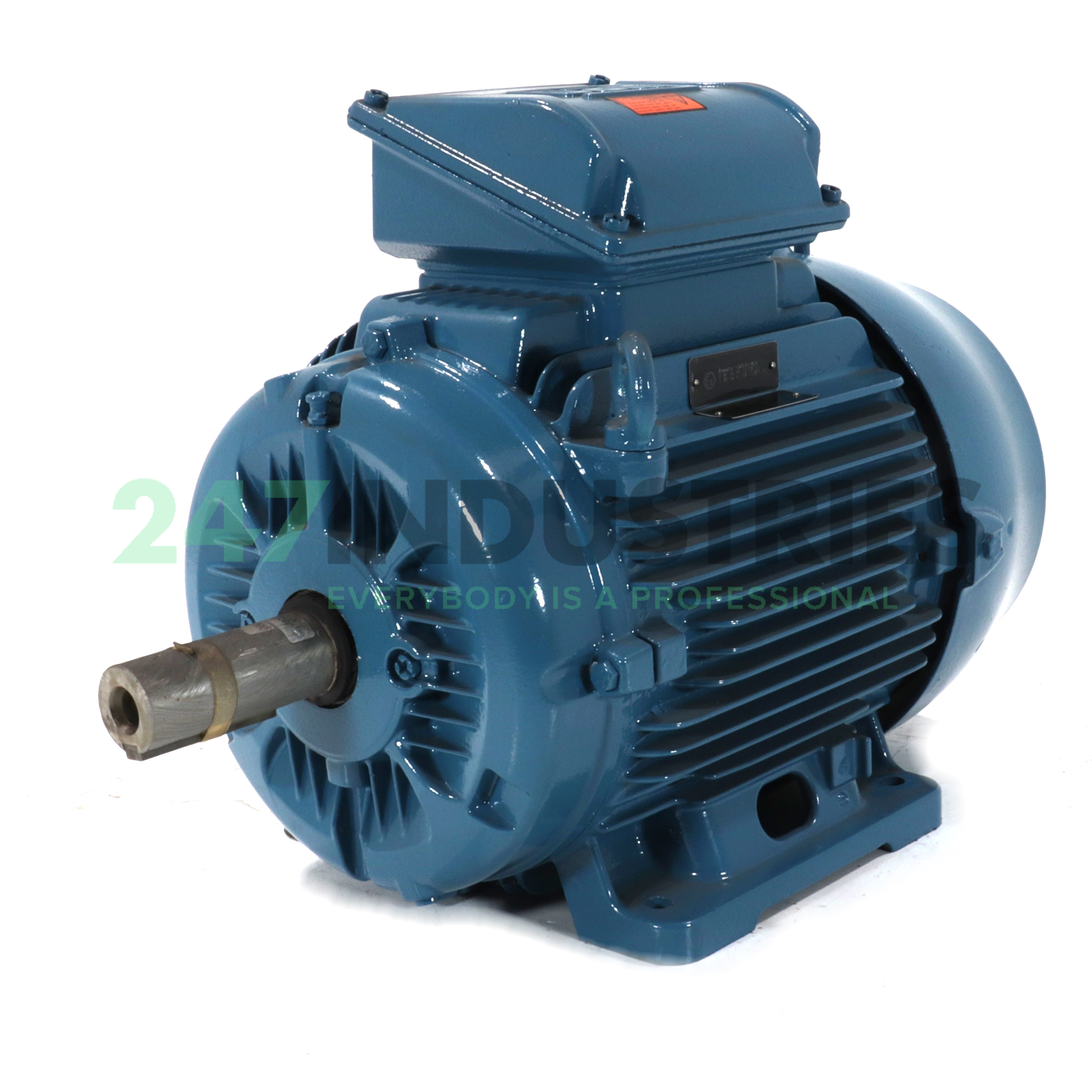

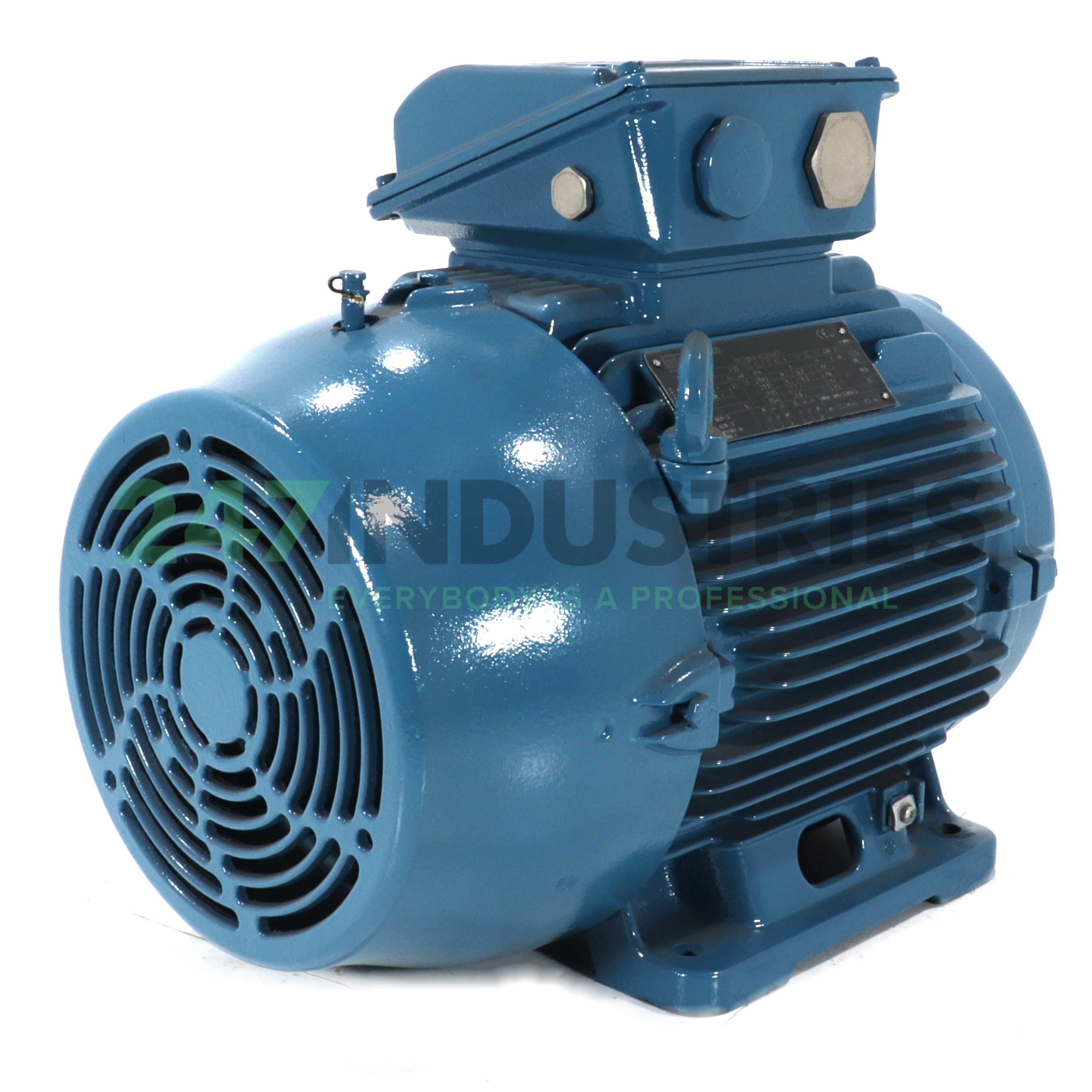

15K32CI1160M2B3 WEG

Technical details

1. Availability 0 pcs
2. Brand WEG
3. Item number 15K32CI1160M2B3 WEG
4. Category 3-Phase Motors
5. Manufacturer Part Number (MPN) 15K32CI1160M2B3
6. Weight (kg) 113
7. Rated power (kW) 15
8. Mounting B3 (foot)
9. Speed at 50Hz (rpm) 3000 / 2-Poles
10. Frequency 50/60Hz
11. IP Class IP55
12. Brake No Brake
13. Explosion safety (Atex) No protection
14. IEC Framesize 160
15. Energie efficiency IE1 = standard = EFF2
16. Voltage 380-400VD / 660-690VY
17. Housing material Cast Iron
18. IEC Framesize 160
19. Shaft diameter (mm) 42
20. Shaft length (mm) 110
21. Wedge width (mm) 12
22. Wedge length (mm) 90
23. Thread shaft bore M16
24. Shaft height, B3 mounted (mm) 160
25. Width foot holes, B3 mounted (mm) 254
26. Length foot holes, B3 mounted (mm) M=210, L=254
27. Diameter foot holes (mm) 15
28. Outer diameter flange B5/V1/B35/V3 (mm) 350
29. Diameter edge B5/V1/B35/V3 (mm) 250
30. Pitch flange holes B5/V1/B35/V3 (mm) 300
31. Number of flange holes 4
32. Diameter flange holes B5/V1/B35/V3 (mm) 18,5
33. Outer diam. flange B14/B34/V18/V19 (mm) 250
34. Diam. edge B14/B34/V18/V19 (mm) 180
35. Pitch holes flange B14/B34/V18/V19 (mm) 215
36. Thread flange holes B14/B34/V18/V19 M12
