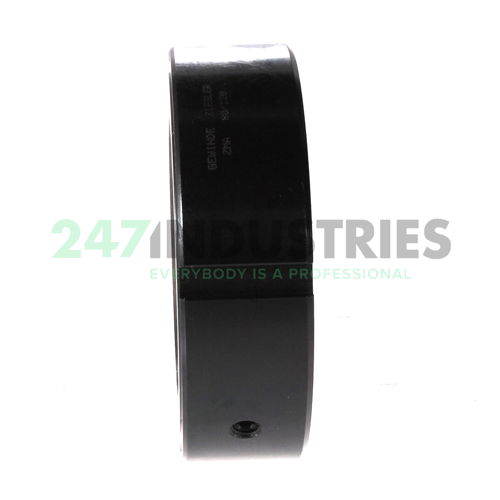

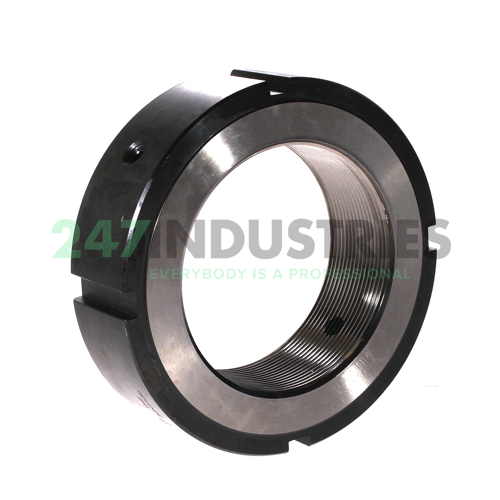

ZMA80/120 INA

All dimensions

1. Outer (D) MM 120
2. Width (B) MM 35
3. Outer (D) Inch 4.7244
4. Width (B) Inch 1.378
5. Height (H) mm 35

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number ZMA80/120 INA
4. Also known as 0004725060000

5. EAN 4047643290876
6. Category Lock Nut

Weight and Dimensions

1. Weight (kg) 1.33

Data from Schaeffler (medias)

1. Thread (d) M80X2
2. Breaking load, axial (F aB) 810000
3. Mounting torque set screw (M A) 15
4. Breakaway (M L) 285
5. Mounting torque reference (M AL) 160
6. Mass moment of inertia (M m) 44.6
7. ECLASS number 23-05-92-03
8. ECLASS2 number 23-05-92-03
9. Medias description Precision locknuts ZMA, locking pegs, radially arranged, heavy series
