ZMA65/105 INA

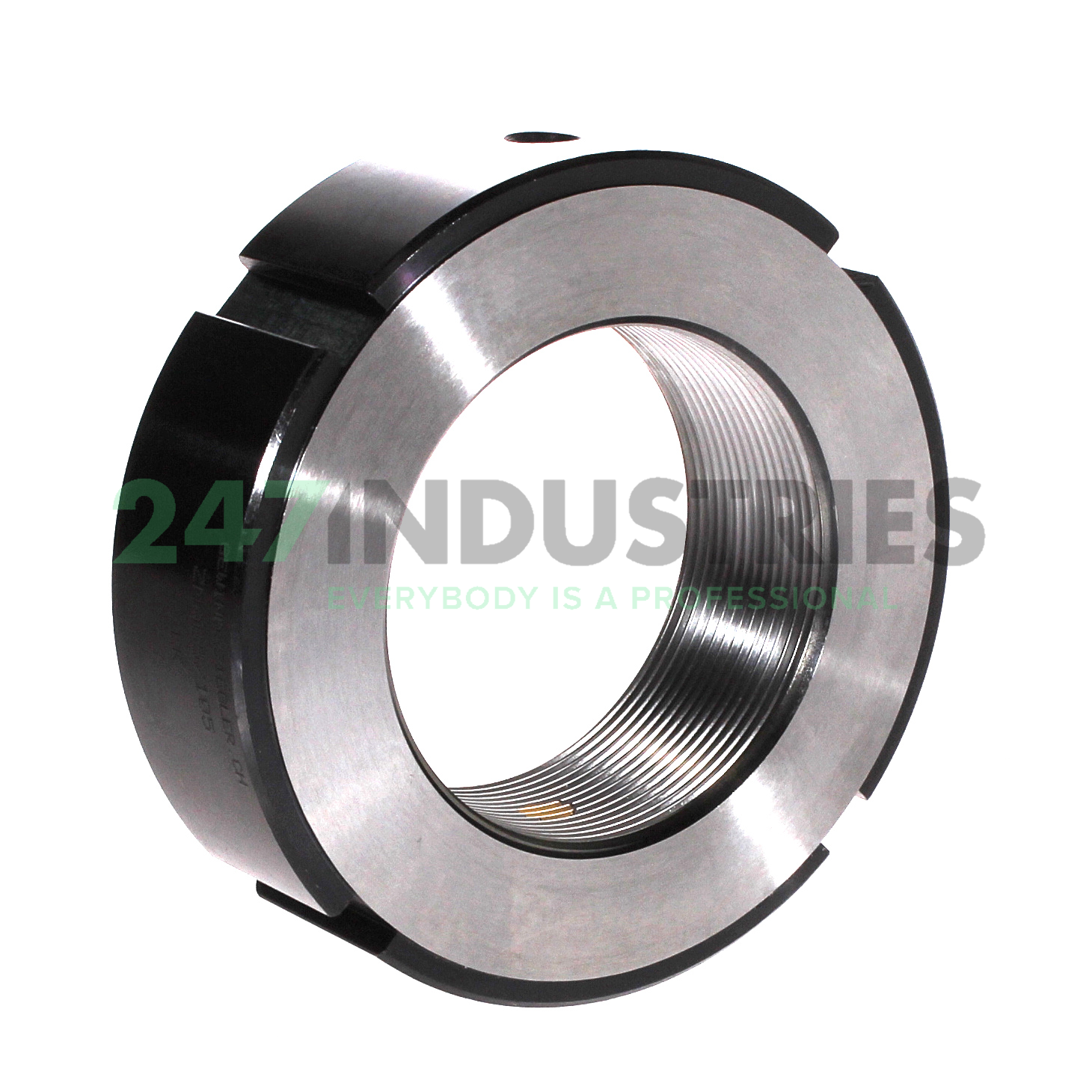

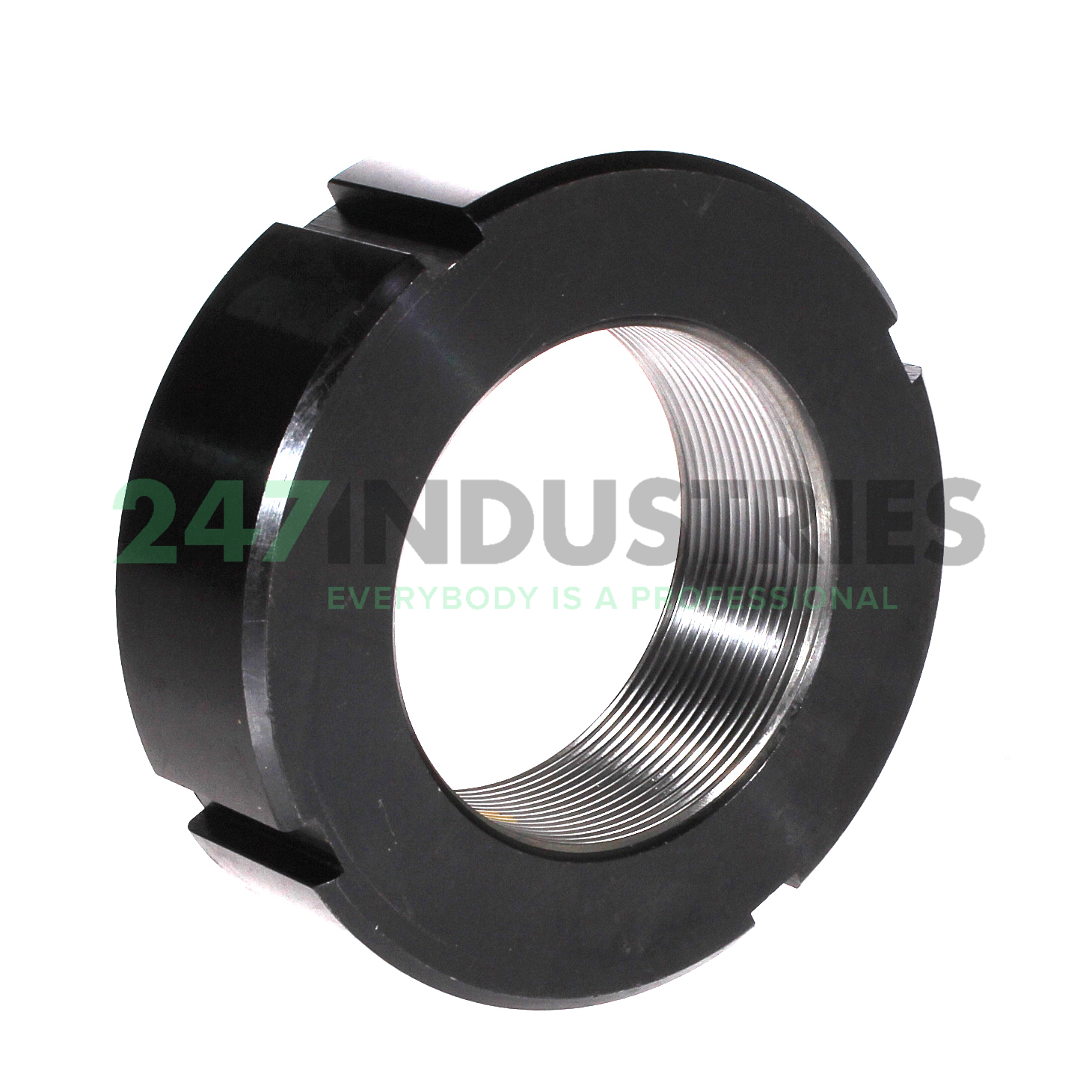

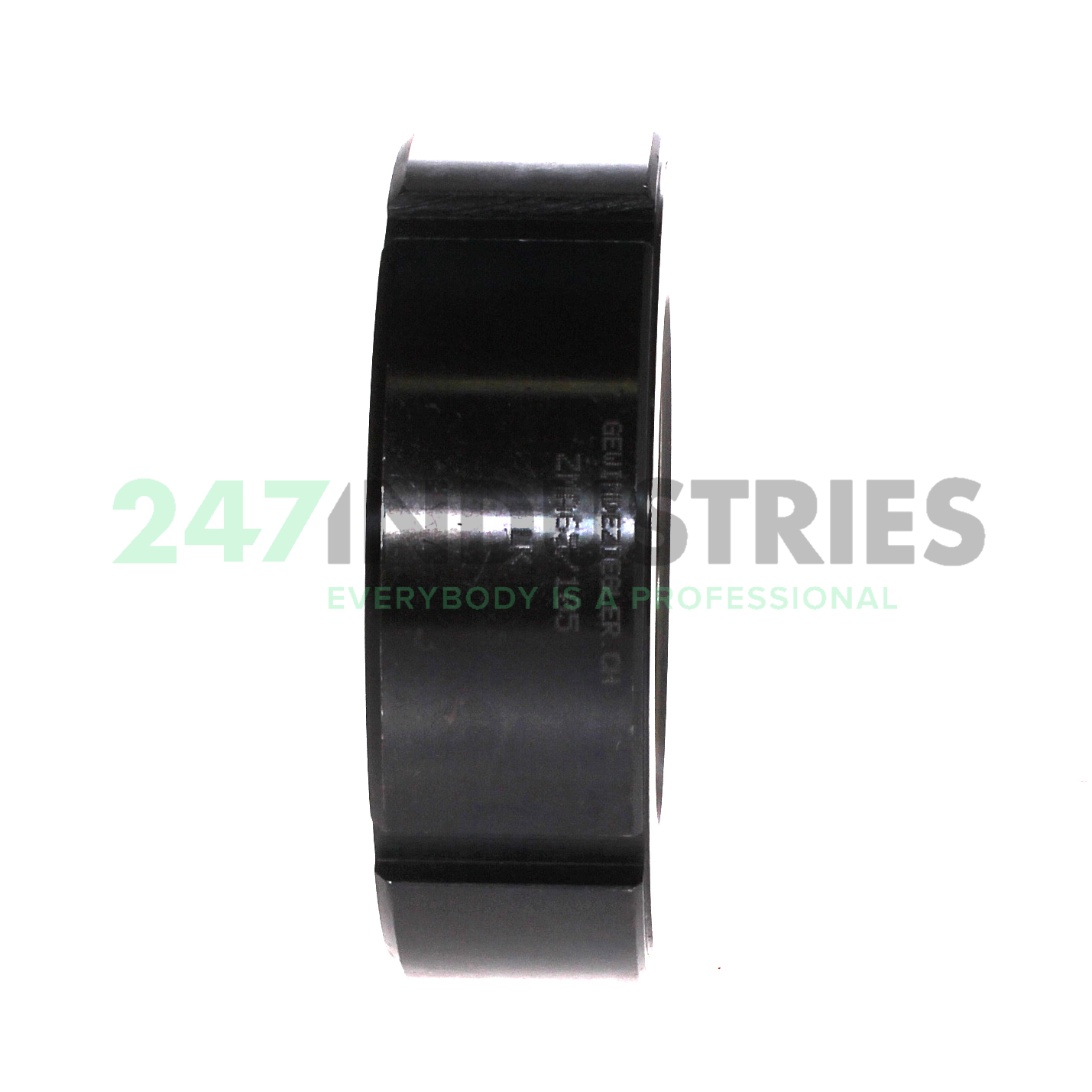

Precision locknuts ZMA, locking pegs, radially arranged, heavy series

Stock
6 pcs available for shipment on 23 May
Brand INA
Article number ZMA65/105 INA
Inside diameter 0,00mm
Outside diameter 105,00mm
Width 32,00mm
Product description
Read more Show less
Help with this product

Downloads and links

Similar to: ZMA65/105 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 0,00
  2. Outer (D) MM 105,00
  3. Width (B) MM 32,00
  4. Inner (d) Inch 0.0000
  5. Outer (D) Inch 4.1339
  6. Width (B) Inch 1.2598
  7. Height (H) mm 32,00

Technical details

  1. Availability 6 pcs on 23 May
  2. Brand INA
  3. Item number ZMA65/105 INA
  4. Also known as 0017317930000
  5. EAN 4012802430318
  6. Category Lock Nut

Weight and Dimensions

  1. Weight (kg) 1.21

Data from Schaeffler (medias)

  1. Thread (d) M65X2
  2. Breaking load, axial (F aB) "750000.0000"
  3. Mounting torque set screw (M A) "15.0000"
  4. Breakaway (M L) "200.0000"
  5. Mounting torque reference (M AL) "120.0000"
  6. Mass moment of inertia (M m) "25.6000"
  7. ECLASS number 23-05-92-03
  8. ECLASS2 number 23-05-92-03
  9. Medias description Precision locknuts ZMA, locking pegs, radially arranged, heavy series

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
