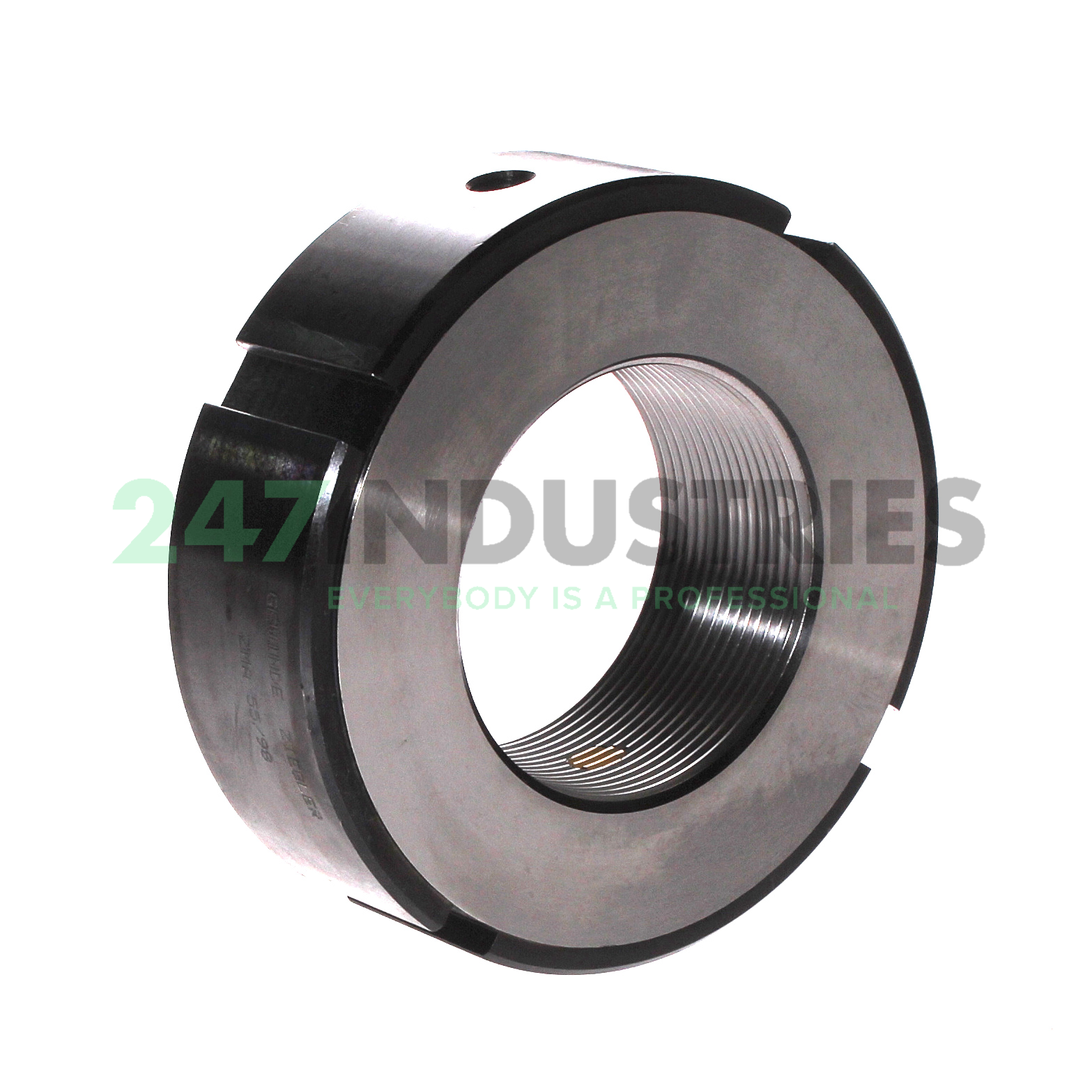

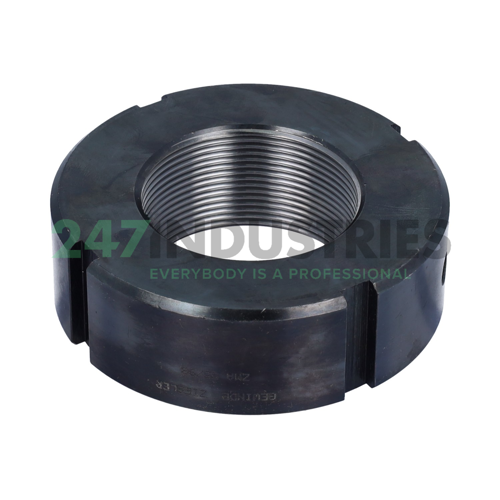

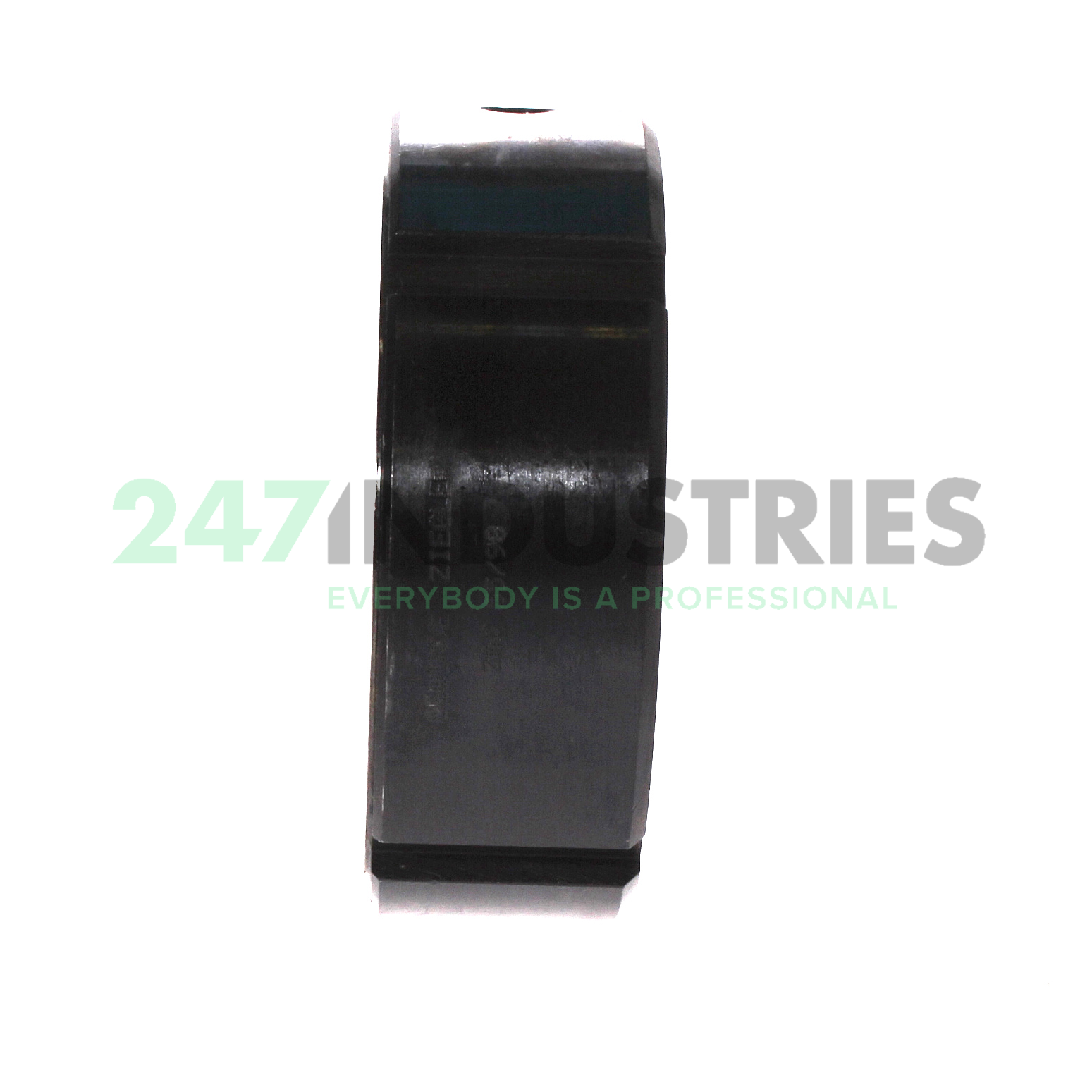

ZMA55/98 INA

All dimensions

1. Inner (d) MM 0,00
2. Outer (D) MM 98,00
3. Width (B) MM 32,00
4. Inner (d) Inch 0.0000
5. Outer (D) Inch 3.8583
6. Width (B) Inch 1.2598
7. Height (H) mm 32,00

Technical details

1. Availability 9 pcs
2. Brand INA
3. Item number ZMA55/98 INA
4. Also known as 0017317770000

5. EAN 4012802443288
6. Category Lock Nut

Weight and Dimensions

1. Weight (kg) 1.17

Data from Schaeffler (medias)

1. Thread (d) M55X2
2. Breaking load, axial (F aB) "620000.0000"
3. Mounting torque set screw (M A) "15.0000"
4. Breakaway (M L) "150.0000"
5. Mounting torque reference (M AL) "95.0000"
6. Mass moment of inertia (M m) "20.5000"
7. ECLASS number 23-05-92-03
8. ECLASS2 number 23-05-92-03
9. Medias description Precision locknuts ZMA, locking pegs, radially arranged, heavy series
