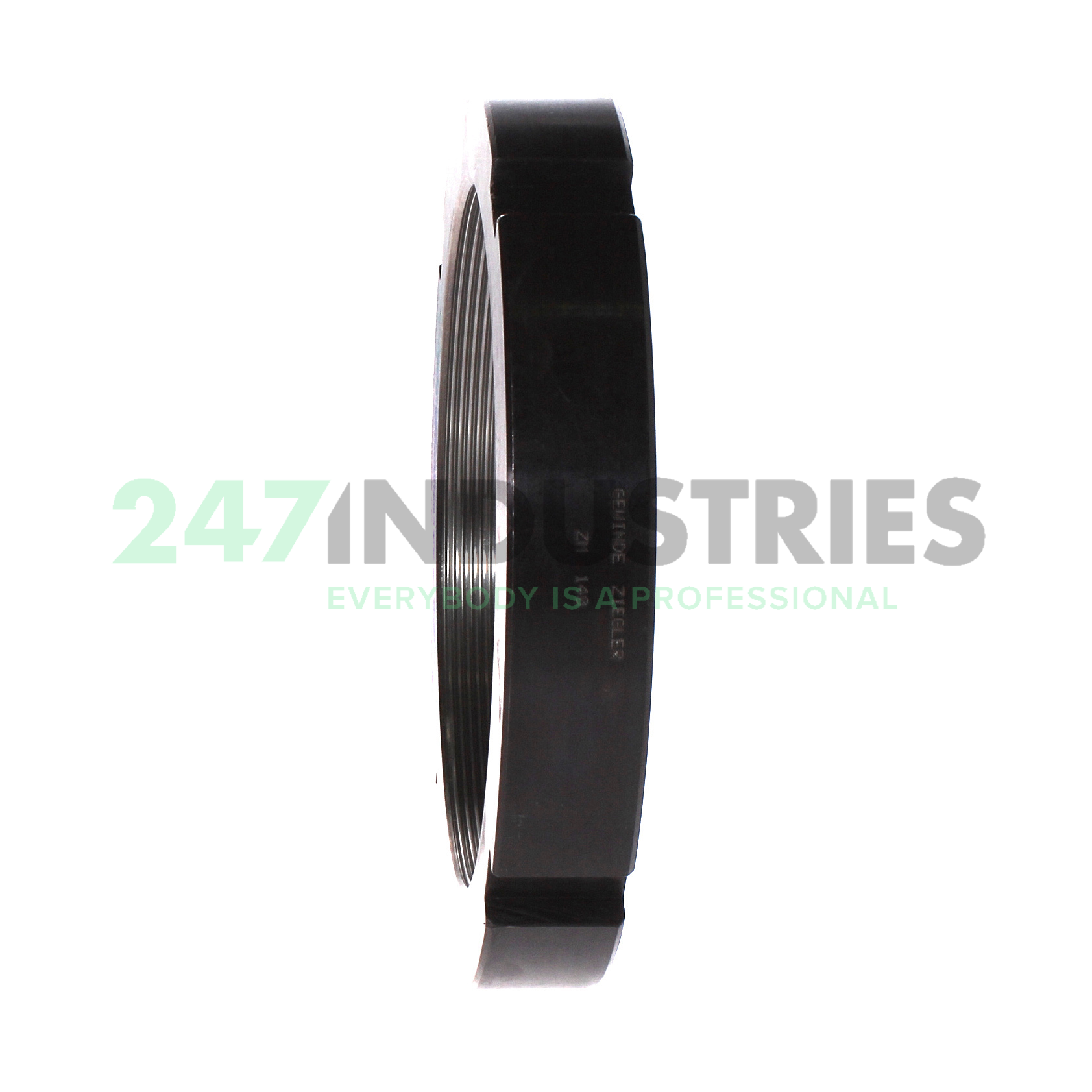

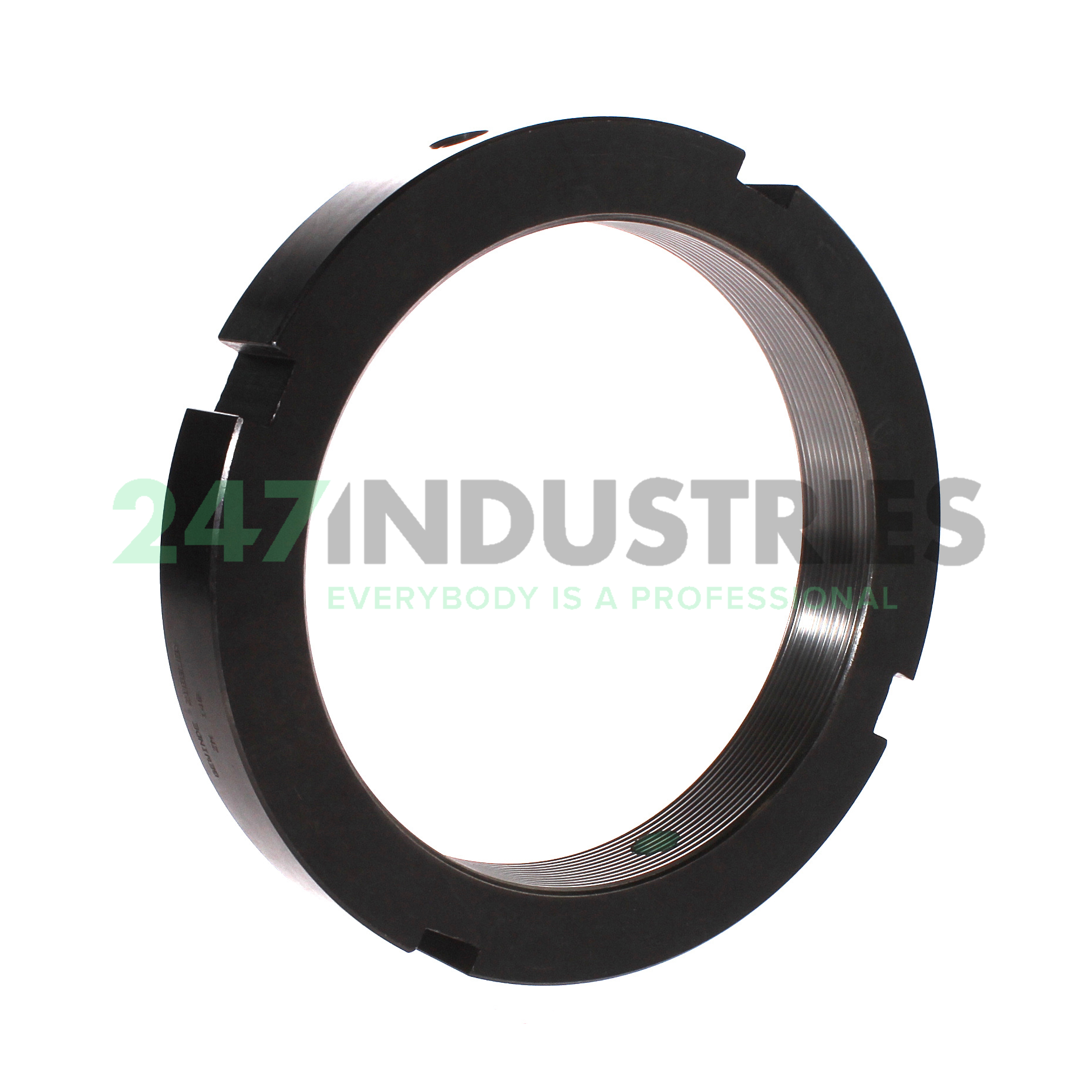

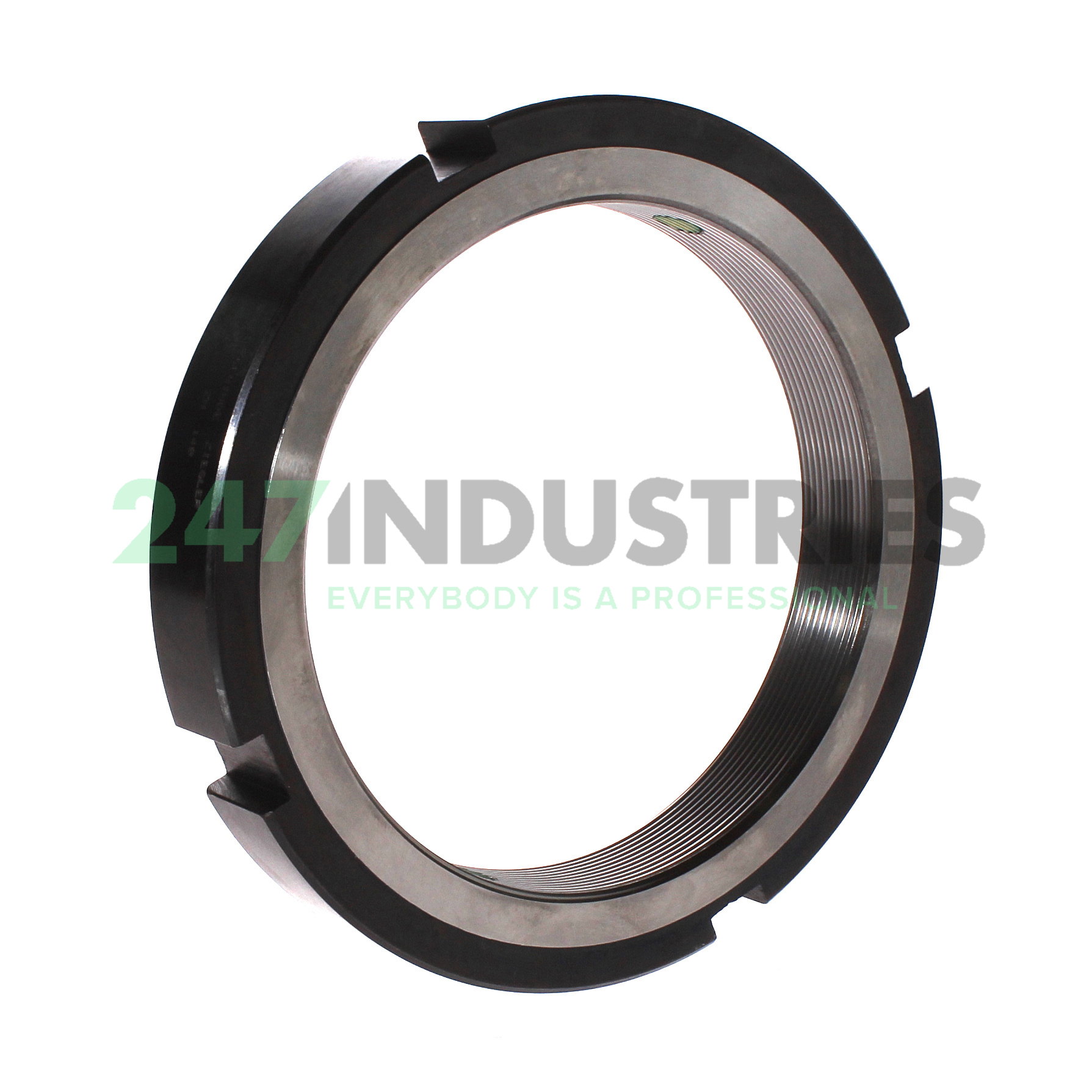

ZM140 INA

All dimensions

1. Inner (d) MM 140,00
2. Outer (D) MM 180,00
3. Width (B) MM 26,00
4. Inner (d) Inch 5.5118
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.0236
7. Height (H) mm 26,00

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number ZM140 INA
4. Also known as 0001942800000

5. EAN 4047643290838
6. Category Lock Nut

Weight and Dimensions

1. Weight (kg) 1.85

Data from Schaeffler (medias)

1. Thread (d) M140x2
2. Breaking load, axial (F aB) "690000.0000"
3. Mounting torque set screw (M A) "38.0000"
4. Breakaway (M L) "800.0000"
5. Mounting torque reference (M AL) "600.0000"
6. Mass moment of inertia (M m) "133.0000"
7. ECLASS number 23-05-92-03
8. ECLASS2 number 23-05-92-03
9. Medias description Precision locknut ZM, accessory ZM..
