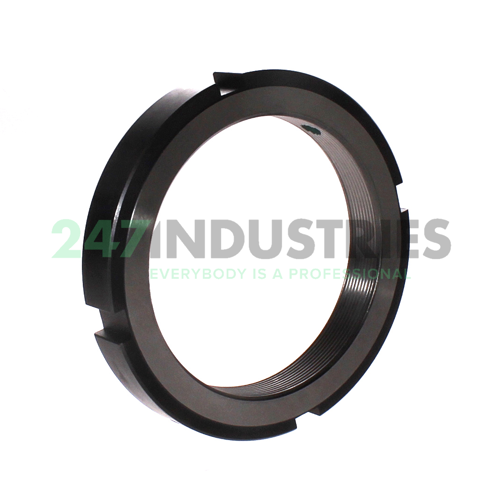

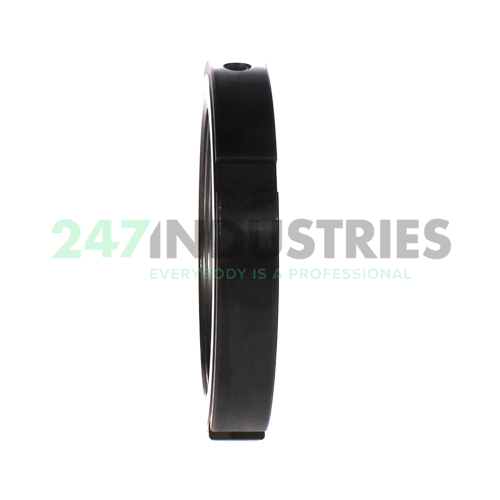

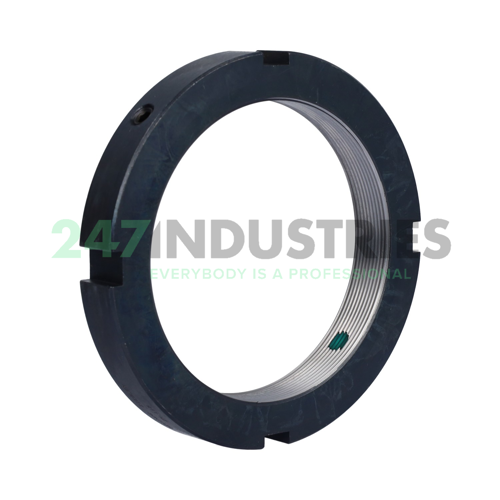

ZM115 INA

All dimensions

1. Inner (d) MM 0,00
2. Outer (D) MM 150,00
3. Width (B) MM 22,00
4. Inner (d) Inch 0.0000
5. Outer (D) Inch 5.9055
6. Width (B) Inch 0.8661
7. Height (H) mm 22,00

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number ZM115 INA
4. Also known as 0017313350000

5. EAN 4012802427295
6. Category Lock Nut

Weight and Dimensions

1. Weight (kg) 1.13

Data from Schaeffler (medias)

1. Thread (d) M115x2
2. Breaking load, axial (F aB) "550000.0000"
3. Mounting torque set screw (M A) "20.0000"
4. Breakaway (M L) "550.0000"
5. Mounting torque reference (M AL) "400.0000"
6. Mass moment of inertia (M m) "56.2000"
7. ECLASS number 23-05-92-03
8. ECLASS2 number 23-05-92-03
9. Medias description Precision locknut ZM, accessory ZM..
