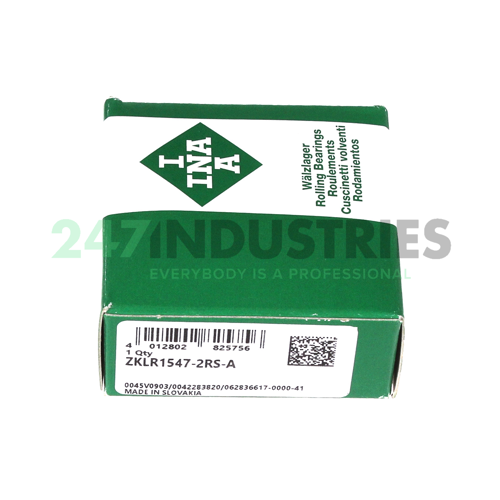

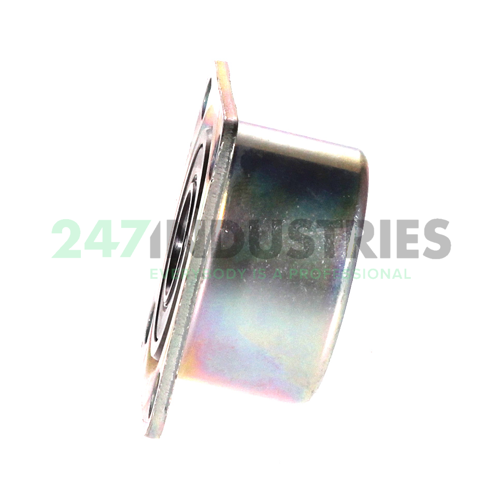

ZKLR1547-2RS-A INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 38,45
3. Width (B) MM 24
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.5138
6. Width (B) Inch 0.9449
7. Outside diameter bearing pot (D) mm 38,45
8. Width inner ring (B) mm 22

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

1. Availability 6 pcs
2. Brand INA
3. Item number ZKLR1547-2RS-A INA
4. Also known as 0628366170000

5. EAN 4012802825756
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.14

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 10700
2. Radial Dynamic Load Rating Cr (N) 16700
3. Axial Static Load Rating C0a (N) 22400
4. Axial Dynamic Load Rating Ca (N) 16400
5. ECLASS number 23-05-16-02
6. ECLASS2 number 23-05-16-02
7. Medias description Angular contact ball bearing units ZKLR..-2RS, double direction, for screw mounting, lip seals on both sides
