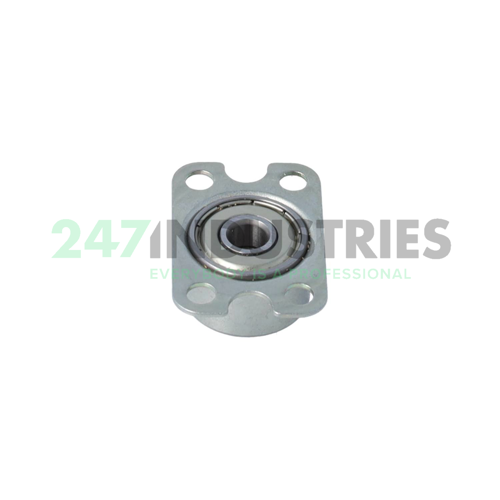

ZKLR0624-2Z INA

All dimensions

1. Inner (d) MM 6,00
2. Outer (D) MM 20,50
3. Width (B) MM 13,00
4. Inner (d) Inch 0.2362
5. Outer (D) Inch 0.8071
6. Width (B) Inch 0.5118
7. Outside diameter bearing pot (D) mm 20,50
8. Width inner ring (B) mm 12,00

Suffix description

1. 2Z Gap Seals At Both Sides Of The Bearing

Technical details

1. Availability 10 pcs
2. Brand INA
3. Item number ZKLR0624-2Z INA
4. Also known as 0041972320000

5. EAN 4054369574050
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.023

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "1650.0000"
2. Radial Static Load Rating C0r (N) 2060
3. Radial Dynamic Load Rating Cr (N) 4100
4. Axial Static Load Rating C0a (N) 1520
5. Basic static load rating, axial (C 0a) "1520.0000"
6. Basic static load rating, radial (C 0r) "2060.0000"
7. Axial Dynamic Load Rating Ca (N) 1650
8. ECLASS number 23-05-16-02
9. ECLASS2 number 23-05-16-02
10. Medias description Angular contact ball bearing units ZKLR..-2Z, double direction, for screw mounting, gap seals on both sides
