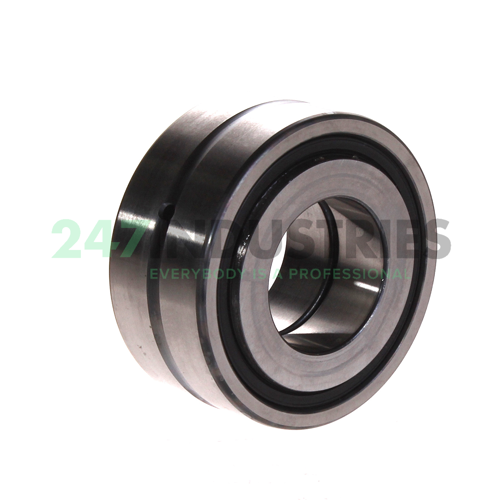

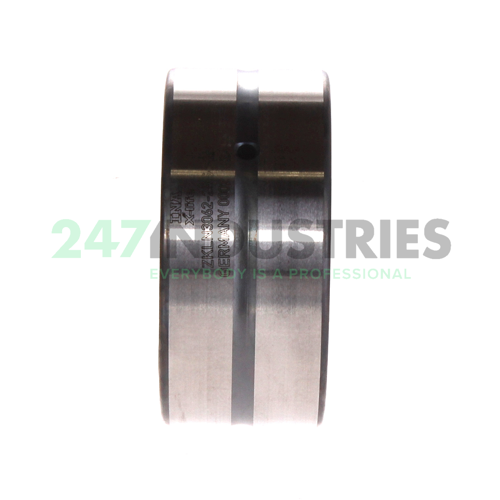

ZKLN3062-2RS-XL INA

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 28,00
4. Inner (d) Inch
5. Outer (D) Inch
6. Width (B) Inch
7. Width (b) mm 28,00

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. XL X-Life

Technical details

1. Availability 26 pcs
2. Brand INA
3. Item number ZKLN3062-2RS-XL INA
4. Also known as 0016325660000
   BEAS030062-2RS
   BEAS30/62C 7 P60
   ZKLN3062-2RS

5. EAN 4012802079029
6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

1. Weight (kg) 0.39

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision P4 Precision (Higher than P5)

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "29000.0000"
2. Axial Static Load Rating C0a (N) 64000
3. Basic static load rating, axial (C 0a) "64000.0000"
4. Axial Dynamic Load Rating Ca (N) 32000
5. Limiting speed for grease lubrication (n G Grease) "5000.0000"
6. Thermally safe operating speed (n ϑ) "2200.0000"
7. ECLASS number 23-05-10-02
8. ECLASS2 number 23-05-10-02
9. Medias description Axial angular contact ball bearing ZKLN..-2RS-XL, double direction, no screw mounting
