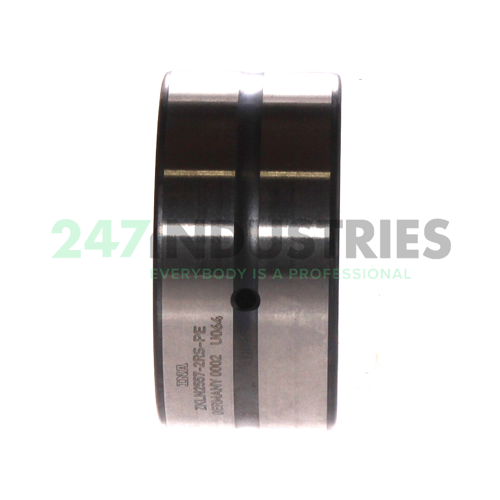

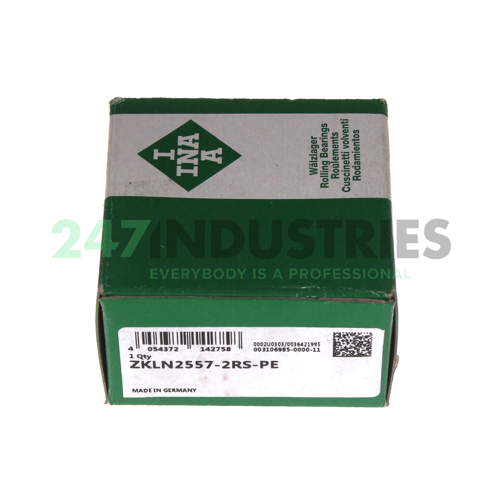

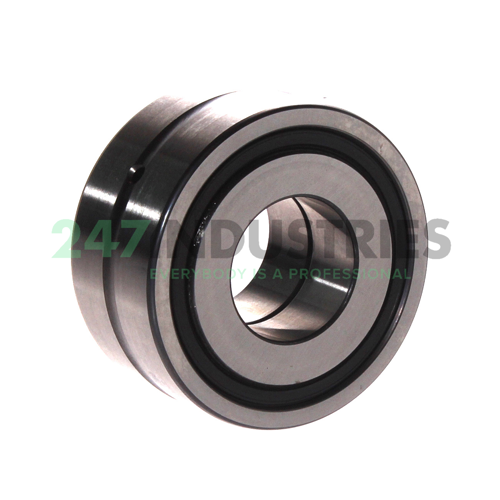

ZKLN2557-2RS-PE INA

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 57,00
3. Width (B) MM 28,00
4. Inner (d) Inch
5. Outer (D) Inch
6. Width (B) Inch
7. Width (b) mm 28,00

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
2. PE Enlarged Diameter Tolerance And Axial Runout To P5 Tolerance Class For Radial Bearings

Technical details

1. Availability 59 pcs
2. Brand INA
3. Item number ZKLN2557-2RS-PE INA
4. Also known as 0031069850000
   BEAS025057-2RS/PE
   BEAS25/57C SQ P60

5. EAN 4012802079012
6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

1. Weight (kg) 0.34

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision P5 Precision (Higher than P6)

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "27500.0000"
2. Axial Static Load Rating C0a (N) 55000
3. Basic static load rating, axial (C 0a) "55000.0000"
4. Axial Dynamic Load Rating Ca (N) 27500
5. Limiting speed for grease lubrication (n G Grease) "5700.0000"
6. Thermally safe operating speed (n ϑ) "2600.0000"
7. ECLASS number 23-05-10-02
8. ECLASS2 number 23-05-10-02
9. Medias description Axial angular contact ball bearings ZKLN..-2RS-PE, Increased tolerances, double direction, lip seals on both sides

Downloads and links

1. Link to manufacturer Link to manufacturer
