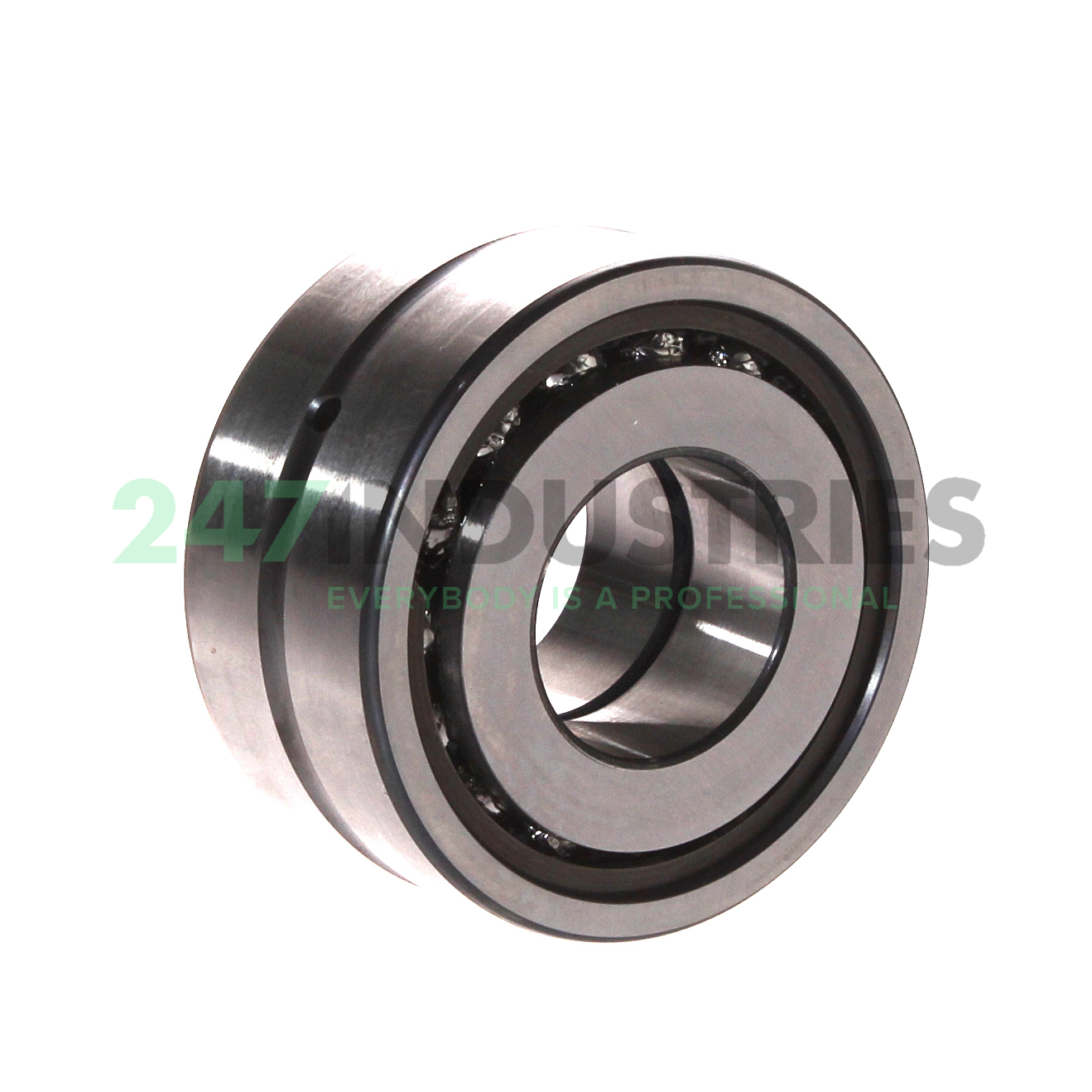

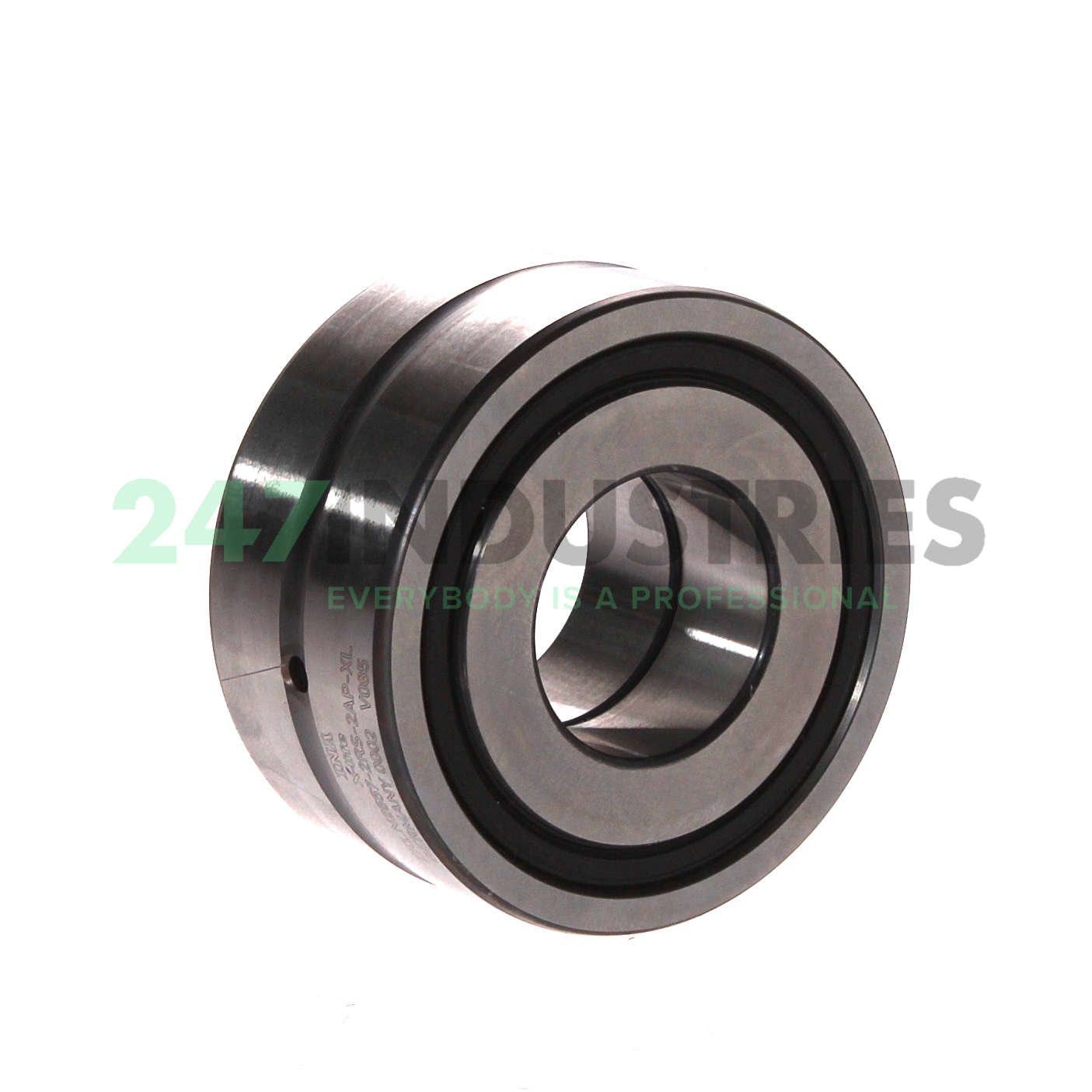

ZKLN2557-2RS-2AP-XL INA

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 57,00
3. Width (B) MM 56,00
4. Width (b) mm 56,00

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. 2AP Matched Pair (Twice The Number Of Bearings, Than Without 2AP)
3. XL X-Life

Technical details

1. Availability 14 pcs
2. Brand INA
3. Item number ZKLN2557-2RS-2AP-XL INA
4. Also known as 0011714960000
   ZKLN2557-2RS-2AP

5. EAN 4012802113556
6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

1. Weight (kg) 0.68

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Matched Pair

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "44500.0000"
2. Axial Static Load Rating C0a (N) 111000
3. Basic static load rating, axial (C 0a) "111000.0000"
4. Axial Dynamic Load Rating Ca (N) 49000
5. Limiting speed for grease lubrication (n G Grease) "5700.0000"
6. Thermally safe operating speed (n ϑ) "2600.0000"
7. ECLASS number 23-05-10-02
8. ECLASS2 number 23-05-10-02
9. Medias description Axial angular contact ball bearings ZKLN..-2RS-2AP, matched pair, double direction, lip seals on both sides
