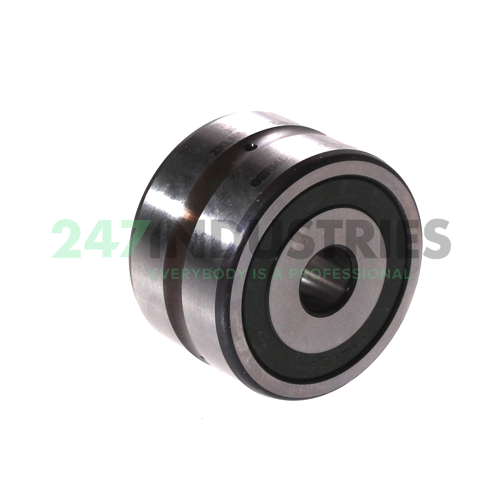

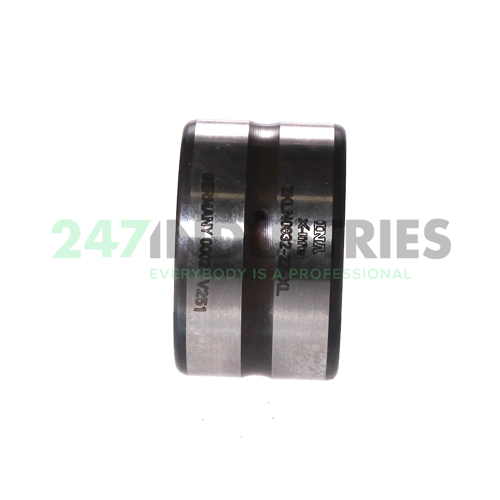

ZKLN0832-2Z-XL INA

All dimensions

1. Inner (d) MM 8,00
2. Outer (D) MM 32,00
3. Width (B) MM 20,00
4. Width (b) mm 20,00

Suffix description

1. 2Z Gap Seals At Both Sides Of The Bearing
2. XL X-Life

Technical details

1. Availability 13 pcs
2. Brand INA
3. Item number ZKLN0832-2Z-XL INA
4. Also known as 0005109710000
   BEAS008032-2Z
   BEAS8/32Z 7 P60
   ZKLN0832-2Z

5. EAN 4054365643903
6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

1. Weight (kg) 0.09

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision P4 Precision (Higher than P5)

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "13800.0000"
2. Axial Static Load Rating C0a (N) 16300
3. Basic static load rating, axial (C 0a) "16300.0000"
4. Axial Dynamic Load Rating Ca (N) 13800
5. Limiting speed for grease lubrication (n G Grease) "15500.0000"
6. Thermally safe operating speed (n ϑ) "9500.0000"
7. ECLASS number 23-05-10-02
8. ECLASS2 number 23-05-10-02
9. Medias description Axial angular contact ball bearings ZKLN..-2Z, double direction, gap seals on both sides
