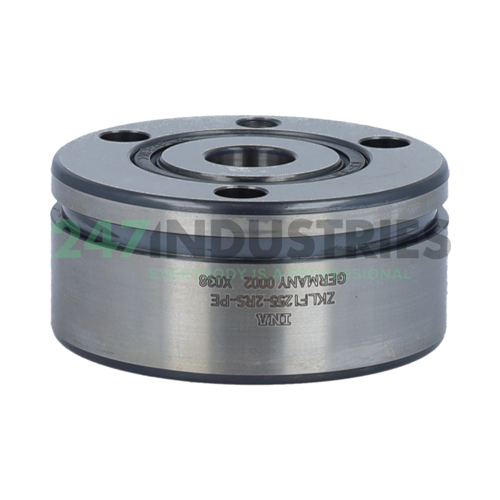

ZKLF1255-2RS-PE INA

All dimensions

1. Inner (d) MM 12,00
2. Outer (D) MM 55,00
3. Width (B) MM 25,00
4. Width (b) mm 25,00

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
2. PE Enlarged Diameter Tolerance And Axial Runout To P5 Tolerance Class For Radial Bearings

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number ZKLF1255-2RS-PE INA
4. Also known as 0021866160000
   BEAM012055-2RS/PE

5. EAN 4012802078602
6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

1. Weight (kg) 0.37

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision P5 Precision (Higher than P6)

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "17100.0000"
2. Axial Static Load Rating C0a (N) 24700
3. Basic static load rating, axial (C 0a) "25000.0000"
4. Axial Dynamic Load Rating Ca (N) 16900
5. Limiting speed for grease lubrication (n G Grease) "9200.0000"
6. Thermally safe operating speed (n ϑ) "3800.0000"
7. ECLASS number 23-05-10-02
8. ECLASS2 number 23-05-10-02
9. Medias description Axial angular contact ball bearing ZKLF..-2RS-PE, double direction, screw mounting
